DRV8334-Q1
  • DRV8334-Q1
  • DRV8334-Q1
  • DRV8334-Q1
  • DRV8334-Q1

DRV8334-Q1

ACTIVE

Automotive 12V and 24V battery 3-phase gate driver unit with accurate current sensing

Texas Instruments DRV8334-Q1 Product Info

1 April 2026 0

Parameters

Rating

Automotive

Architecture

Gate driver

Control interface

1xPWM, 3xPWM, 6xPWM, SPI

Gate drive (A)

1

Vs (min) (V)

4.5

Vs ABS (max) (V)

65

Features

Current sense Amplifier, Phase Comparators, SPI/I2C, Watchdog timer

Operating temperature range (°C)

-40 to 150

TI functional safety category

Functional Safety-Compliant

Package

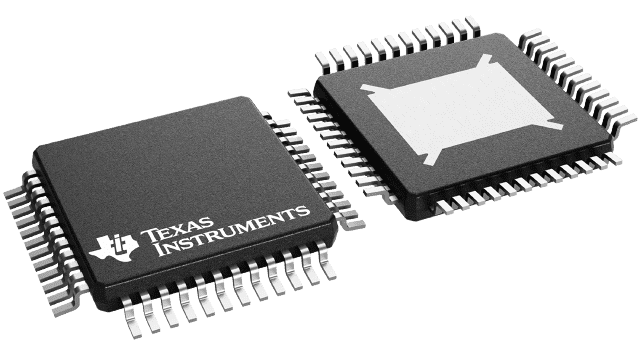

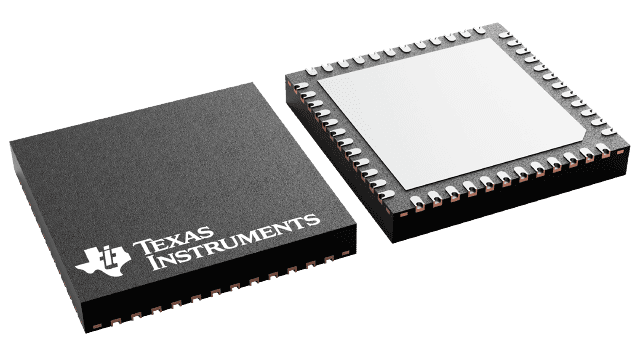

HTQFP (PHP)-48-81 mm² 9 x 9

Features

  • AEC-Q100 qualified for automotive applications. Temperature options:
    • DRV8334EPHP: –40°C to +150°C, TA
    • DRV8334QPHP: –40°C to +125°C,TA
  • Three phase half-bridge gate driver
    • Drives six N-channel MOSFETs (NMOS)
    • 4.5 to 60V wide operating voltage range
    • Bootstrap architecture for high-side gate driver
    • Strong GVDD charge pump to support up to 50mA average gate switching current enables driving 400nC MOSFETs at 20kHz
    • Trickle charge pump to support 100% PWM duty cycle and to generate overdrive supply to drive external protection circuits
  • Smart Gate Drive architecture
    • 45-level configurable peak gate drive current up to 1000 / 2000mA (source / sink)
    • Three-step dynamic drive current control
    • Configurable soft shutdown to minimize inductive voltage spikes during overcurrent shutdown
  • Low-side Current Sense Amplifier
    • Sub-1mV low input offset across temperature
    • 9-level adjustable gain
  • SPI-based detailed configuration and diagnostics
  • DRVOFF pin to disable driver independently
  • High voltage wake up pin (nSLEEP)
  • 6x, 3x, 1x, and Independent PWM Modes
  • Supports 3.3V, and 5V Logic Inputs
  • Optional programmable OTP for reset settings
  • Integrated protection features
    • Battery and power supply voltage monitors
    • Phase feedback comparator
    • MOSFET VDS and Rsense over current monitors
    • MOSFET VGS gate fault monitors
    • Device thermal warning and shutdown
    • Fault condition indicator pin
  • AEC-Q100 qualified for automotive applications. Temperature options:
    • DRV8334EPHP: –40°C to +150°C, TA
    • DRV8334QPHP: –40°C to +125°C,TA
  • Three phase half-bridge gate driver
    • Drives six N-channel MOSFETs (NMOS)
    • 4.5 to 60V wide operating voltage range
    • Bootstrap architecture for high-side gate driver
    • Strong GVDD charge pump to support up to 50mA average gate switching current enables driving 400nC MOSFETs at 20kHz
    • Trickle charge pump to support 100% PWM duty cycle and to generate overdrive supply to drive external protection circuits
  • Smart Gate Drive architecture
    • 45-level configurable peak gate drive current up to 1000 / 2000mA (source / sink)
    • Three-step dynamic drive current control
    • Configurable soft shutdown to minimize inductive voltage spikes during overcurrent shutdown
  • Low-side Current Sense Amplifier
    • Sub-1mV low input offset across temperature
    • 9-level adjustable gain
  • SPI-based detailed configuration and diagnostics
  • DRVOFF pin to disable driver independently
  • High voltage wake up pin (nSLEEP)
  • 6x, 3x, 1x, and Independent PWM Modes
  • Supports 3.3V, and 5V Logic Inputs
  • Optional programmable OTP for reset settings
  • Integrated protection features
    • Battery and power supply voltage monitors
    • Phase feedback comparator
    • MOSFET VDS and Rsense over current monitors
    • MOSFET VGS gate fault monitors
    • Device thermal warning and shutdown
    • Fault condition indicator pin

Description

The DRV8334-Q1 is an integrated smart gate driver for 12V and 24V automotive three-phase BLDC applications. The device provides three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. The DRV8334-Q1 generates the correct gate drive voltages using an integrated bootstrap diode and a GVDD charge pump. The Smart Gate Drive architecture supports configurable peak gate drive current from 0.8mA up to 1A source and 2A sink. The DRV8334-Q1 can operate from a single power supply with a wide input range from 4.5 to 60V. A trickle charge pump enables 100% PWM duty cycle control, and provides overdrive supply voltage for external switches.

The DRV8334-Q1 provides low-side current sense amplifiers to support resistor based low-side current sensing. The low offset of the amplifiers enables the system to obtain precise motor current measurement.

A wide range of diagnostics and protection features integrated in the DRV8334-Q1 enable a robust motor drive system design and help eliminate the needs of external components. The highly configurable device response allows the device to be integrated seamlessly into a variety of system designs.

The DRV8334-Q1 is an integrated smart gate driver for 12V and 24V automotive three-phase BLDC applications. The device provides three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. The DRV8334-Q1 generates the correct gate drive voltages using an integrated bootstrap diode and a GVDD charge pump. The Smart Gate Drive architecture supports configurable peak gate drive current from 0.8mA up to 1A source and 2A sink. The DRV8334-Q1 can operate from a single power supply with a wide input range from 4.5 to 60V. A trickle charge pump enables 100% PWM duty cycle control, and provides overdrive supply voltage for external switches.

The DRV8334-Q1 provides low-side current sense amplifiers to support resistor based low-side current sensing. The low offset of the amplifiers enables the system to obtain precise motor current measurement.

A wide range of diagnostics and protection features integrated in the DRV8334-Q1 enable a robust motor drive system design and help eliminate the needs of external components. The highly configurable device response allows the device to be integrated seamlessly into a variety of system designs.
