Texas Instruments SN74LVC2G08 Product Info

Parameters

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	2
Inputs per channel	2
IOL (max) (mA)	32
IOH (max) (mA)	-32
Input type	Standard CMOS
Output type	Push-Pull
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns)
Data rate (max) (Mbps)	100
Rating	Catalog
Operating temperature range (°C)	-40 to 125

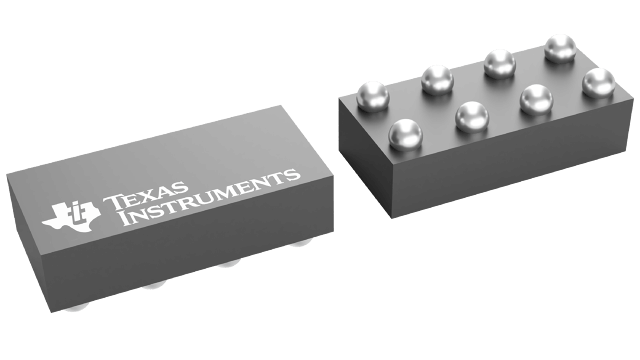

Package

DSBGA (YZP)-8-2.8125 mm² 2.25 x 1.25

Features

Available in the Texas Instruments
NanoStar™ and NanoFree™ Package
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Max t_pd of 4.7 ns at 3.3 V
Low Power Consumption, 10-µA Maximum I_CC
±24-mA Output Drive at 3.3 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
Can Be Used as a Down Translator to Translate
Inputs From a Maximum of 5.5 V Down to the V_CC
Level
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

Available in the Texas Instruments
NanoStar™ and NanoFree™ Package
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Max t_pd of 4.7 ns at 3.3 V
Low Power Consumption, 10-µA Maximum I_CC
±24-mA Output Drive at 3.3 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
Can Be Used as a Down Translator to Translate
Inputs From a Maximum of 5.5 V Down to the V_CC
Level
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

Description

This dual 2-input positive-AND gate is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC2G08 device performs the Boolean function A &times B or Y = A + B in positive logic.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For all available packages, see the orderable addendum at the end of the data sheet.

This dual 2-input positive-AND gate is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC2G08 device performs the Boolean function A &times B or Y = A + B in positive logic.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For all available packages, see the orderable addendum at the end of the data sheet.
