DP83825I
  • DP83825I
  • DP83825I

DP83825I

ACTIVE

Smallest form factor (3-mm by 3-mm), low-power 10/100-Mbps Ethernet PHY transceiver with 50-MHz c

Texas Instruments DP83825I Product Info

1 April 2026 1

Parameters

Datarate (Mbps)

10/100

Interface type

RMII (Master and Slave Mode)

Rating

Catalog

Number of ports

Single

Features

Cable diagnostics, EEE, Low power, Single supply, WoL

Supply voltage (V)

3.3

I/O supply voltage (typ) (V)

1.8, 3.3

Operating temperature range (°C)

-40 to 85

Number of LEDs

2

ESD HBM (kV)

4

Package

WQFN (RMQ)-24-9 mm² 3 x 3

Features

  • Ultra Small Form Factor 10/100Mbps PHY : QFN 3mm × 3mm, 24 pin
  • Cable reach up to 150 meters
  • Very low power consumption < 127mW
  • Integrated MDI and MAC termination resistors
  • Programmable energy saving modes
    • Active sleep
    • Deep power-down
    • Energy Efficient Ethernet (EEE) IEEE 802.3az
    • EEE support for legacy MAC
    • Wake-on-LAN (WoL)
  • Voltage mode line driver
  • MAC interface : RMII (master and slave mode)
  • Single 3.3V power supply
  • I/O voltages: 1.8V and 3.3V
  • Repeater : RMII back-to-back mode in unmanaged mode
  • MDC/MDIO Interface for configuration and status
  • Fast link drop modes
  • Diagnostics tools: cable diagnostics, built-in self test (BIST), loopback modes
  • Programmable Hardware interrupt pin
  • Operating temperature range: –40°C to 85°C
  • Compliant to IEEE 802.3 100BASE-TX and 10BASE-Te specification
  • Ultra Small Form Factor 10/100Mbps PHY : QFN 3mm × 3mm, 24 pin
  • Cable reach up to 150 meters
  • Very low power consumption < 127mW
  • Integrated MDI and MAC termination resistors
  • Programmable energy saving modes
    • Active sleep
    • Deep power-down
    • Energy Efficient Ethernet (EEE) IEEE 802.3az
    • EEE support for legacy MAC
    • Wake-on-LAN (WoL)
  • Voltage mode line driver
  • MAC interface : RMII (master and slave mode)
  • Single 3.3V power supply
  • I/O voltages: 1.8V and 3.3V
  • Repeater : RMII back-to-back mode in unmanaged mode
  • MDC/MDIO Interface for configuration and status
  • Fast link drop modes
  • Diagnostics tools: cable diagnostics, built-in self test (BIST), loopback modes
  • Programmable Hardware interrupt pin
  • Operating temperature range: –40°C to 85°C
  • Compliant to IEEE 802.3 100BASE-TX and 10BASE-Te specification

Description

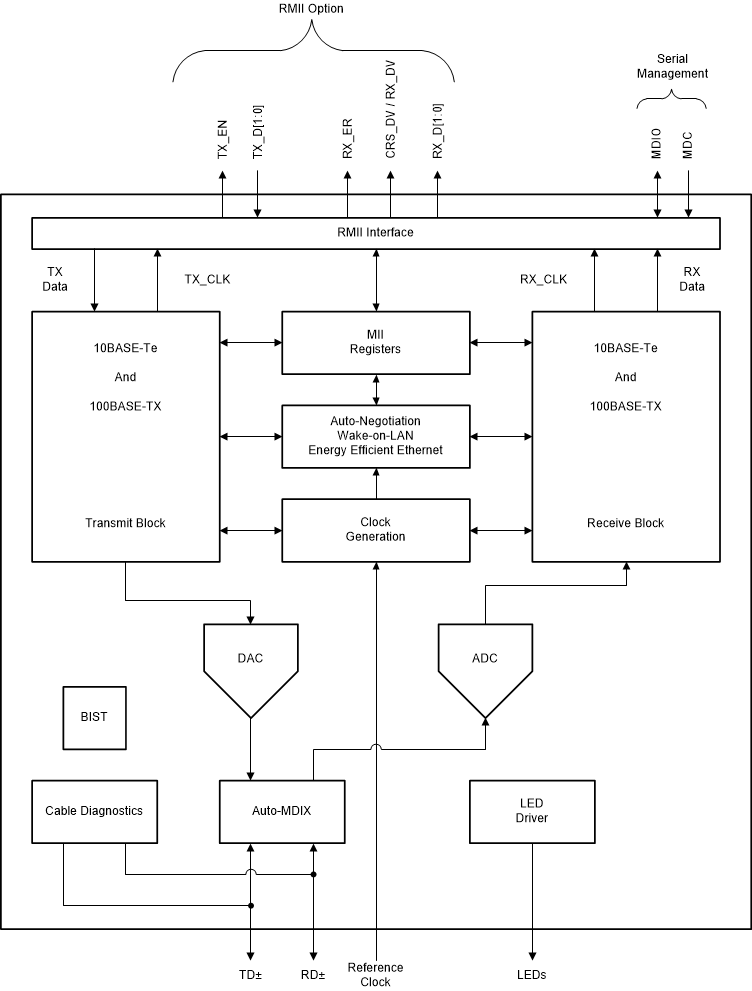

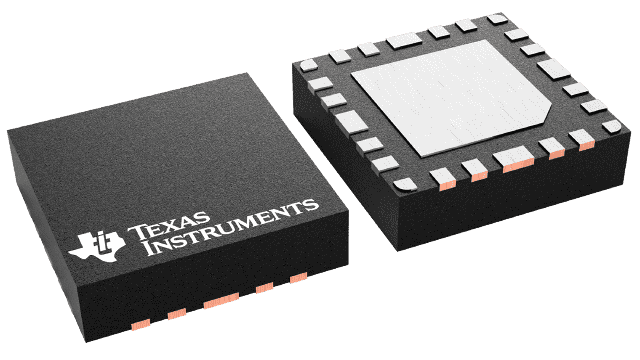

The DP83825I is an ultra small form factor, very low power Ethernet Physical Layer transceiver with integrated PMD sublayers to support 10BASE-Te, 100BASE-TX Ethernet protocols. The PHY supports up to 150 meters reach over CAT5e cable. The DP83825I interfaces directly to twisted pair media via an external transformer.

The DP83825I also supports Energy Efficient Ethernet, Wake-on-LAN and MAC isolation to further lower the system power consumption. Energy Efficient Mode can be enabled through register configuration for legacy MACs not supporting EEE signaling over MAC. DP83825I can operate in unmanaged repeater mode. In this mode, DP83825I works as a repeater without register configuration. The DP83825I offers integrated cable diagnostic tools, built-in self-test and loopback capabilities for ease of development and debug.

The DP83825I is an ultra small form factor, very low power Ethernet Physical Layer transceiver with integrated PMD sublayers to support 10BASE-Te, 100BASE-TX Ethernet protocols. The PHY supports up to 150 meters reach over CAT5e cable. The DP83825I interfaces directly to twisted pair media via an external transformer.

The DP83825I also supports Energy Efficient Ethernet, Wake-on-LAN and MAC isolation to further lower the system power consumption. Energy Efficient Mode can be enabled through register configuration for legacy MACs not supporting EEE signaling over MAC. DP83825I can operate in unmanaged repeater mode. In this mode, DP83825I works as a repeater without register configuration. The DP83825I offers integrated cable diagnostic tools, built-in self-test and loopback capabilities for ease of development and debug.
