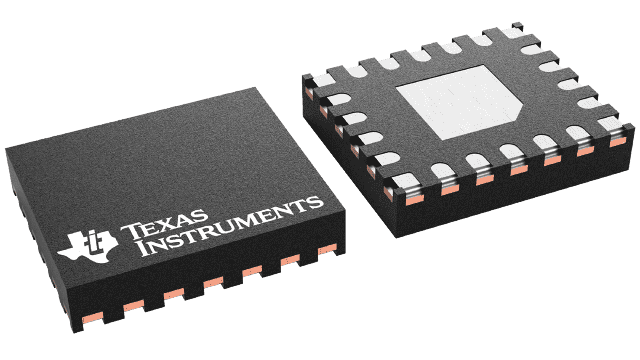

TPS650350-Q1
  • TPS650350-Q1
  • TPS650350-Q1

TPS650350-Q1

ACTIVE

18V PMIC with three buck converters and one LDO for camera modules

Texas Instruments TPS650350-Q1 Product Info

1 April 2026 2

Parameters

Product type

Camera sensor

Regulated outputs (#)

4

Step-down DC/DC converter

3

LDO

1

Vin (min) (V)

4

Vin (max) (V)

18.3

Vout (min) (V)

0.9

Vout (max) (V)

3.3

Iout (max) (A)

1.5

Configurability

Factory programmable, Software configurable, User programmable

TI functional safety category

Functional Safety-Compliant

Features

I2C control, Overcurrent protection, Power good, Power sequencing, Power supply and system monitoring, Spread-Spectrum Clock (SSC) Generation, Thermal shutdown, UVLO fixed

Rating

Automotive

Operating temperature range (°C)

-40 to 125

Iq (typ) (mA)

0.1

Switching frequency (max) (kHz)

2420

Switching frequency (typ) (kHz)

2300

Package

WQFN-FCRLF (RZD)-22-10.5 mm² 3.5 x 3

Features

  • Qualified for automotive applications
  • AEC-Q100 grade 1 qualified
    • -40°C to +125°C ambient operating temperature range
  • Three step-down converters:
    • BUCK1 V IN range from 4.0 V to 18.3 V
    • BUCK1 V OUT range from 2.5 V to 4.0 V
    • BUCK1 output current up to 1500-mA
    • BUCK2 and BUCK3 V IN range from 2.5 V to 5.5 V
    • BUCK2 and BUCK3 V OUT range from 0.9 V to 1.9 V
    • BUCK2 and BUCK3 output current up to 1200-mA
    • Spread-spectrum clock (SSC) generation for reduced EMI
    • 2.3-MHz forced fixed switching frequency PWM operation
  • One low dropout (LDO) regulator:
    • V IN range from 2.5 V to 5.5 V
    • V OUT range from 1.8 V to 3.3 V
    • Low noise and high PSRR
    • Adjustable output voltage through I 2C
    • Up to 300-mA output current
  • 3.0-mm × 3.5-mm 22-pin WQFN with wettable flanks
  • Qualified for automotive applications
  • AEC-Q100 grade 1 qualified
    • -40°C to +125°C ambient operating temperature range
  • Three step-down converters:
    • BUCK1 V IN range from 4.0 V to 18.3 V
    • BUCK1 V OUT range from 2.5 V to 4.0 V
    • BUCK1 output current up to 1500-mA
    • BUCK2 and BUCK3 V IN range from 2.5 V to 5.5 V
    • BUCK2 and BUCK3 V OUT range from 0.9 V to 1.9 V
    • BUCK2 and BUCK3 output current up to 1200-mA
    • Spread-spectrum clock (SSC) generation for reduced EMI
    • 2.3-MHz forced fixed switching frequency PWM operation
  • One low dropout (LDO) regulator:
    • V IN range from 2.5 V to 5.5 V
    • V OUT range from 1.8 V to 3.3 V
    • Low noise and high PSRR
    • Adjustable output voltage through I 2C
    • Up to 300-mA output current
  • 3.0-mm × 3.5-mm 22-pin WQFN with wettable flanks

Description

The TPS650350-Q1 device is a highly integrated power management IC for automotive camera modules. This device combines three step down converters and one low-dropout (LDO) regulator. The BUCK1 step-down converter has an input voltage range up to 18.3 V for connections to Power over Coax (PoC). All converters operate in a forced fixed-frequency PWM mode. The LDO can supply 300 mA and operate with an input voltage range from 2.5 V to 5.5 V. The step-down converters and the LDO have separate voltage inputs that enable maximum design and sequencing flexibility.

The TPS650350-Q1 is available in a 22-pin WQFN package (3.0 mm × 3.5 mm).
