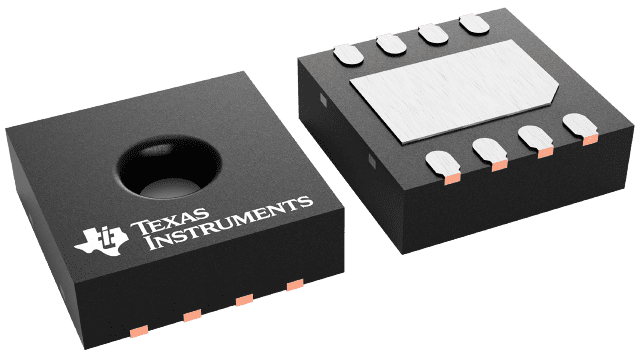

HDC3120-Q1
  • HDC3120-Q1

HDC3120-Q1

ACTIVE

Automotive ±0.5% RH accurate analog-output humidity sensor

Texas Instruments HDC3120-Q1 Product Info

1 April 2026 0

Parameters

Relative humidity accuracy (typ) (%RH)

0.5

Temperature accuracy (typ) (°C)

0.2

Relative humidity operating range (typ) (%RH)

0 to 100

Supply voltage (min) (V)

1.62

Supply voltage (max) (V)

5.5

Average supply current (typ) (µA)

230

Operating temperature range (°C)

-40 to 125

Interface type

Analog voltage (ratiometric)

Rating

Automotive

Package

WSON (DEF)-8-6.25 mm² 2.5 x 2.5

Features

  • AEC-Q100 qualified for automotive applications
    • Temperature Grade 1: –40°C to 125°C
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C4
  • Functional Safety-Capable
  • Relative humidity (RH) sensor:
    • Operating range: 0% to 100%RH
    • Accuracy: ±1%RH typical
    • Long-term drift: 0.19%RH/yr
    • Ratiometric Output: 10.0% to 90.0%VDD
  • Temperature sensor:
    • Operating range: –40°C to 125°C
    • Accuracy: ±0.2°C typical
    • Ratiometric Output: 12.3% to 87.7%VDD
  • NIST traceability
  • Output Short Circuit Protection
  • Integrated heater
  • High capacitive load drive up to 47nF
  • Low power: 250µA typical active current
  • Supply voltage: 1.62V to 5.50V
  • AEC-Q100 qualified for automotive applications
    • Temperature Grade 1: –40°C to 125°C
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C4
  • Functional Safety-Capable
  • Relative humidity (RH) sensor:
    • Operating range: 0% to 100%RH
    • Accuracy: ±1%RH typical
    • Long-term drift: 0.19%RH/yr
    • Ratiometric Output: 10.0% to 90.0%VDD
  • Temperature sensor:
    • Operating range: –40°C to 125°C
    • Accuracy: ±0.2°C typical
    • Ratiometric Output: 12.3% to 87.7%VDD
  • NIST traceability
  • Output Short Circuit Protection
  • Integrated heater
  • High capacitive load drive up to 47nF
  • Low power: 250µA typical active current
  • Supply voltage: 1.62V to 5.50V

Description

The HDC3120-Q1 is an integrated, capacitive based relative humidity (RH) and temperature sensor where the relative humidity and temperature sensor results are represented as ratiometric analog output. Conversion of signals to the analog domain provides a robust design for applications requiring signal transmission over wire or other distance-based use cases. The device provides high accuracy measurements over a wide supply range (1.62V – 5.5V) and low power consumption while maintaining less than 0.19% long term drift per year. The HDC3120-Q1 is available in a compact 2.5mm × 2.5mm × 0.8mm WSON 8-pin package. Both the temperature and humidity sensors are 100% tested and calibrated on a production setup that is NIST traceable and verified with equipment that is calibrated to ISO/IEC 17025 standards.

The HDC3120-Q1 is an integrated, capacitive based relative humidity (RH) and temperature sensor where the relative humidity and temperature sensor results are represented as ratiometric analog output. Conversion of signals to the analog domain provides a robust design for applications requiring signal transmission over wire or other distance-based use cases. The device provides high accuracy measurements over a wide supply range (1.62V – 5.5V) and low power consumption while maintaining less than 0.19% long term drift per year. The HDC3120-Q1 is available in a compact 2.5mm × 2.5mm × 0.8mm WSON 8-pin package. Both the temperature and humidity sensors are 100% tested and calibrated on a production setup that is NIST traceable and verified with equipment that is calibrated to ISO/IEC 17025 standards.
