0
ACTIVE
VDS (V) |
30 |
VGS (V) |
10 |
Type |
Power block |
Configuration |
PowerBlock |
ID - continuous drain current at TA=25°C (A) |
15 |
Power loss (W) |
1.3 |
Ploss current (A) |
10 |
Features |
Power supply |
Rating |
Catalog |
Operating temperature range (°C) |
-55 to 150 |

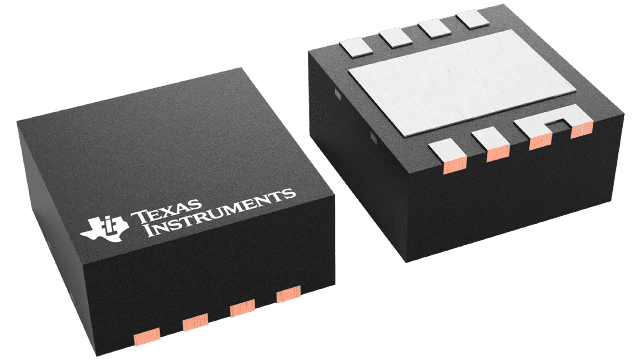

LSON-CLIP (DQZ)-8-10.89 mm² 3.3 x 3.3

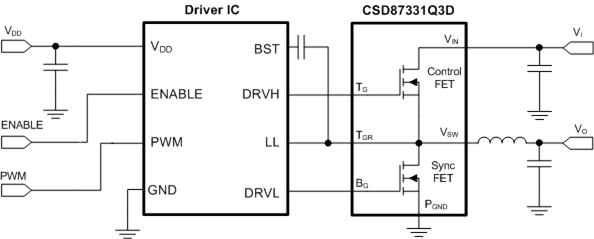

The CSD87331Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 3.3-mm × 3.3-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
