CD74ACT32
  • CD74ACT32
  • CD74ACT32
  • CD74ACT32

CD74ACT32

ACTIVE

4-ch, 2-input 4.5-V to 5.5-V 24-mA drive strength OR gate with TTL-compatible inputs

Texas Instruments CD74ACT32 Product Info

1 April 2026 1

Parameters

Technology family

ACT

Supply voltage (min) (V)

4.5

Supply voltage (max) (V)

5.5

Number of channels

4

Inputs per channel

2

IOL (max) (mA)

24

IOH (max) (mA)

-24

Input type

TTL-Compatible CMOS

Output type

Push-Pull

Features

Over-voltage tolerant inputs, Very high speed (tpd 5-10ns)

Data rate (max) (Mbps)

90

Rating

Catalog

Operating temperature range (°C)

-55 to 125

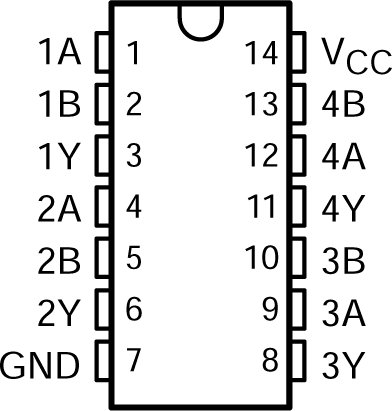

Package

PDIP (N)-14-181.42 mm² 19.3 x 9.4

Features

  • Inputs are TTL-voltage compatible
  • Buffered inputs
  • Speed of bipolar F, AS, and S, with significantly reduced power consumption
  • Balanced propagation delays
  • •±24mA output drive current
    • Fanout to 15 F devices
  • SCR-latchup-resistant CMOS process and circuit design
  • Exceeds 2k V ESD protection per MIL-STD-883, method 3015
  • Inputs are TTL-voltage compatible
  • Buffered inputs
  • Speed of bipolar F, AS, and S, with significantly reduced power consumption
  • Balanced propagation delays
  • •±24mA output drive current
    • Fanout to 15 F devices
  • SCR-latchup-resistant CMOS process and circuit design
  • Exceeds 2k V ESD protection per MIL-STD-883, method 3015

Description

The ’ACT32 devices are quadruple 2-input positive-OR gates. These devices perform the Boolean function Y = A • B or Y = A + B in positive logic.

The ’ACT32 devices are quadruple 2-input positive-OR gates. These devices perform the Boolean function Y = A • B or Y = A + B in positive logic.
