BQ78Z100
  • BQ78Z100
  • BQ78Z100

BQ78Z100

ACTIVE

Impedance Track™ battery fuel (gas) gauge for 1-series to 2-series

Texas Instruments BQ78Z100 Product Info

1 April 2026 3

Parameters

Cell chemistry

Li-Ion/Li-Polymer

Number of series cells

1-2 Cells

Communication interface

HDQ, I2C

Battery capacity (min) (mAh)

100

Battery capacity (max) (mAh)

32000

Implementation

Pack

External capacity indication

None

Features

Cell balancing, Impedance Track™ algorithm, Integrated Protector, SHA-1 Authentication

Operating temperature range (°C)

-40 to 85

Cell balancing

External, Internal

Rating

Catalog

Package

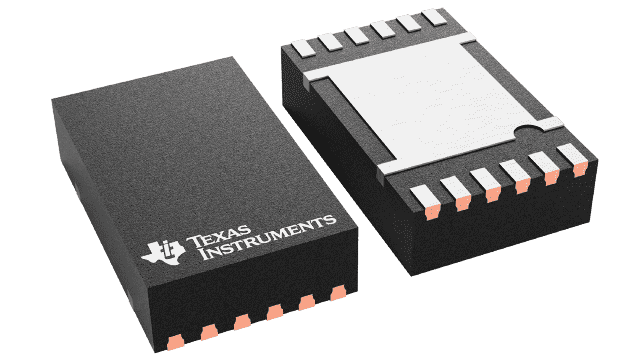

VSON (DRZ)-12-10 mm² 4 x 2.5

Features

  • High-Accuracy Coulomb Counter with Input Offset
    Error < 1 µV (Typical)
  • High-Side FET Drive Allows Serial Bus
    Communication During Fault Conditions
  • Analog Front End with Two Independent ADCs
    • Support for Simultaneous Current and Voltage
      Sampling
  • Bus Communications Interface Options
    • I2C
    • HDQ
  • SHA-1 Hash Message Authentication Code
    (HMAC) Responder for Increased Battery Pack
    Security
    • Split Key (2 × 64) Stored in Secure Memory
  • Programmable Protection Levels for:
    • Overcurrent in Discharge
    • Short-Circuit Current in Charge
    • Short-Circuit Current in Discharge
    • Overvoltage
    • Undervoltage
    • Overtemperature
  • Supports a 1-mΩ to 3-mΩ Current Sense Resistor
  • Compact 12-Terminal SON Package (DRZ)
  • High-Accuracy Coulomb Counter with Input Offset
    Error < 1 µV (Typical)
  • High-Side FET Drive Allows Serial Bus
    Communication During Fault Conditions
  • Analog Front End with Two Independent ADCs
    • Support for Simultaneous Current and Voltage
      Sampling
  • Bus Communications Interface Options
    • I2C
    • HDQ
  • SHA-1 Hash Message Authentication Code
    (HMAC) Responder for Increased Battery Pack
    Security
    • Split Key (2 × 64) Stored in Secure Memory
  • Programmable Protection Levels for:
    • Overcurrent in Discharge
    • Short-Circuit Current in Charge
    • Short-Circuit Current in Discharge
    • Overvoltage
    • Undervoltage
    • Overtemperature
  • Supports a 1-mΩ to 3-mΩ Current Sense Resistor
  • Compact 12-Terminal SON Package (DRZ)

Description

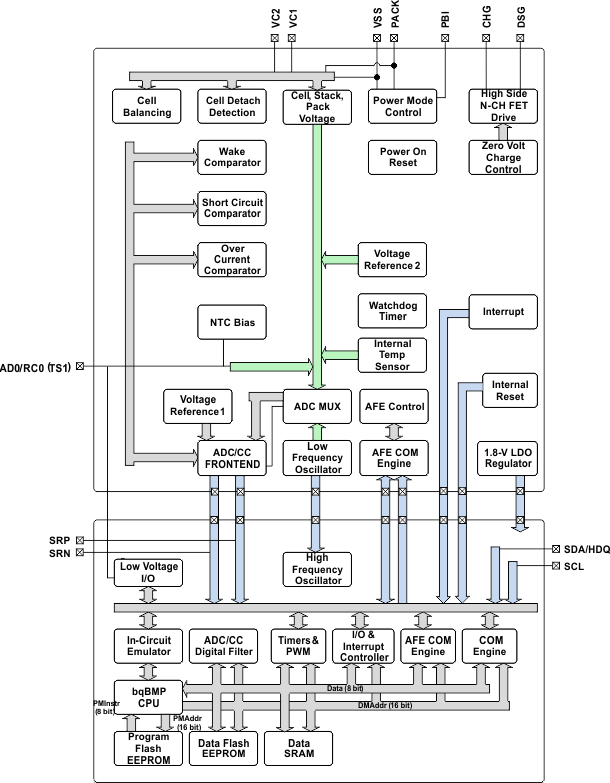

The bq78z100 device provides a fully integrated pack-based solution with a flash programmable custom reduced instruction-set CPU (RISC), safety protection, and authentication for 1-series to 2-series cell Li-Ion and Li-Polymer battery packs.

The bq78z100 gas gauge communicates via an I2C-compatible interface or single-wire HDQ interface and combines an ultra-low-power, high-speed TI bqBMP processor, high-accuracy analog measurement capabilities, integrated flash memory, an array of peripheral and communication ports, an N-channel FET drive, and a SHA-1 Authentication transform responder into a complete, high-performance battery management solution.

The bq78z100 device provides an array of battery and system safety functions, including overcurrent in discharge, short circuit in charge, and short circuit in discharge protection for the battery, as well as FET protection for the N-channel FETs, internal AFE watchdog, and cell balancing. Through firmware, the devices can provide a larger array of features including protection against overvoltage, undervoltage, overtemperature, and more.
