ACTIVE
Architecture |
Voltage FB |
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
GBW (typ) (MHz) |
110 |
BW at Acl (MHz) |
205 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
560 |
Vn at flatband (typ) (nV√Hz) |
4.6 |
Vn at 1 kHz (typ) (nV√Hz) |
5 |
Iq per channel (typ) (mA) |
1 |
Vos (offset voltage at 25°C) (max) (mV) |
0.4 |
Rail-to-rail |
In to V-, Out |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
CMRR (typ) (dB) |
116 |
Input bias current (max) (pA) |
1000000 |
Offset drift (typ) (µV/°C) |
1.1 |
Iout (typ) (mA) |
50 |

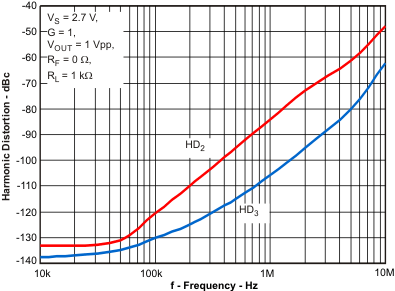

2nd harmonic (dBc) |
85 |
3rd harmonic (dBc) |
79 |
Frequency of harmonic distortion measurement (MHz) |
1 |
VSSOP (DGK)-8-14.7 mm² 3 x 4.9
The OPA2836-Q1 device is a dual-channel, ultra-low power, rail-to-rail output, negative-rail input, voltage-feedback operational amplifier designed to operate over a power-supply range of 2.5 V to 5.5 V (single supply), or ±1.25 V to ±2.75 V (dual supply). Consuming only 1 mA per channel with a unity-gain bandwidth of 205 MHz, this amplifier sets an industry-leading, power-to-performance ratio for rail-to-rail amplifiers.
For battery-powered, portable applications where power is a key importance, the low-power consumption and high-frequency performance of the OPA2836-Q1 offers designers performance-versus-power that is not attainable in other devices.
The OPA2836-Q1 is characterized for operation over the extended industrial temperature range of –40°C to +125°C.
