ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Vos (offset voltage at 25°C) (max) (mV) |
0.01 |
Offset drift (typ) (µV/°C) |
0.001 |
Input bias current (max) (pA) |
350 |
GBW (typ) (MHz) |
0.55 |
Features |
EMI Hardened, Zero Drift |
Slew rate (typ) (V/µs) |
0.2 |
Rail-to-rail |
In to V-, Out |
Iq per channel (typ) (mA) |
0.1 |
Vn at 1 kHz (typ) (nV√Hz) |
20 |
CMRR (typ) (dB) |
145 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (A) |
0.02 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
-2 |
Output swing headroom (to negative supply) (typ) (V) |
0.015 |
Output swing headroom (to positive supply) (typ) (V) |
-0.015 |
THD + N at 1 kHz (typ) (%) |
0.035 |
SOIC (D)-8-29.4 mm² 4.9 x 6

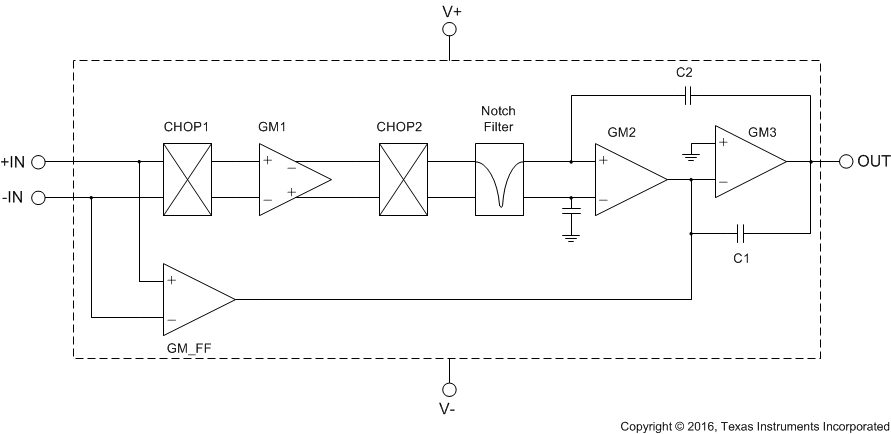

The OPAx187 series operational amplifiers use auto-zeroing techniques to simultaneously provide low-offset voltage (1 µV), and near zero drift over time and temperature. These miniature, high-precision, low-quiescent current amplifiers offer high-input impedance and rail-to-rail output swing within 5 mV of the rails into high-impedance loads. The input common-mode range includes the negative rail. Either single or dual supplies can be used in the range of 4.5 V to 36 V (±2.25 V to ±18 V).
The single version OPAx187 device is available in microsize 8-pin VSSOP, 5-pin SOT-23, and 8-pin SOIC packages. The dual version is offered in 8-pin VSSOP and 8-pin SOIC packages. The quad version is offered in 14-pin SOIC, 14-pin TSSOP, and 16-pin WQFN packages. All versions are specified for operation from –40°C to +125°C.
