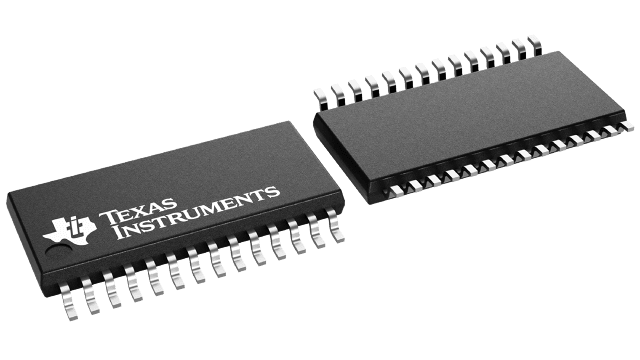

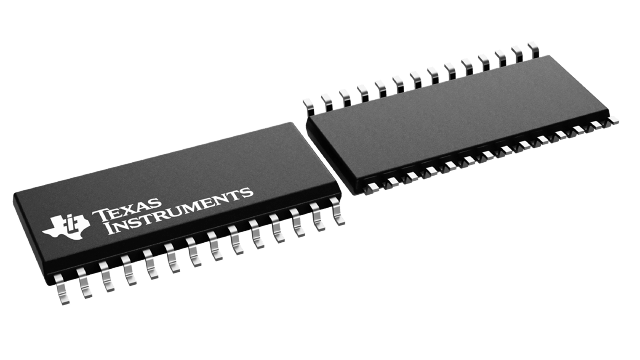

ADS8517

ACTIVE

Low-Power 16-Bit 200kSPS ±10V Bipolar Input SAR ADC With S/P Interface

Texas Instruments ADS8517 Product Info

1 April 2026 0

Parameters

Resolution (Bits)

16

Sample rate (max) (ksps)

200

Number of input channels

1

Interface type

Byte-Wide, Parallel, SPI

Architecture

SAR

Input type

Single-ended

Rating

Catalog

Reference mode

External, Internal

Input voltage range (max) (V)

10

Input voltage range (min) (V)

-10

Features

Daisy-Chainable, Oscillator

Operating temperature range (°C)

-40 to 85

Power consumption (typ) (mW)

60

Analog supply voltage (min) (V)

4.5

Analog supply voltage (max) (V)

5.5

SNR (dB)

89

Digital supply (min) (V)

1.65

Digital supply (max) (V)

5.25

Package

SOIC (DW)-28-184.37 mm² 17.9 x 10.3

Features

  • 200-kHz Minimum Sampling Rate
  • 4-V, 5-V, and ±10-V Input Ranges with High-Impedance Input
  • ±1.5 LSB Max INL
  • +1.5/-1 LSB Max/Min DNL, 16 Bits NMC
  • ±2-mV Max BPZ, ±0.6 ppm/°C BPZ Drift
  • ±2-mV Max UPZ, ±0.15 ppm/°C UPZ Drift
  • 88.8-dB SINAD with 10-kHz Input
  • SPI-Compatible Serial Output With Daisy-Chain (TAG), SPI Master/Slave Feature
  • Full Parallel Interface
  • Binary Twos Complement or Straight Binary Output Code Formats
  • Single 4.5-V to 5.5-V Analog Supply, 1.65-V to 5.5-V Interface Supply
  • Uses Internal 2.5-V or External Reference
  • No External Precision Resistors Required
  • Low Power Dissipation (ADC+REF+BUF):
    • 47 mW Typ, 60 mW Max at 200 kSPS
  • 50-µW Max Power-Down Mode
  • Pin-Compatible with 16-Bit ADS7807 and ADS8507, and 12-Bit ADS7806 and ADS8506
  • SO-28 and TSSOP-28 Packages
  • APPLICATIONS
    • Portable Test Equipment
    • USB Data Acquisition Module
    • Medical Equipment
    • Industrial Process Control
    • Digital Signal Processing
    • Instrumentation

All trademarks are the property of their respective owners.

  • 200-kHz Minimum Sampling Rate
  • 4-V, 5-V, and ±10-V Input Ranges with High-Impedance Input
  • ±1.5 LSB Max INL
  • +1.5/-1 LSB Max/Min DNL, 16 Bits NMC
  • ±2-mV Max BPZ, ±0.6 ppm/°C BPZ Drift
  • ±2-mV Max UPZ, ±0.15 ppm/°C UPZ Drift
  • 88.8-dB SINAD with 10-kHz Input
  • SPI-Compatible Serial Output With Daisy-Chain (TAG), SPI Master/Slave Feature
  • Full Parallel Interface
  • Binary Twos Complement or Straight Binary Output Code Formats
  • Single 4.5-V to 5.5-V Analog Supply, 1.65-V to 5.5-V Interface Supply
  • Uses Internal 2.5-V or External Reference
  • No External Precision Resistors Required
  • Low Power Dissipation (ADC+REF+BUF):
    • 47 mW Typ, 60 mW Max at 200 kSPS
  • 50-µW Max Power-Down Mode
  • Pin-Compatible with 16-Bit ADS7807 and ADS8507, and 12-Bit ADS7806 and ADS8506
  • SO-28 and TSSOP-28 Packages
  • APPLICATIONS
    • Portable Test Equipment
    • USB Data Acquisition Module
    • Medical Equipment
    • Industrial Process Control
    • Digital Signal Processing
    • Instrumentation

All trademarks are the property of their respective owners.

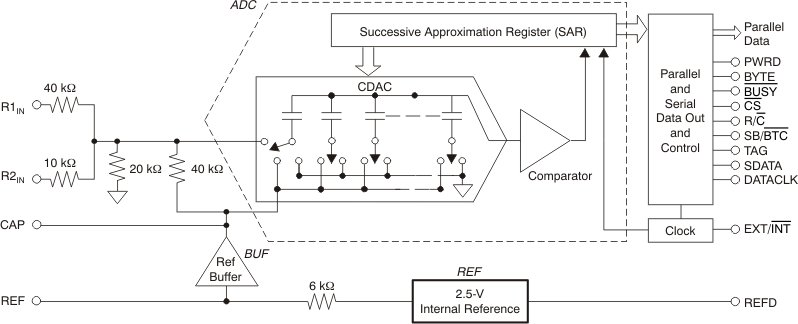

Description

The ADS8517 is a complete low-power, single 5-V supply, 16-bit sampling analog-to-digital (A/D) converter. It contains a complete, 16-bit, capacitor-based, successive approximation register (SAR) A/D converter with sample-and-hold, clock, reference, and data interface. The converter can be configured for a variety of input ranges including ±10 V, 4 V, and 5 V. For most input ranges, the input voltage can swing to 25 V or –25 V without damage to the device.

An SPI-compatible serial interface allows data to be synchronized to an internal or external clock. A full parallel interface using the selectable BYTE pin is also provided to allow the maximum system design flexibility. The ADS8517 is specified at a 200-kHz sampling rate over the industrial -40°C to +85°C temperature range.

The ADS8517 is a complete low-power, single 5-V supply, 16-bit sampling analog-to-digital (A/D) converter. It contains a complete, 16-bit, capacitor-based, successive approximation register (SAR) A/D converter with sample-and-hold, clock, reference, and data interface. The converter can be configured for a variety of input ranges including ±10 V, 4 V, and 5 V. For most input ranges, the input voltage can swing to 25 V or –25 V without damage to the device.

An SPI-compatible serial interface allows data to be synchronized to an internal or external clock. A full parallel interface using the selectable BYTE pin is also provided to allow the maximum system design flexibility. The ADS8517 is specified at a 200-kHz sampling rate over the industrial -40°C to +85°C temperature range.
