ACTIVE
Number of channels |
1 |
Output type |
Open-collector, Open-drain |
Propagation delay time (µs) |
0.18 |
Vs (max) (V) |
7 |
Vs (min) (V) |
2 |
Rating |
Catalog |
Iq per channel (typ) (mA) |
0.08 |
Vos (offset voltage at 25°C) (max) (mV) |
5 |
Rail-to-rail |
In to V- |
Operating temperature range (°C) |
-40 to 85 |
Input bias current (±) (max) (nA) |
250 |
VICR (max) (V) |
5.5 |
VICR (min) (V) |
0 |

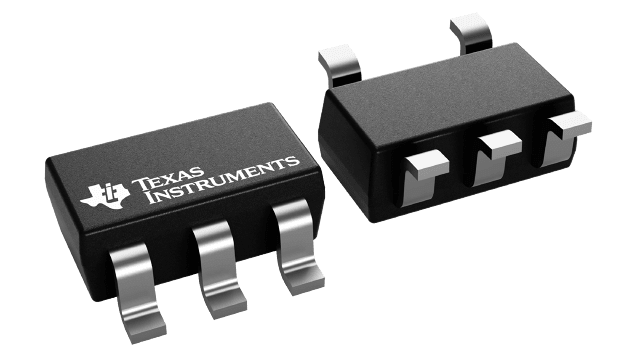

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
The TLV1391 is a differential comparator built using a Texas Instruments low-voltage, high-speed bipolar process. These devices have been developed specifically for low-voltage, single-supply applications. Their enhanced performance makes them excellent replacements for the LM393 in the improved 3-V and 5-V system designs.
The TLV1391, with its typical supply current of only 80 µA, is ideal for low-power systems. Response time also has been improved to 0.7 µs.
