ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
6 |
Vos (offset voltage at 25°C) (max) (mV) |
0.15 |
Offset drift (typ) (µV/°C) |
0.5 |
GBW (typ) (MHz) |
0.6 |
Slew rate (typ) (V/µs) |
0.3 |
Rail-to-rail |
No |
Vn at 1 kHz (typ) (nV√Hz) |
9.8 |
CMRR (typ) (dB) |
110 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |
Architecture |
Bipolar |

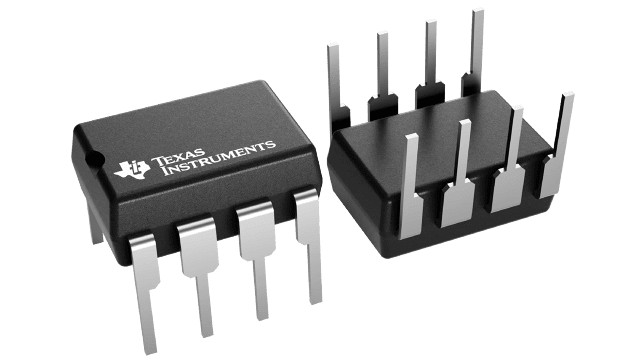

PDIP (P)-8-92.5083 mm² 9.81 x 9.43
The OP07C and OP07D (OP07x) devices offer low offset and long-term stability by means of a low-noise, chopperless, bipolar‑input‑transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in noninverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range.
For improved performance and wider temperature range, see the next generation OPA207 with low power, and OPA202 with heavy capacitive load drive capability.
