0
ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
30 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
10 |
Rail-to-rail |
No |
GBW (typ) (MHz) |
4 |
Slew rate (typ) (V/µs) |
2 |
Vos (offset voltage at 25°C) (max) (mV) |
6 |
Iq per channel (typ) (mA) |
1.65 |
Vn at 1 kHz (typ) (nV√Hz) |
7 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |
Offset drift (typ) (µV/°C) |
0 |
Input bias current (max) (pA) |
250000 |
CMRR (typ) (dB) |
100 |
Iout (typ) (A) |
0.01 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
2 |
Input common mode headroom (to positive supply) (typ) (V) |
-2 |
Output swing headroom (to negative supply) (typ) (V) |
2 |
Output swing headroom (to positive supply) (typ) (V) |
-2 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

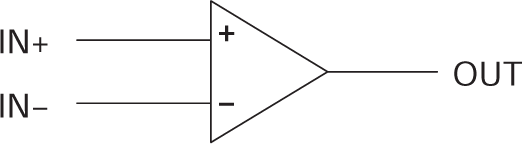

The RC4559 is a dual high-performance operational amplifier. The high common-mode input voltage and the absence of latch-up make this amplifier suitable for low-noise signal applications such as audio preamplifiers and signal conditioners. This amplifier features a dynamic performance that is specified by design and an output drive capability that far exceeds general-purpose type amplifiers.
The RC4559 is characterized for operation from 0°C to 70°C.
