ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
1 |
Slew rate (typ) (V/µs) |
1 |
Vos (offset voltage at 25°C) (max) (mV) |
7 |
Iq per channel (typ) (mA) |
0.13 |
Vn at 1 kHz (typ) (nV√Hz) |
39 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
5 |
Features |
Standard Amps |
Input bias current (max) (pA) |
250000 |
CMRR (typ) (dB) |
65 |
Iout (typ) (A) |
0.06 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
-0.8 |
Output swing headroom (to negative supply) (typ) (V) |
0.065 |
Output swing headroom (to positive supply) (typ) (V) |
-0.12 |

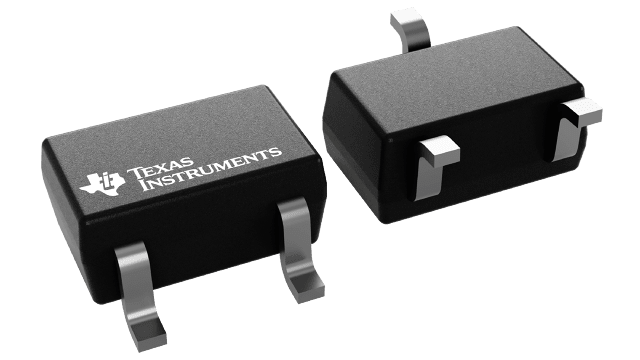

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
For an upgraded version with enhanced performance, please refer to LMV321A, LMV358A, and LMV324A.
The LMV321, LMV358, and LMV324 devices are single, dual, and quad low-voltage (2.7 V to 5.5 V) operational amplifiers with rail-to-rail output swing. These devices are the most cost-effective solutions for applications where low-voltage operation, space saving, and low cost are needed. These amplifiers are designed specifically for low-voltage (2.7 V to 5 V) operation, with performance specifications meeting or exceeding the LM358 and LM324 devices that operate from 5 V to 30 V. With package sizes down to one-half the size of the DBV (SOT-23) package, these devices can be used for a variety of applications.
