ACTIVE
Resolution (Bits) |
18 |
Sample rate (max) (ksps) |
600 |
Number of input channels |
1 |
Interface type |
SPI |
Architecture |
SAR |
Input type |
Differential |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
4.2 |
Input voltage range (min) (V) |
0 |
Features |
Oscillator |
Operating temperature range (°C) |
-40 to 85 |
Power consumption (typ) (mW) |
115 |
Analog supply voltage (min) (V) |
4.75 |
Analog supply voltage (max) (V) |
5.25 |
SNR (dB) |
96 |
Digital supply (min) (V) |
2.7 |
Digital supply (max) (V) |
5.25 |
VQFN (RHP)-28-36 mm² 6 x 6

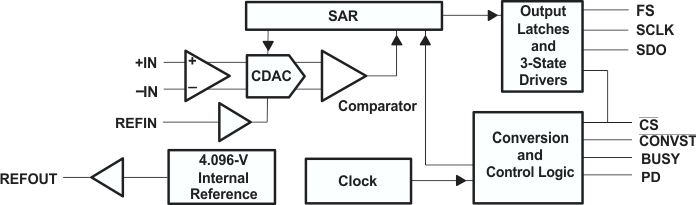

The ADS8382 is a high performance 18-bit, 600-kHz A/D converter with fully differential, pseudo-bipolar input. The device includes an 18-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8382 offers a high-speed CMOS serial interface with clock speeds up to 40 MHz.

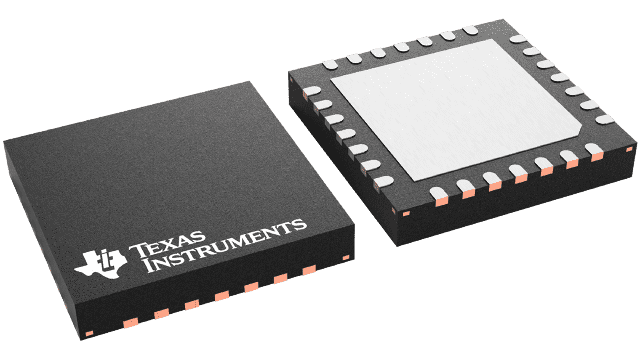

The ADS8382 is available in a 28 lead 6 × 6 QFN package and is characterized over the industrial 40°C to 85°C temperature range.
