0
ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
10 |
Slew rate (typ) (V/µs) |
20 |
Vos (offset voltage at 25°C) (max) (mV) |
3.5 |
Iq per channel (typ) (mA) |
1.8 |
Vn at 1 kHz (typ) (nV√Hz) |
6.5 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
2 |
Input bias current (max) (pA) |
20 |
CMRR (typ) (dB) |
126 |
Iout (typ) (A) |
0.03 |
Architecture |
FET |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
-3.5 |
Output swing headroom (to negative supply) (typ) (V) |
0.35 |
Output swing headroom (to positive supply) (typ) (V) |
-0.35 |
SOIC (D)-14-51.9 mm² 8.65 x 6
All other trademarks are the property of their respective owners

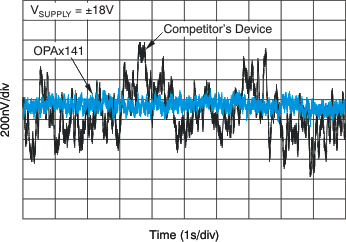

The OPA141, OPA2141, and OPA4141 amplifier family is a series of low-power JFET input amplifiers that feature good drift and low input bias current. The rail-to-rail output swing and input range that includes V– allow designers to take advantage of the low-noise characteristics of JFET amplifiers while also interfacing to modern, single-supply, precision analog-to-digital converters (ADCs) and digital-to-analog converters (DACs).
The OPA141 achieves 10MHz unity-gain bandwidth and 20V/µs slew rate while consuming only 1.8mA (typ) of quiescent current. It runs on a single 4.5 to 36V supply or dual ±2.25V to ±18V supplies.
All versions are fully specified from –40°C to +125°C for use in the most challenging environments. The OPA141 (single) and OPA2141 (dual) versions are available in both MSOP-8 and SO-8 packages; the OPA4141 (quad) is available in the SO-14 and TSSOP-14 packages.
