ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Vos (offset voltage at 25°C) (max) (mV) |
0.01 |
Offset drift (typ) (µV/°C) |
0.02 |
Input bias current (max) (pA) |
200 |
GBW (typ) (MHz) |
0.35 |
Features |
EMI Hardened, Zero Drift |
Slew rate (typ) (V/µs) |
0.16 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
0.017 |
Vn at 1 kHz (typ) (nV√Hz) |
55 |
CMRR (typ) (dB) |
130 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TI functional safety category |
Functional Safety-Capable |
Iout (typ) (A) |
0.005 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.03 |
Output swing headroom (to positive supply) (typ) (V) |
-0.03 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

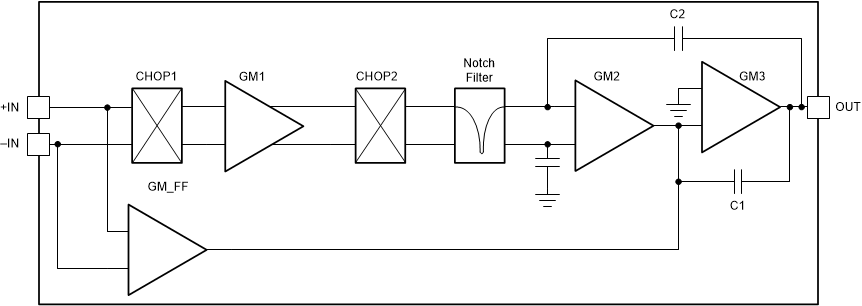

The OPA333-Q1 CMOS operational amplifier uses a proprietary autocalibration technique to simultaneously provide verylow offset voltage (10 µV maximum) and near-zero drift over time and temperature. This miniature, high-precision, low-quiescent-current amplifier offers high-impedance inputs that have a common-mode range 100 mV beyond the rails, and rail-to-rail output that swings within 50 mV of the rails. The device can use single or dual supplies as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V), and is optimized for low-voltage single-supply operation.
The OPA333-Q1 device offers excellent common-mode rejection ratio (CMRR) without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADCs) without degradation of differential linearity.
