ACTIVE
Resolution (Bits) |
16 |
Sample rate (max) (ksps) |
600 |
Number of input channels |
2 |
Interface type |
SPI |
Architecture |
SAR |
Input type |
Pseudo-Differential, Single-ended |
Multichannel configuration |
Simultaneous Sampling |
Rating |
Automotive |
TI functional safety category |
Functional Safety-Capable |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
5.5 |
Input voltage range (min) (V) |
0 |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
45 |
Analog supply voltage (min) (V) |
4.5 |
Analog supply voltage (max) (V) |
5.5 |
SNR (dB) |
89 |
Digital supply (min) (V) |
1.65 |
Digital supply (max) (V) |
5.5 |
TSSOP (PW)-16-32 mm² 5 x 6.4

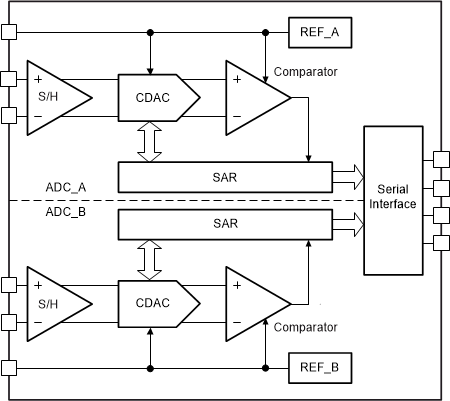

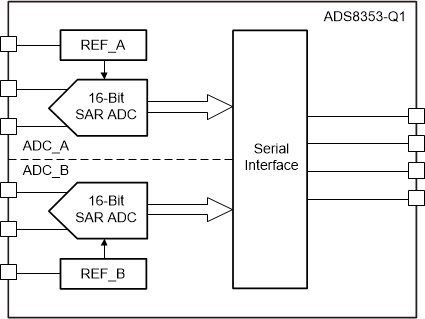

The ADS8353-Q1 is a 16-bit, dual-channel, high-speed, simultaneous-sampling, analog-to-digital converter (ADC) that supports single-ended and pseudo-differential analog inputs.
The ADS8353-Q1 includes two individually programmable reference sources that can be used for system-level gain calibration. Also, a flexible serial interface that can operate over a wide power-supply range enables easy communication with a large variety of host controllers. Power consumption for a given throughput can be optimized by using the two low-power modes supported by the device. The ADS8353-Q1 is fully specified over the temperature range (–40°C to +125°C) and is available in a 16-pin TSSOP package.
