Product
0
LM5171
  • LM5171
  • LM5171
  • LM5171

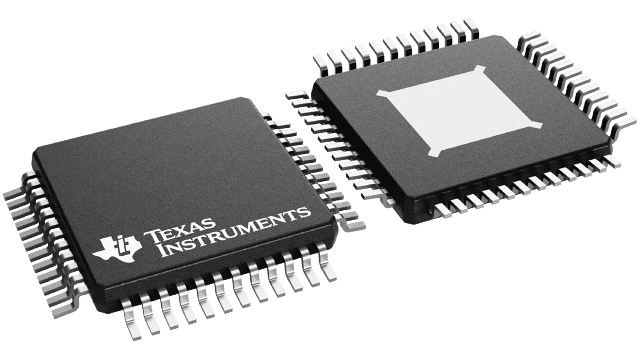

LM5171

ACTIVE

80-V dual-channel bidirectional buck-boost controller

Texas Instruments LM5171 Product Info

1 April 2026 4

Parameters

Rating

Catalog

Topology

Boost, Buck, Buck/Boost

Vin (max) (V)

75

Vin (min) (V)

1

Vout (max) (V)

80

Vout (min) (V)

3

Features

1-MHz maximum frequency, Adjustable current limit, Adjustable soft start, Adjustable switching frequency, Bidirectional, Enable, Frequency synchronization, Light-load efficiency, Multiple outputs, Phase interleaving, Power good, Synchronous rectification, UVLO adjustable

Duty cycle (max) (%)

99

Iq (typ) (A)

0.001

TI functional safety category

Functional Safety-Capable

Operating temperature range (°C)

-40 to 150

Package

HTQFP (PHP)-48-81 mm² 9 x 9

Features

  • Functional Safety-Capable
  • 85V HV-port and 80V LV-port max ratings
  • 1% Typical accuracy of bidirectional current regulation
  • 1% Typical accuracy of channel current monitoring
  • I2C interface for monitoring and diagnosis
  • Built-in 3.5V 1% reference voltage
  • Integrated 5V 10mA bias supply
  • 5A peak half-bridge gate drivers
  • Programmable or adaptive dead-time control
  • Programmable oscillator frequency up to 1MHz with optional synchronization to external clock
  • Independent channel enabling control inputs
  • Integrated both current and voltage loop control
  • Programmable cycle-by-cycle peak current limit
  • Over-temperature shutdown
  • HV and LV port overvoltage protection
  • Dynamically selectable diode emulation and forced PWM operation modes
  • Programmable soft-start timer
  • Support both multiphase and independent channel operations
  • Support urgent shutdown latch
  • Functional Safety-Capable
  • 85V HV-port and 80V LV-port max ratings
  • 1% Typical accuracy of bidirectional current regulation
  • 1% Typical accuracy of channel current monitoring
  • I2C interface for monitoring and diagnosis
  • Built-in 3.5V 1% reference voltage
  • Integrated 5V 10mA bias supply
  • 5A peak half-bridge gate drivers
  • Programmable or adaptive dead-time control
  • Programmable oscillator frequency up to 1MHz with optional synchronization to external clock
  • Independent channel enabling control inputs
  • Integrated both current and voltage loop control
  • Programmable cycle-by-cycle peak current limit
  • Over-temperature shutdown
  • HV and LV port overvoltage protection
  • Dynamically selectable diode emulation and forced PWM operation modes
  • Programmable soft-start timer
  • Support both multiphase and independent channel operations
  • Support urgent shutdown latch

Description

The LM5171 controller provides the high voltage and precision elements of a dual-channel bidirectional converter. Examples include dual battery systems. The LM5171 supports multiphase parallel operation with balanced current sharing in each phase. The LM5171 also supports independent channel bi-directional operations making it versatile as standalone controller operating as multiphase Buck/Boost or independent Buck or Boost.

The dual-channel differential current sense amplifiers and dedicated channel current monitors achieve typical accuracy of 1%. The robust 5A half-bridge gate drivers are capable of driving parallel MOSFETs for scaling more power per channel. The controller can be dynamically programmed to operate in either the diode emulation mode (DEM) or forced PWM (FPWM) mode. Versatile protection features include cycle-by-cycle current limiting, overvoltage protection at both HV and LV ports, and overtemperature protection and urgent shutdown latch.
