ADS7279

ACTIVE

Low-Power, 14-Bit, 1-MHz, Single Unipolar Input, ADC with Serial Interface

Texas Instruments ADS7279 Product Info

1 April 2026 3

Parameters

Resolution (Bits)	14
Sample rate (max) (ksps)	1000
Number of input channels	1
Interface type	SPI
Architecture	SAR
Input type	Single-ended
Rating	Catalog
Reference mode	External
Input voltage range (max) (V)	5.5
Input voltage range (min) (V)	0
Features	Daisy-Chainable, Oscillator
Operating temperature range (°C)	-40 to 85
Power consumption (typ) (mW)	13.7
Analog supply voltage (min) (V)	2.7
Analog supply voltage (max) (V)	5.5
SNR (dB)	85.9
Digital supply (min) (V)	1.65
Digital supply (max) (V)	5.5

Package

TSSOP (PW)-16-32 mm² 5 x 6.4

Features

2.7V to 5.5V Analog Supply, Low Power:
- 13.7mW (1MHz, +VA = 3V, +VBD = 1.8V)
1MHz Sampling Rate 3V ≤ +VA ≤ 5.5V,
900kHz Sampling Rate 2.7V ≤ +VA ≤ 3V
Excellent DC Performance:
- ±0.4LSB Typ, ±1.0LSB Max INL
- ±0.4LSB Typ, ±1.0LSB Max DNL
- ±0.8mV Max Offset Error at 3V
- ±1.25mV Max Offset Error at 5V
Excellent AC Performance at f_i = 10kHz with 85.9dB SNR, 105.3dB SFDR, -100.1dB THD
Built-In Conversion Clock (CCLK)
1.65V to 5.5V I/O Supply:
- SPI/DSP-Compatible Serial Interface
- SCLK up to 50MHz
Comprehensive Power-Down Modes:
- Deep Power-Down
- Nap Power-Down
- Auto Nap Power-Down
Unipolar Input Range: 0V to V_REF
Software Reset
Global CONVST (Independent of CS)
Programmable Status/Polarity EOC/INT

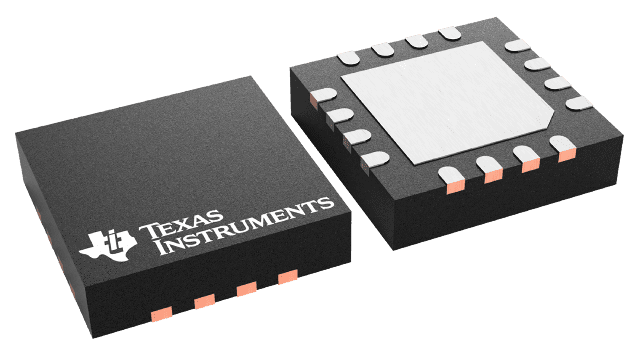

4 × 4 QFN-16 and TSSOP-16 Packages
Multi-Chip Daisy-Chain Mode
Programmable TAG Bit Output
Auto/Manual Channel Select Mode (ADS7280)
APPLICATIONS
- Communications
- Transducer Interface
- Medical Instruments
- Magnetometers
- Industrial Process Control
- Data Acquisition Systems
- Automatic Test Equipment

2.7V to 5.5V Analog Supply, Low Power:
- 13.7mW (1MHz, +VA = 3V, +VBD = 1.8V)
1MHz Sampling Rate 3V ≤ +VA ≤ 5.5V,
900kHz Sampling Rate 2.7V ≤ +VA ≤ 3V
Excellent DC Performance:
- ±0.4LSB Typ, ±1.0LSB Max INL
- ±0.4LSB Typ, ±1.0LSB Max DNL
- ±0.8mV Max Offset Error at 3V
- ±1.25mV Max Offset Error at 5V
Excellent AC Performance at f_i = 10kHz with 85.9dB SNR, 105.3dB SFDR, -100.1dB THD
Built-In Conversion Clock (CCLK)
1.65V to 5.5V I/O Supply:
- SPI/DSP-Compatible Serial Interface
- SCLK up to 50MHz
Comprehensive Power-Down Modes:
- Deep Power-Down
- Nap Power-Down
- Auto Nap Power-Down
Unipolar Input Range: 0V to V_REF
Software Reset
Global CONVST (Independent of CS)
Programmable Status/Polarity EOC/INT
4 × 4 QFN-16 and TSSOP-16 Packages
Multi-Chip Daisy-Chain Mode
Programmable TAG Bit Output
Auto/Manual Channel Select Mode (ADS7280)
APPLICATIONS
- Communications
- Transducer Interface
- Medical Instruments
- Magnetometers
- Industrial Process Control
- Data Acquisition Systems
- Automatic Test Equipment

Description

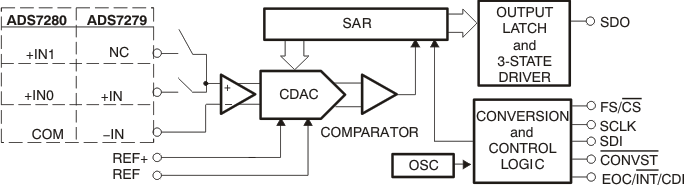

The ADS7279 is a low-power, 14-bit, 1MSPS analog-to-digital converter (ADC) with a unipolar input. The device includes a 14-bit, capacitor-based successive approximation register (SAR) ADC with inherent sample-and-hold.

The ADS7280 is based on the same core and includes a 2-to-1 input MUX with a programmable TAG bit output option. Both the ADS7279 and ADS7280 offer a high-speed, wide voltage serial interface, and are capable of daisy-chain mode operation when multiple converters are used.

These converters are available in 4 × 4 QFN and TSSOP-16 packages, and are fully specified for operation over the industrial -40°C to +85°C temperature range.
