ACTIVE
Sample rate (max) (Msps) |
65 |
Resolution (Bits) |
12 |
Number of input channels |
2 |
Interface type |
Parallel CMOS |
Analog input BW (MHz) |
300 |
Features |
Low Power |
Rating |
Catalog |
Peak-to-peak input voltage range (V) |
2 |
Power consumption (typ) (mW) |
335 |
Architecture |
Pipeline |
SNR (dB) |
70.7 |
ENOB (Bits) |
11.3 |
SFDR (dB) |
86 |
Operating temperature range (°C) |
-40 to 85 |
Input buffer |
No |
TQFP (PAG)-64-144 mm² 12 x 12
All trademarks are the property of their respective owners.

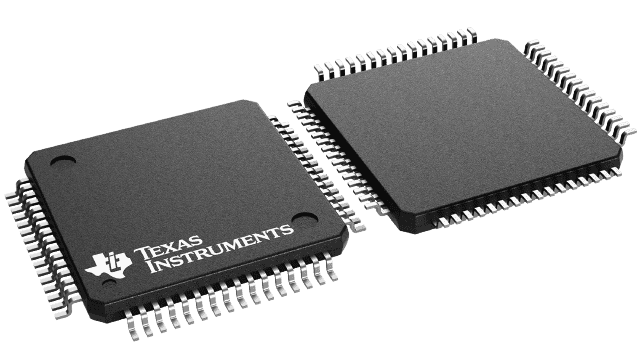

The ADS5232 is a dual, high-speed, high dynamic range, 12-bit pipelined analog-to-digital converter (ADC). This converter includes a high-bandwidth sample-and-hold amplifier that gives excellent spurious performance up to and beyond the Nyquist rate. The differential nature of the sample-and-hold amplifier and ADC circuitry minimizes even-order harmonics and gives excellent common-mode noise immunity.
The ADS5232 provides for setting the full-scale range of the converter without any external reference circuitry. The internal reference can be disabled, allowing low-drive, external references to be used for improved tracking in multichannel systems.
The ADS5232 provides an over-range indicator flag to indicate an input signal that exceeds the full-scale input range of the converter. This flag can be used to reduce the gain of front-end gain control circuitry. There is also an output enable pin to allow for multiplexing and testing on a PC board.
The ADS5232 employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. The ADS5232 is available in a TQFP-64 package.
