In Production
Max Load Current (mA) |
20 |
Initial Accuracy (max%) |
0.1 |
Vcc Range Min (V) |
1.65 |
Vcc Range Max (V) |
5.5 |
VIN Max V (volt) |
5.5 |
VOUT V (volt) |
1.024V, 1.250V, 1.800V, 2.048V, 2.500V, 3.000V, 3.300V, 4.096V, 4.500V, 5.000V |
Output Current Min |
-20mA |
Output Current Max |
20mA |
Noise Rms Freq Interval |
30 |
Temperature Coefficient (ppm/°C) |
50 |

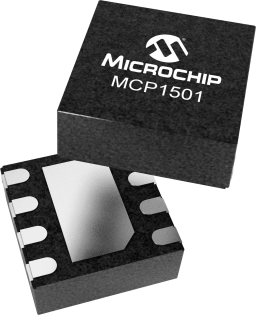

The MCP1501 is a high-precision buffered voltage reference with an initial accuracy of 0.10% and is available in 10 voltage options. The MCP1501 is a low-drift bandgap-based reference and uses chopper-based amplifiers which significantly reduces the drift and provides high current output. The MCP1501 is available in a very small 2x2 WDFN package, as well as the SOT-23 and SOIC packages. SOT-23 package is AEC-Q100 automotive qualified.
