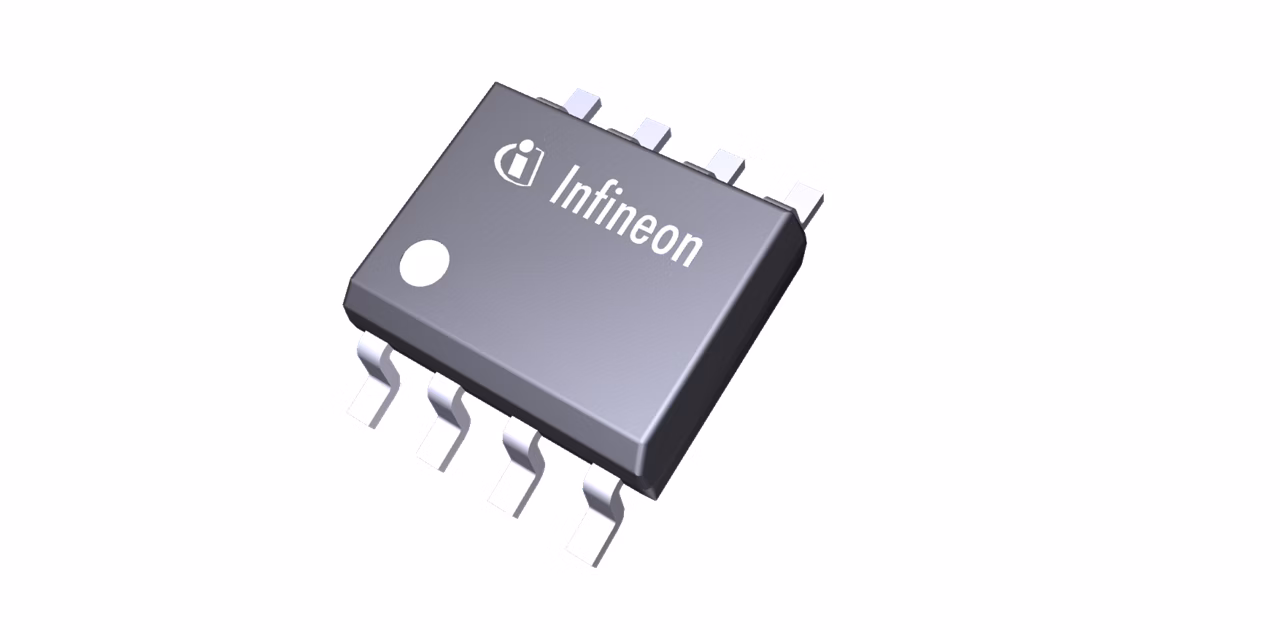

1EDI40I12AF
  • 1EDI40I12AF

1EDI40I12AF

Active

EiceDRIVER™ Compact single-channel isolated gate driver with 6.8/7.5 A typical sinking and sourcing peak output current in DSO-8 narrow package with 4 mm creepage distance for IGBTs , MOSFETs and SiC MOSFETs .1EDI40I12AF belongs to the EiceDRIVER™ 1ED Compact 150mil family (1ED-AF family). 1EDI40I12AF offers separate sink and source output, 240 ns input filter, accurate and stable timing. The driver can operate over a wide supply voltage range, either unipolar or bipolar.

Infineon Technologies 1EDI40I12AF Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

3.1 V to 17 V

Isolation Type

Galvanic isolation - Functional

Output Current (Source)

7.5 A

Output Current (Sink)

6.8 A

PDout

400 mW

Qualification

Industrial

RDSON_H(max)

2.2 Ω

RDSON_H(typ)

1.13 Ω

RDSON_L (max)

2.7 Ω

RDSON_L(typ)

1.13 Ω

RthJA

165 K/W

Turn Off Propagation Delay

300 ns

Turn On Propagation Delay

300 ns

VBS UVLO (On)

12 V

VBS UVLO (Off)

11.1 V

VCC UVLO (Off)

2.75 V

VCC UVLO (On)

2.85 V

Voltage Class

1200 V

Apps

Servo motor drive and control, Motor control, Power conversion, Uninterruptible power supplies (UPS)

Features

  • Compact single channel isolated
  • For 600 V, 650 V, 1200 V switches
  • Galv. isolated coreless transformer
  • 7.5 A typ sink & source peak output
  • 40 V absolute max. output voltage
  • 300 ns propagation delay
  • High CMTI >100 kV/μs
  • Separate source and sink outputs
  • Short-circuit clamping
  • DSO-8 150 mil narrow-body package
  • UVLO protection with hysteresis

Description

  • Integrated filters reduce the need of external filters
  • Suitable for operation at high ambient temperature and in fast switching applications
  • No need to adapt signal voltage levels between μController and driver
  • Active shutdown to ensure a safe IGBT off-state in case the output chip is not connected to the power
  • Short-circuit clamping to limit the gate voltage during short circuit
