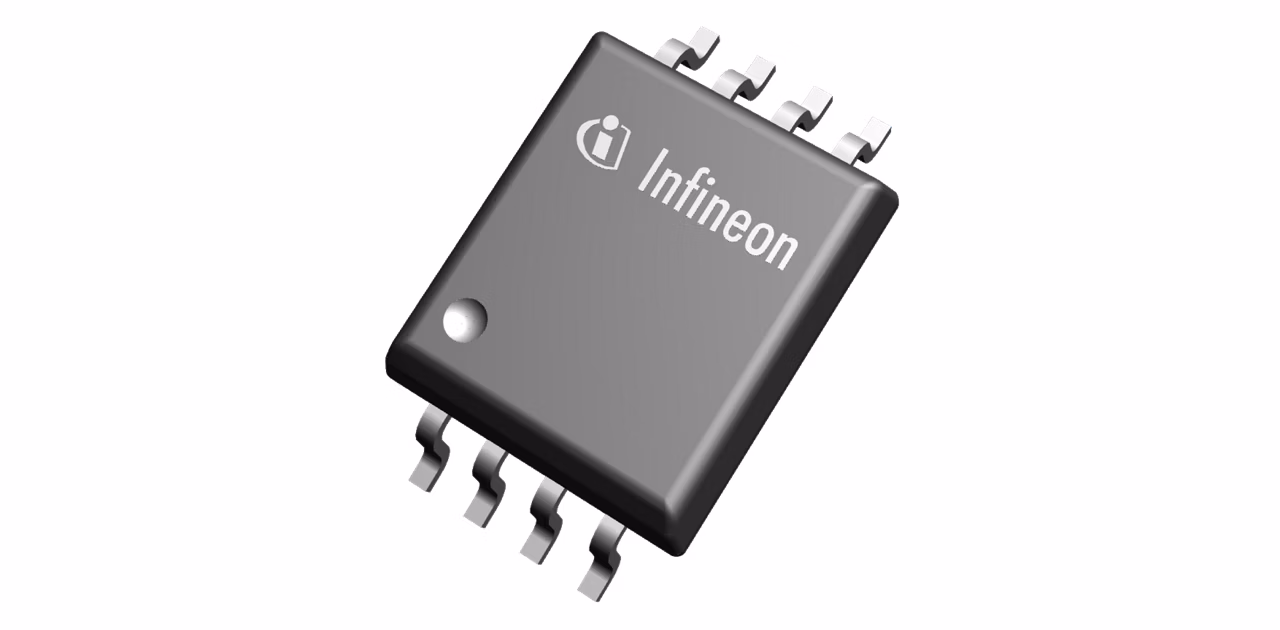

1ED3124MU12H
  • 1ED3124MU12H

1ED3124MU12H

Active and preferred

EiceDRIVER™ Compact single-channel isolated gate driver with 14 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creepage distance for IGBTs, MOSFETs and SiC MOSFETs. It offers separate sink and source output, accurate and stable timing, active shutdown to ensure a safe IGBT off-state in case the output chip is not connected to the power, short-circuit clamping to limit the gate voltage during short circuit

Infineon Technologies 1ED3124MU12H Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

3.1 V to 17 V

Isolation Type

Galvanic isolation - Functional

Output Current (Sink)

14 A

Output Current (Source)

13.5 A

Package

PG-DSO-8

PDout

700 mW

Product Name

1ED3124MU12H

Qualification

Industrial

RDSON_H(max)

0.65 Ω

RDSON_H(typ)

0.45 Ω

RDSON_L (max)

0.6 Ω

RDSON_L(typ)

0.35 Ω

RthJA

88 K/W

Turn Off Propagation Delay

90 ns

Turn On Propagation Delay

90 ns

VBS UVLO (On)

12.5 V

VBS UVLO (Off)

10.5 V

VCC UVLO (On)

3.1 V

VCC UVLO (Off)

2.5 V

Voltage Class

2300 V

Apps

Server power supply units (PSU), On-board charging (OBC), Battery energy storage (BESS), EV charging, DIN rail power supply solutions, General purpose motor drive, Photovoltaic, Home and building automation, Motor control, Uninterruptible power supplies (UPS)

Features

  • Single channel isolated gate driver
  • For up to 2300 V Si & SiC switches
  • 2300 V funct. offset volt. capable
  • Galv. isolated coreless transformer
  • 14 A typ sink & source peak output
  • 40 V absolute max. output voltage
  • 90 ns propagation delay
  • High CMTI >200 kV/μs
  • Separate source and sink outputs
  • Short-circuit clamping
  • DSO-8 300 mil wide-body package
  • UVLO protection with hysteresis
