1ED3120MU12H
  • 1ED3120MU12H

1ED3120MU12H

Active

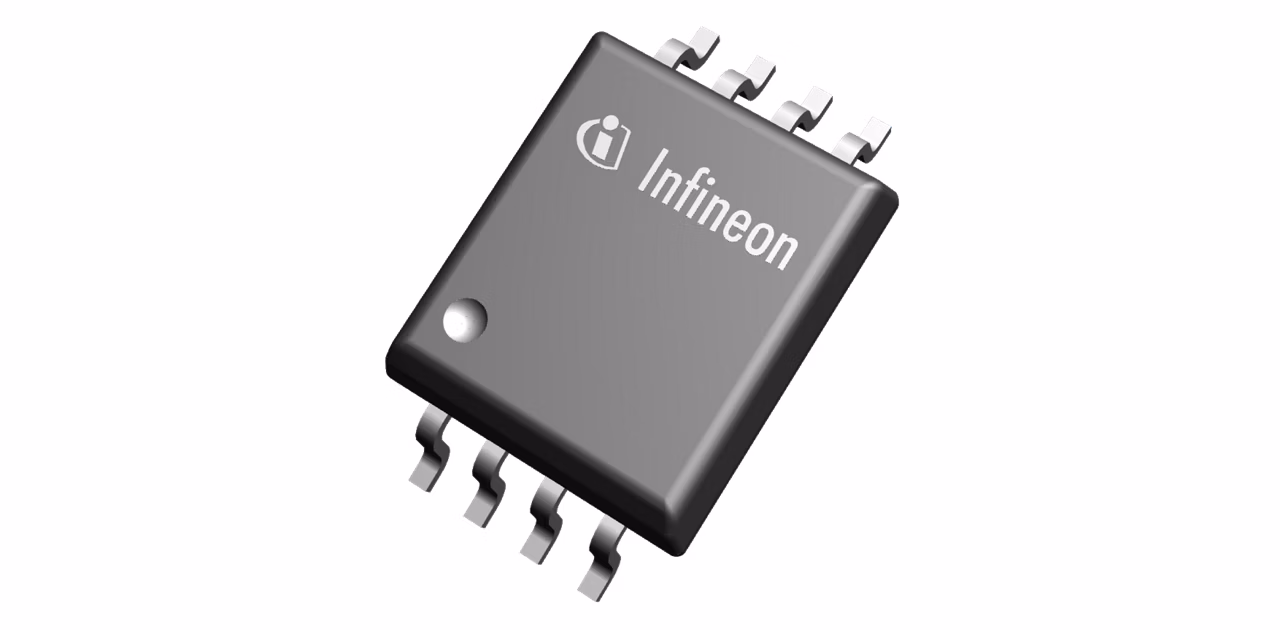

EiceDRIVER™ Compact single-channel isolated gate driver with 5.5 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creepage distance for IGBTs, MOSFETs and SiC MOSFETs. It belongs to the EiceDRIVER™ Compact family and offers separate sink and source output, accurate and stable timing, active shutdown and short-circuit clamping

Infineon Technologies 1ED3120MU12H Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

3.1 V to 17 V

Isolation Type

Galvanic isolation - Functional

Output Current (Sink)

5.5 A

Output Current (Source)

5.5 A

Package

PG-DSO-8

Product Name

1ED3120MU12H

Qualification

Industrial

Turn Off Propagation Delay

90 ns

Turn On Propagation Delay

90 ns

VBS UVLO (On)

10 V

VBS UVLO (Off)

8 V

VCC UVLO (On)

3.1 V

VCC UVLO (Off)

2.5 V

Voltage Class

2300 V

Apps

Server power supply units (PSU), EV charging, Photovoltaic, Central inverter solutions, Motor control, Uninterruptible power supplies (UPS)

Features

  • Single channel isolated gate driver
  • For up to 2300 V Si & SiC switches
  • 2300 V funct. offset volt. capable
  • Galv. isolated coreless transformer
  • 5.5 A typ sink & source peak output
  • 40 V absolute max. output voltage
  • 90 ns propagation delay
  • High CMTI >200 kV/μs
  • Separate source and sink outputs
  • Short-circuit clamping
  • DSO-8 300 mil wide-body package
  • UVLO protection with hysteresis
