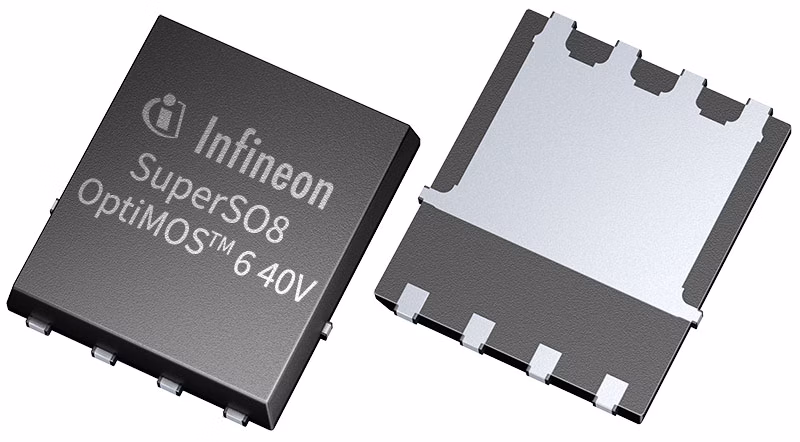

BSC022N04LS6
  • BSC022N04LS6

BSC022N04LS6

Active and preferred

The OptiMOS™ 6 power MOSFET 40V family is optimized for a variety of applications and circuits, such as synchronous rectification in switched mode power supplies (SMPS) in servers, desktop PCs, wireless chargers, quick chargers and ORing circuits. Improvements in on-state resistance (RDS(on)) and figure of merits (FOM - RDS(on) x Qg and Qgd) enable designers to increase efficiency, allowing easier thermal design and less paralleling, leading to system cost reduction.

Infineon Technologies BSC022N04LS6 Product Info

16 April 2026 11

Parameters

Budgetary Price €/1k

0.46

ID (@ TC=25°C) max

139 A

ID (@25°C) max

139 A

IDpuls max

556 A

Mounting

SMT

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6

Pin Count

8 Pins

Polarity

N

Ptot max

79 W

QG (typ @4.5V)

13.5 nC

QG (typ @10V)

28 nC

RDS (on) (@10V) max

2.2 mΩ

RDS (on) (@4.5V) max

3.2 mΩ

Special Features

Logic Level, Fused leads

VDS max

40 V

VGS(th) range

1.3 V to 2.3 V

VGS(th)

1.7 V

Apps

Automotive secondary power distribution unit, Chassis domain control, Telecommunications infrastructure, Power conversion

Features

  • Compared to alternative products:
  • RDS(on) reduced by 30%
  • Improved FOM Qg x RDS(on) by 29%
  • Improved FOM Qgd x RDS(on) by 46%
  • Optimized for synchronous rectification
  • Suited for ORing circuits
  • RoHS compliant
  • halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • Very low voltage overshoot
  • Reduced need for snubber circuit
  • System cost reduction
