BSO200P03S H
  • BSO200P03S H

BSO200P03S H

Infineon’s highly innovative OptiMOS™ families include p-channel power MOSFETs. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on-state resistance and figure of merit characteristics.

Infineon Technologies BSO200P03S H Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.36

Ciss

1750 pF

Coss

470 pF

ID (@25°C) max

9.1 A

IDpuls max

-37 A

Operating Temperature max

150 °C

Operating Temperature min

-55 °C

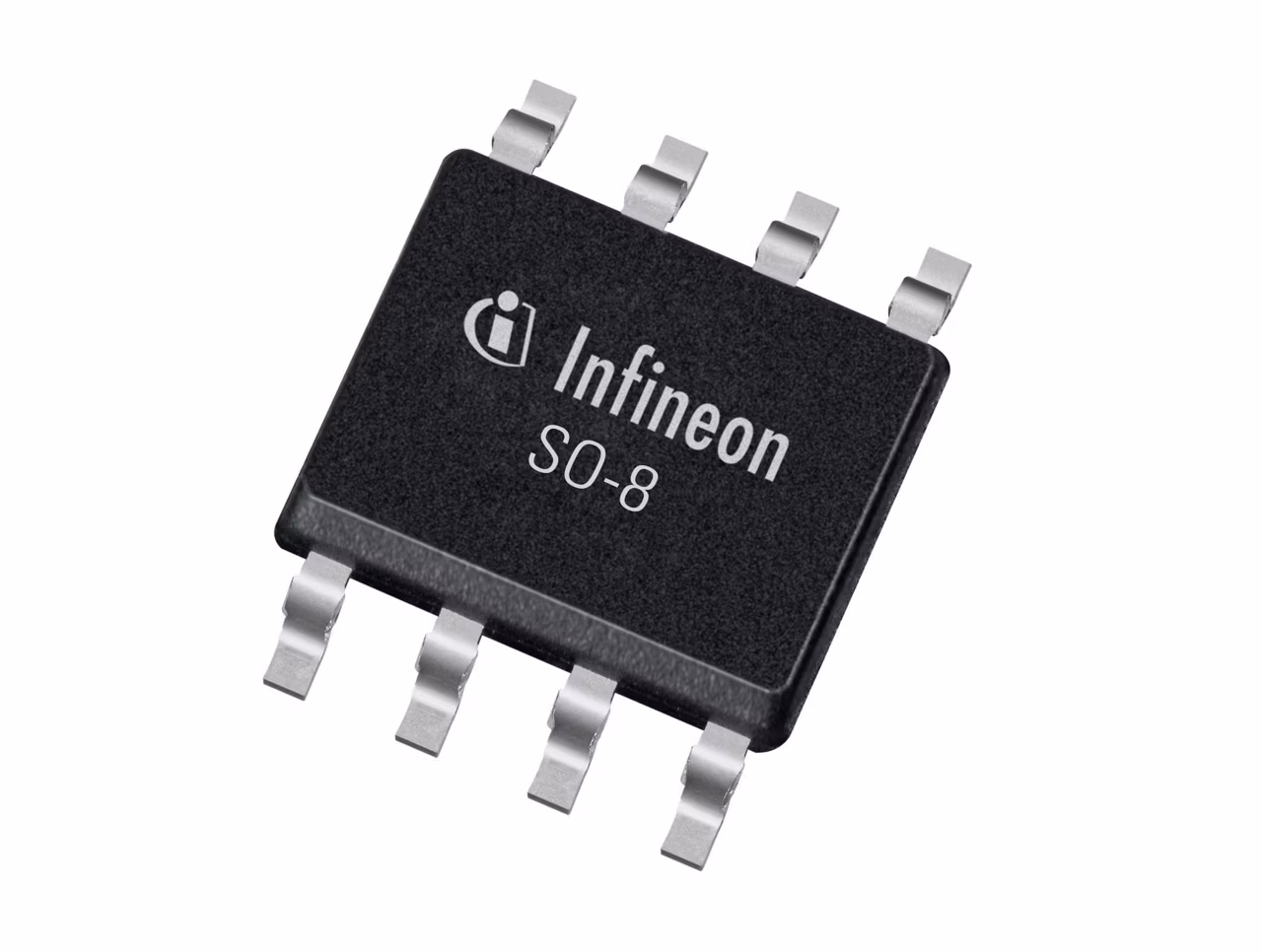

Package

SO-8

Polarity

P

Ptot max

1.56 W

QG (typ @10V)

-40 nC

RDS (on) (@10V) max

20 mΩ

Rth

110 K/W

VDS max

-30 V

VGS(th)

-1.5 V

Features

  • Enhancement mode
  • Normal level, logic level or super logic level
  • Avalanche rated
  • Pb-free lead plating
  • RoHS compliant
