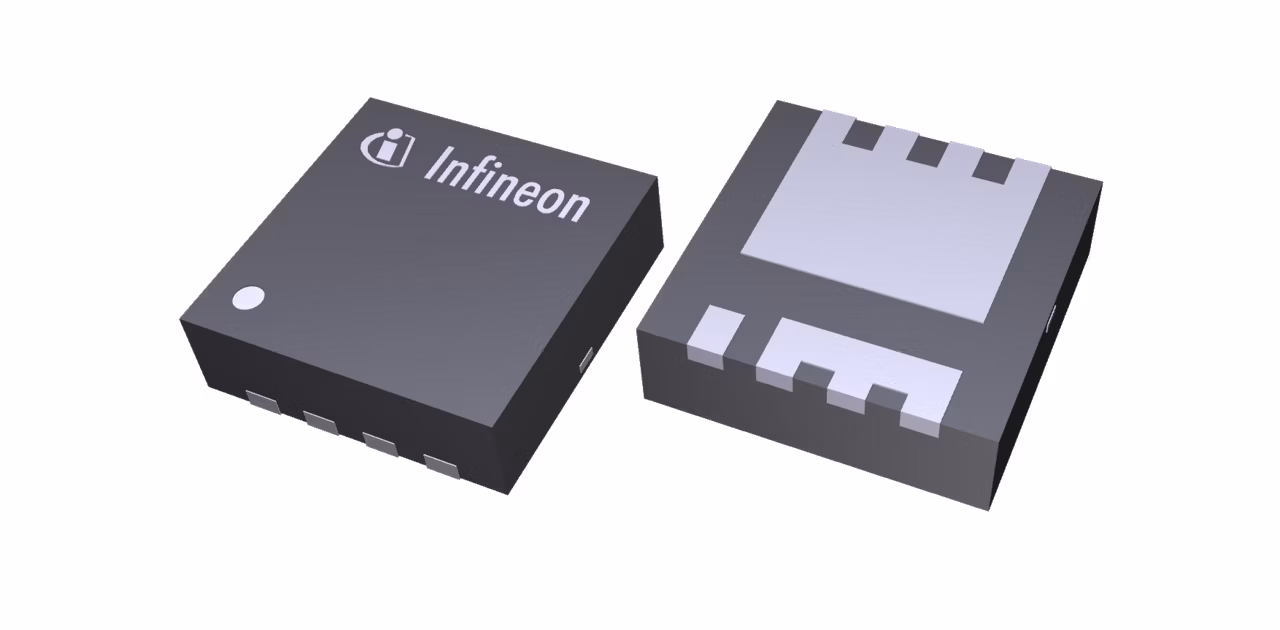

ISZ0703NLS
  • ISZ0703NLS

ISZ0703NLS

Active

OptiMOS™ PD power MOSFET is Infineon’s portfolio targeting USB-PD and adapter applications . The products offer fast ramp-up and optimized lead times. OptiMOS™ low-voltage MOSFETs for power delivery enable designs with less parts leading to BOM cost reduction. OptiMOS™ PD features quality products in compact, lightweight packages.

Infineon Technologies ISZ0703NLS Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.33

ID (@25°C) max

56 A

Operating Temperature range

-55 °C to 175 °C

Package

PQFN 3.3 x 3.3 Fused Lead

Polarity

N

QG (typ @4.5V)

8.7 nC

QG (typ @10V)

17 nC

RDS (on) (@10V) max

7.3 mΩ

RDS (on) (@4.5V) max

9.2 mΩ

Special Features

Logic Level

VDS max

60 V

VGS(th) range

1.1 V to 2.3 V

VGS(th)

1.7 V

Features

  • Logic level availability
  • Low on-state resistance RDSon
  • Output and reverse recovery charge
  • Excellent thermal behavior
  • Available in 2 small standard packages

Description

  • Short lead times
  • Quick quote response
  • Optimal efficiency and power density
  • Green, light, compact items
  • Excellent price-performance ratio
