PD-1070

PRODUCTION

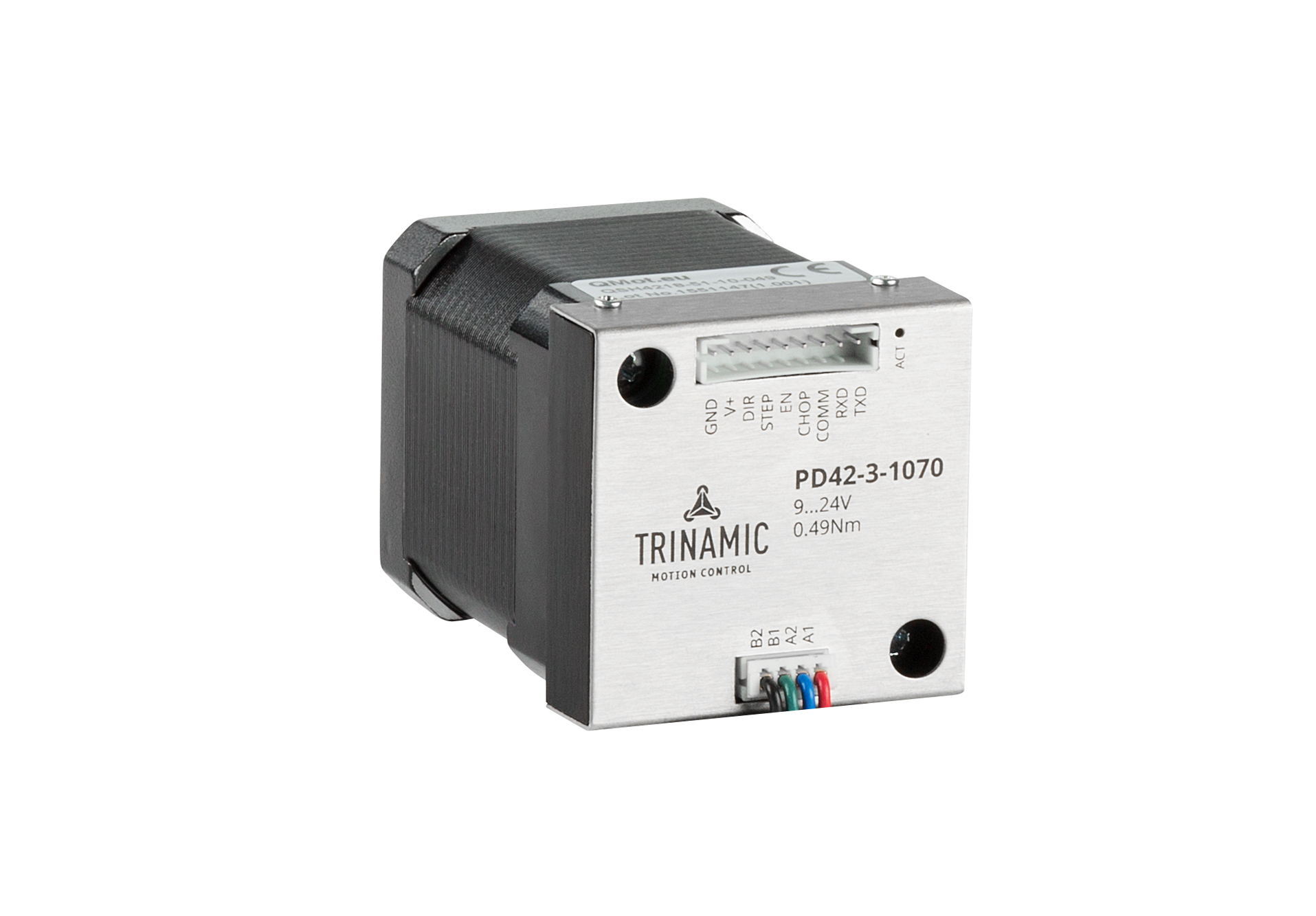

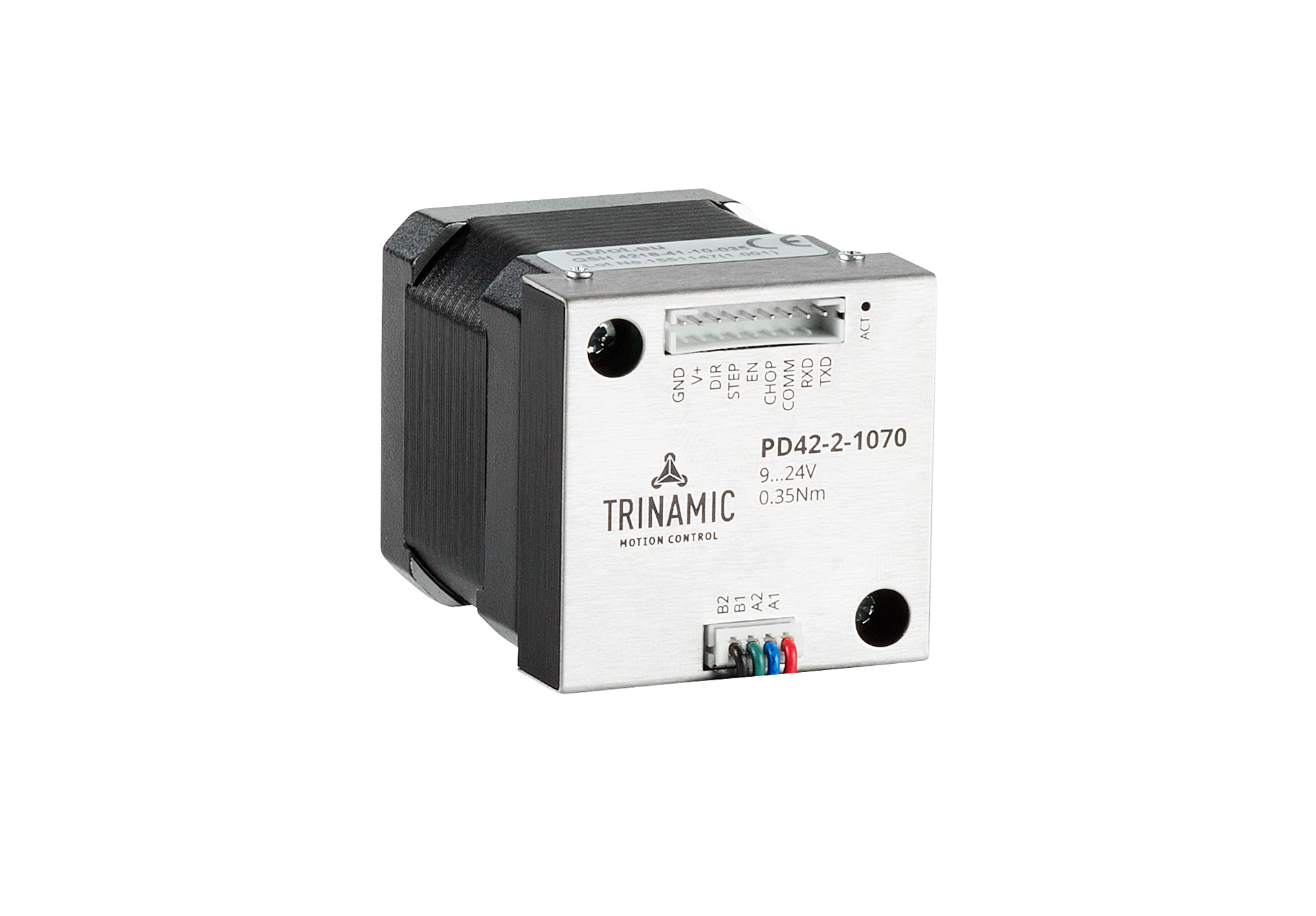

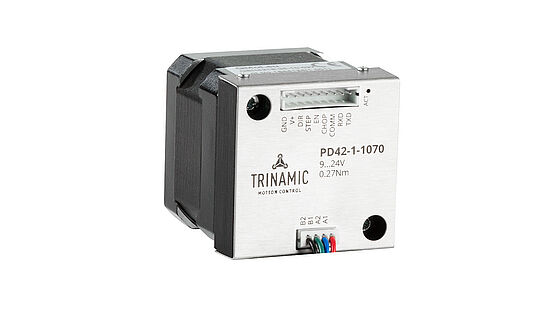

NEMA 17 smart stepper motor 9 to 28V, 22Ncm, 256 µSteps, with S/D and UART interface, StallGuard2, CoolStep and StealthChop

Analog Devices PD-1070 Product Info

10 February 2026 5

Features

Supply Voltage +9 to +24V DC
Step and direction interface
MicroPlyer™ to 256 µ-steps
StealthChop™ silent PWM mode

SpreadCycle™ smart mixed decay
StallGuard2™ load detection
CoolStep™ automatic current scaling
UART configuration interface

Part details & applications

PD-1070 is an easy to use PANdrive™ smart stepper motor. The unit is controlled via a step and direction interface. One configuration pin selects the current control mode between StealthChop™ for absolute silent motor control and SpreadCycle™ for high speed. A TTL UART interface allows for more advanced configuration and permanent parameter storage via TMCL™-IDE.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

APPLICATIONS

Lab-Automation
Manufacturing
Robotics
Factory Automation
CNC
Laboratory Automation
