AD9645

RECOMMENDED FOR NEW DESIGNS

Dual, 14-Bit, 80 MSPS/125 MSPS Serial LVDS 1.8 V Analog-to-Digital Converter

Analog Devices AD9645 Product Info

10 February 2026 7

Features

  • 1.8 V supply operation
  • Low power: 122 mW per channel at 125 MSPS with scalable power options
  • SNR = 74 dBFS (to Nyquist); SFDR = 91 dBc at 70 MHz
  • DNL = ±0.65 LSB (typical); INL = ±1.5 LSB (typical)
  • Serial LVDS (ANSI-644, default) and low power, reduced range option (similar to IEEE 1596.3)
  • 650 MHz full power analog bandwidth
  • 2 V p-p input voltage range
  • Serial port control
    • Full chip and individual channel power-down modes
    • Flexible bit orientation
    • Built-in and custom digital test pattern generation
    • Clock divider
    • Programmable output clock and data alignment
    • Programmable output resolution
    • Standby mode
  • AEC-Q100 qualified for automotive applications

Part details & applications

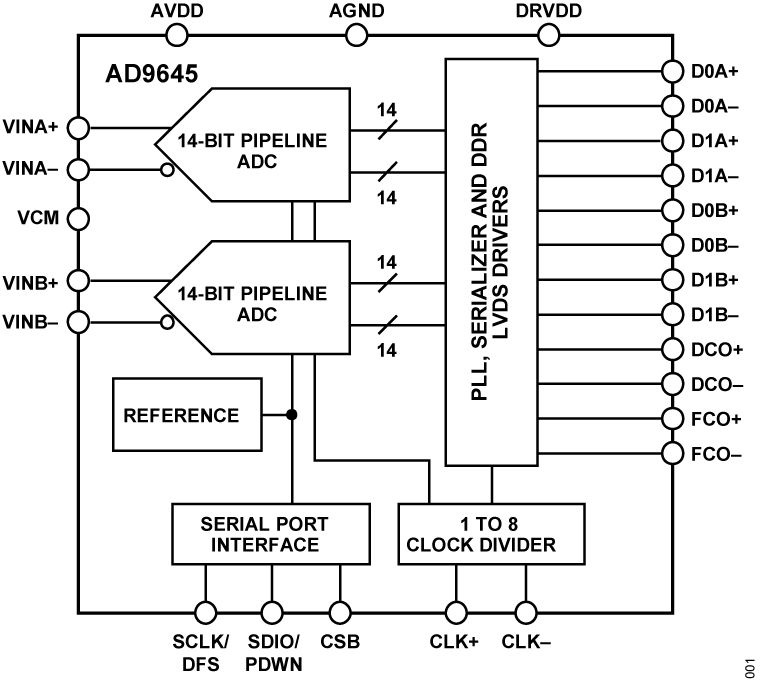

The AD9645 is a dual, 14-bit, 80 MSPS/125 MSPS analog-to-digital-converter (ADC) with an on-chip sample-and-hold circuit designed for low cost, low power, small size, and ease of use. The product operates at a conversion rate of up to 125 MSPS and is optimized for outstanding dynamic performance and low power in applications where a small package size is critical.

The ADC requires a single 1.8 V power supply and LVPECL-/CMOS-/LVDS-compatible sample rate clock for full performance operation. No external reference or driver components are required for many applications.

The ADC automatically multiplies the sample rate clock for the appropriate LVDS serial data rate. A data clock output (DCO) for capturing data on the output and a frame clock output (FCO) for signaling a new output byte are provided. Individual channel power-down is supported; the AD9645 typically consumes less than 2 mW in the full power-down state. The ADC provides several features designed to maximize flexibility and minimize system cost, such as programmable output clock and data alignment and digital test pattern generation. The available digital test patterns include built-in deterministic and pseudo-random patterns, along with custom user-defined test patterns entered via the serial port interface (SPI).

The AD9645 is available in a RoHS-compliant, 32-lead LFCSP. It is specified over the automotive temperature range of −40°C to +105°C.

PRODUCT HIGHLIGHTS

  1. Small Footprint. Two ADCs are contained in a small, space-saving package.
  2. Low Power. The AD9645 uses 122 mW/channel at 125 MSPS with scalable power options.
  3. Pin Compatibility with the AD9635, a 12-Bit Dual ADC.
  4. Ease of Use. A data clock output (DCO) operates at frequencies of up to 500 MHz and supports double data rate (DDR) operation.
