Analog Devices LTC1274 Product Info

• Low Power Dissipation: 10mW
• Sample Rate: 100ksps
• Samples Inputs Beyond Nyquist, 72dB S/(N + D) and 82dB THD at f_IN = 100kHz
• Single Supply 5V or ±5V Operation
• Power Shutdown to 1µA in Sleep Mode
• 180µA Nap Mode (LTC1277) with Instant Wake-Up
• Internal Reference Can Be Overdriven
• Internal Synchronized Clock
• 0V to 4.096V or ±2.048V Input Ranges (1mV/LSB)
• 24-Lead SOL Package

The LTC1274/LTC1277 are 8µs sampling 12-bit A/D converters which draw only 2mA (typ) from single 5V or ±5V supplies. These easy-to-use devices come complete with a 2ms sample-and-hold, a precision reference and an internally trimmed clock. Unipolar and bipolar conversion modes add to the flexibility of the ADCs.

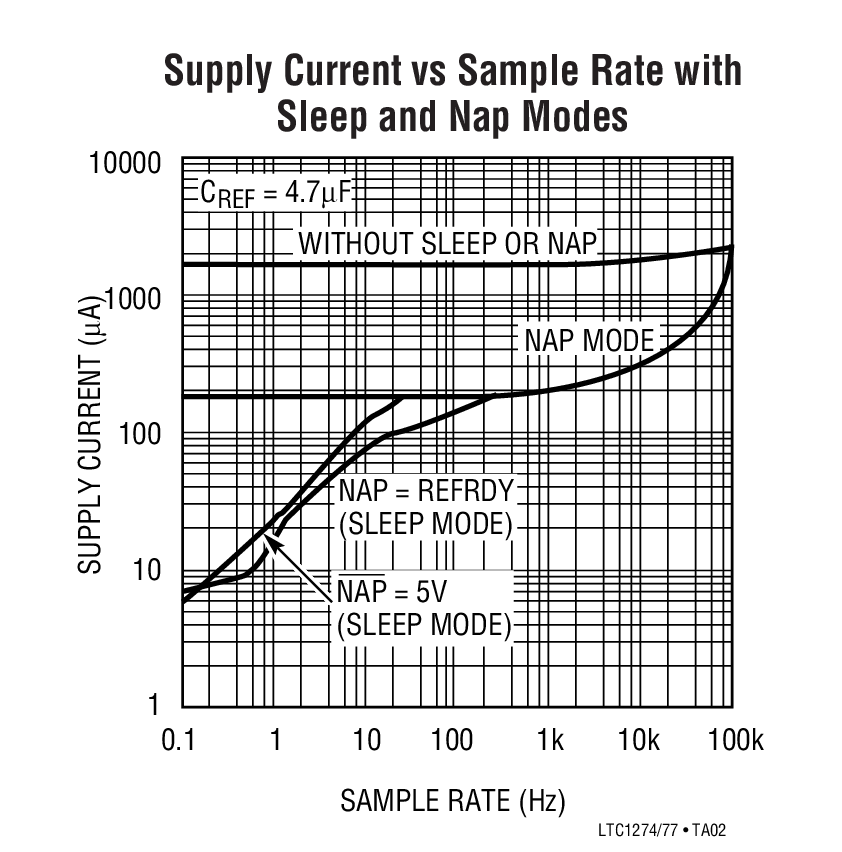

Two power-down modes are available in the LTC1277. In Napmode, the LTC1277 draws only 180µA and the instant wake-up from Nap mode allows the LTC1277 to be powered down even during brief inactive periods. In Sleep mode only 1µA will be drawn. A REFRDY signal is used to show the ADC is ready to sample after waking up from Sleep mode. The LTC1274 also provides the Sleep mode and REFRDY signal.

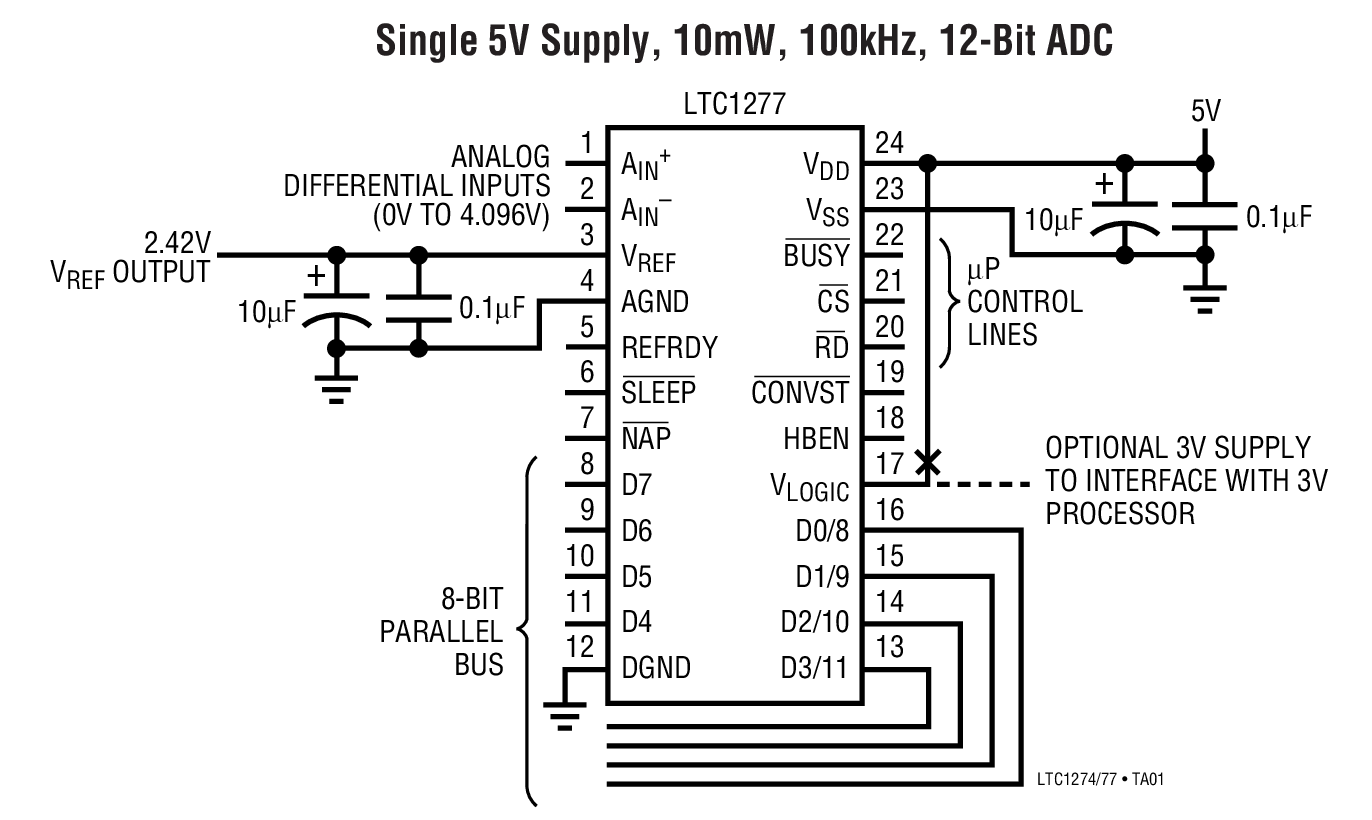

The A/D converters convert 0V to 4.096V unipolar inputs from a single 5V supply or ±2.048V bipolar inputs from ±5V supplies.

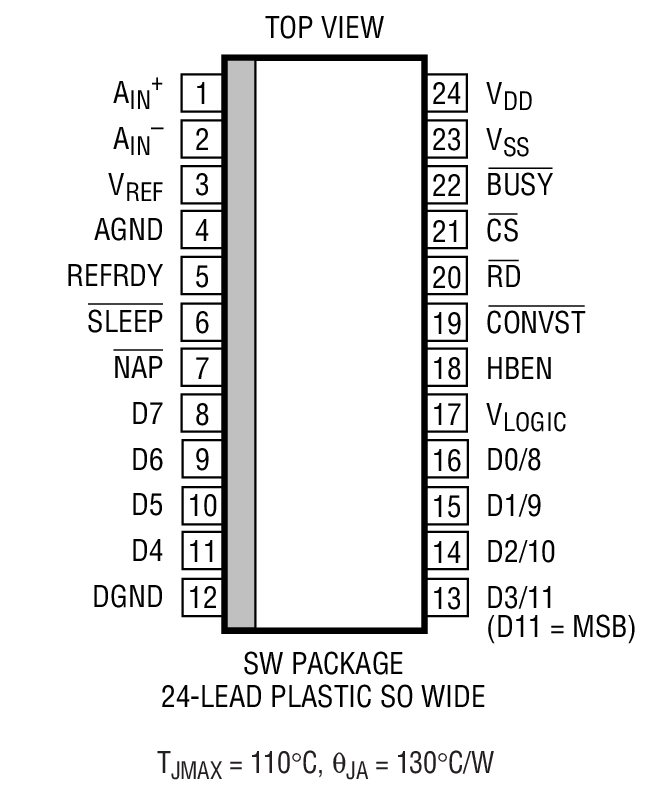

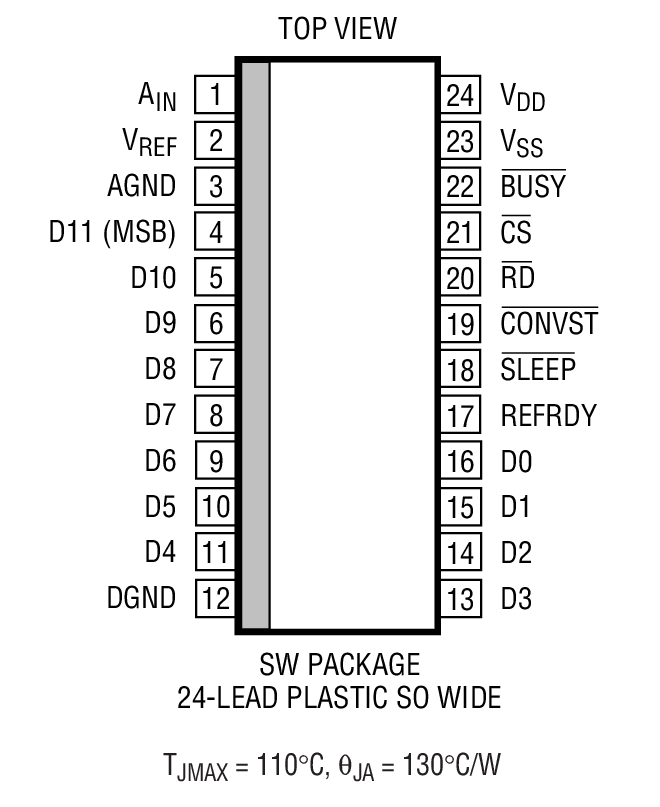

The LTC1274 has a single-ended input and a 12-bit parallel data format. The LTC1277 offers a differential input and a 2-byte read format. The bipolar mode is formatted as 2’s complement for the LTC1274 and offset binary for the LTC1277.

Applications

• Battery-Powered Portable Systems
• High Speed Data Acquisition for PCs
• Digital Signal Processing
• Multiplexed Data Acquisition Systems
• Audio and Telecom Processing
• Spectrum Analysis
