Analog Devices MAX22503E Product Info

• High-Speed Operation
  • Up to 100Mbps Data Rate
  • High Receiver Sensitivity
  • Wide Receiver Bandwidth
  • Symmetrical Receiver Thresholds
• Integrated Protection Increases Robustness
  • -15V to +15V Common Mode Range
  • ±15kV ESD Protection (Human Body Model)
  • ±7kV IEC61000-4-2 Air-Gap ESD Protection
  • ±6kV IEC61000-4-2 Contact Discharge ESD Protection
  • Short-Circuit Protected Driver Outputs
• Flexibility for Many Different Applications
  • 3V to 5.5V Supply Range
  • Low 5μA (max) Shutdown Current
  • Available in 14-Pin SOIC Package
  • -40°C to +125°C Operating Temperature Range

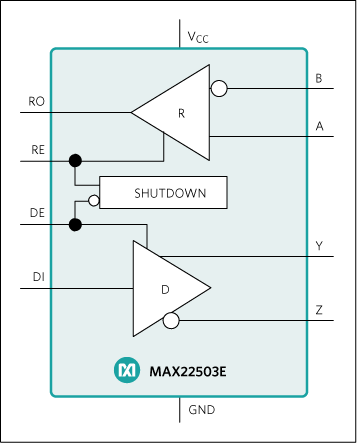

The MAX22503E full-duplex, ESD-protected, RS-485/RS-422 transceiver for high-speed communication operates up to 100Mbps. This transceiver features larger receiver hysteresis for high noise rejection and improved signal integrity. Integrated hot-swap protection and a fail-safe receiver ensure a logic-high on the receiver output when input signals are shorted or open for longer than 10μs (typ).

The MAX22503E is available in 14-pin SOIC package and operates over the -40°C to +125°C ambient temperature range.

Applications

• Motion Control
• Encoder Interfaces
• Field Bus Networks
• Industrial Control Systems
• Backplane Busses
