Analog Devices ADF5901 Product Info

• 24 GHz to 24.25 GHz voltage controlled oscillator (VCO)
• 2-channel 24 GHz power amplifier (PA) with 8 dBm output
• Single-ended outputs
• 2-channel muxed outputs with mute function
• Programmable output power
• N divider output (frequency discriminator)
• 24 GHz local oscillator (LO) output buffer
• 250 MHz signal bandwidth
• Power control detector
• Auxiliary 8-bit ADC
• ±5°C temperature sensor
• 4-wire serial peripheral interface (SPI)
• Electrostatic discharge (ESD) performance
  • Human body model (HBM): 2000 V
  • Charged device model (CDM): 250 V
• Qualified for automotive applications

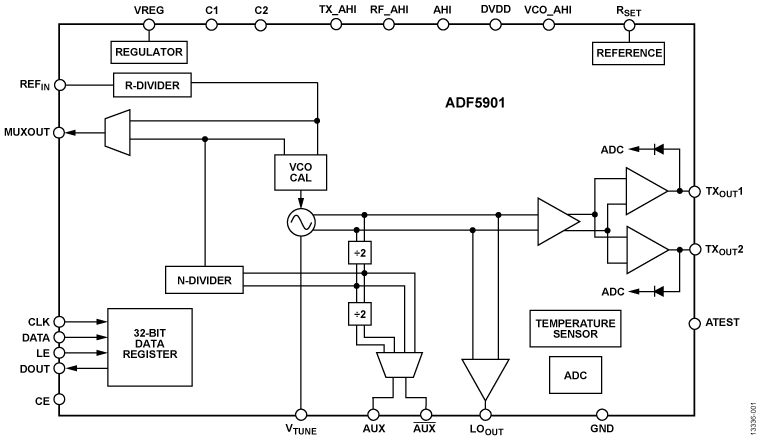

The ADF5901 is a 24 GHz Tx monolithic microwave integrated circuit (MMIC) with an on-chip, 24 GHz VCO with PGA and dual Tx channels for radar systems. The on-chip, 24 GHz VCO generates the 24 GHz signal for the two Tx channels and the LO output. Each Tx channel contains a power control circuit. There is also an on-chip temperature sensor.

Control of all the on-chip registers is through a simple 4-wire interface.

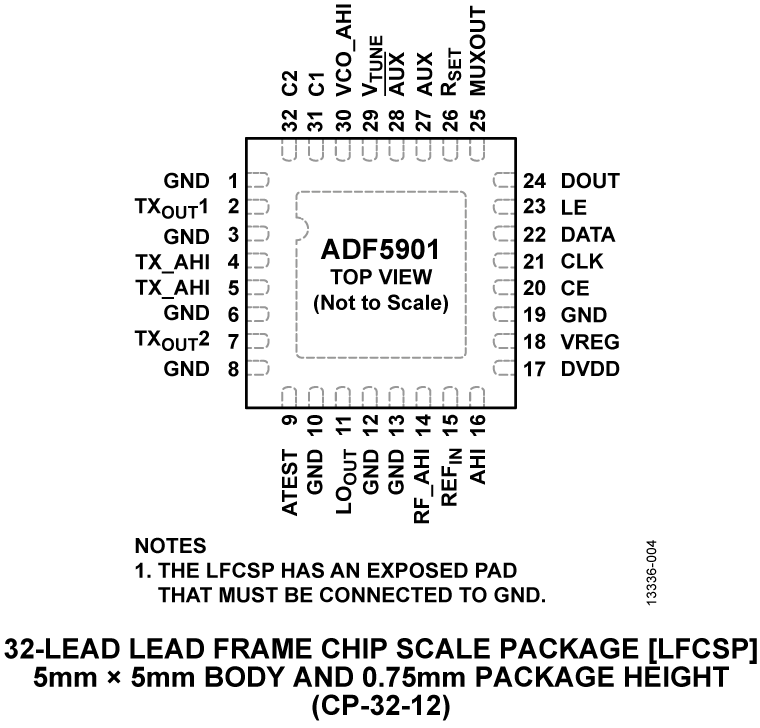

The ADF5901 comes in a compact 32-lead, 5 mm × 5 mm LFCSP package.

Applications

• Automotive radars
• Industrial radars
• Microwave radar sensors
• Industrial sensors
  • Precision instrumentation
  • Tank level sensors
  • Smart sensors
    • Door opening
    • Energy saving
• Commercial sensors: object detection and tracking
  • Cars, boats, aircraft, and UAVs (drones): collision avoidance
  • Intelligent transportation systems: intelligent traffic monitoring and control
  • Surveillance and security
