Analog Devices LTC1417 Product Info

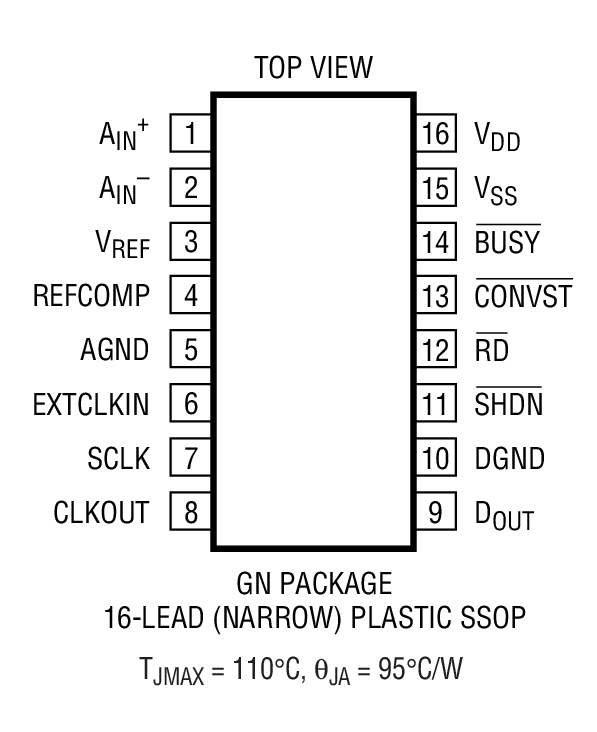

• 16-Pin Narrow SSOP Package (SO-8 Footprint)
• Sample Rate: 400ksps
• ±1.25LSB INL and ±1LSB DNL Max
• Power Dissipation: 20mW (Typ)
• Single Supply 5V or ±5V Operation
• Serial Data Output
• No Missing Codes Over Temperature
• Power Shutdown: Nap and Sleep
• External or Internal Reference
• Differential High Impedance Analog Input
• Input Range: 0V to 4.096V or ±2.048V
• 81dB S/(N + D) and −95dB THD at Nyquist

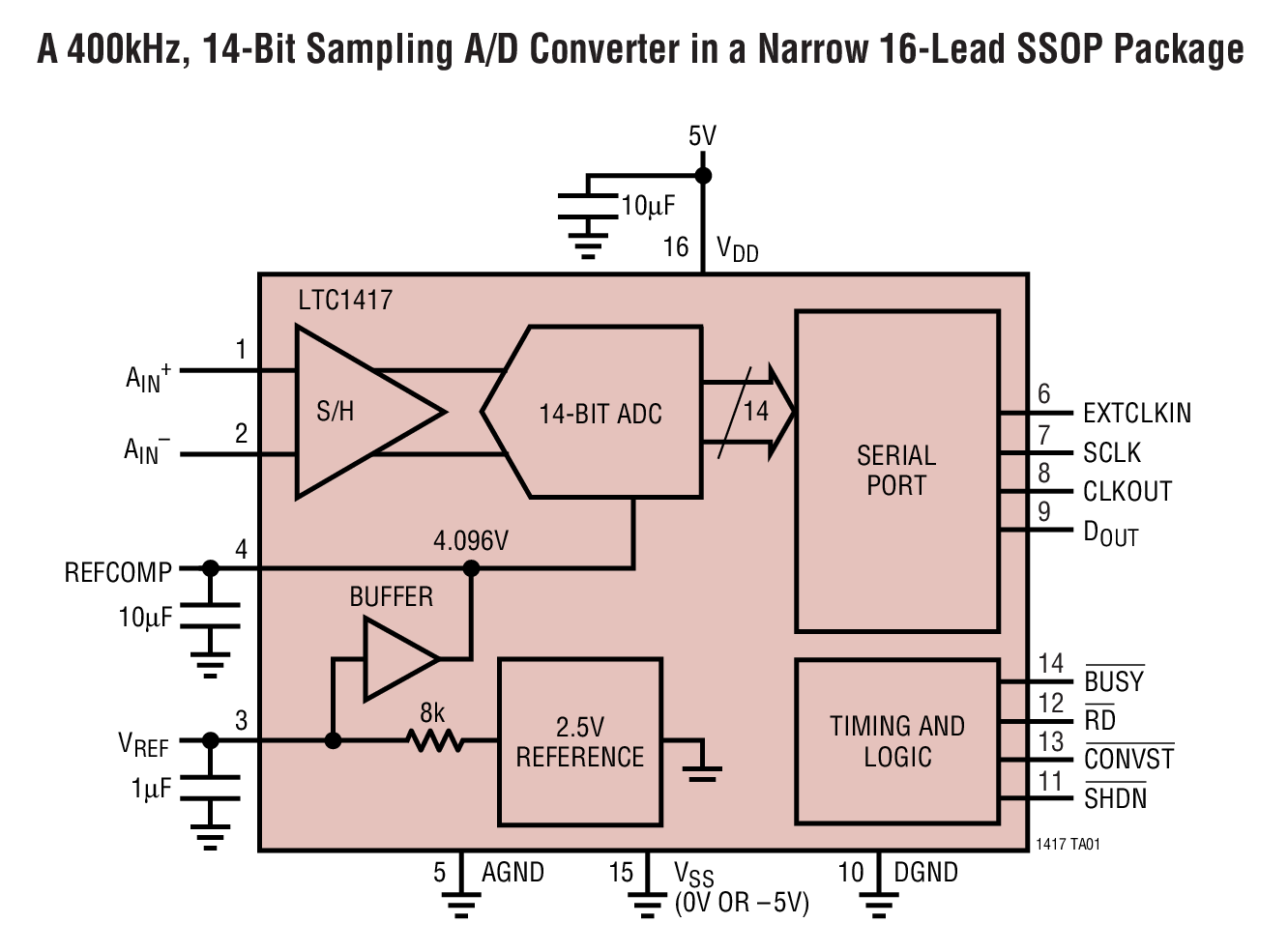

The LTC1417 is a low power, 400ksps, 14-bit A/D converter. This versatile device can operate from a single 5V or ±5V supplies. An on-board high performance sample-and-hold, a precision reference and internal trimming minimize external circuitry requirements. The low 20mW power dissipation is made even more attractive with two user-selectable power shutdown modes.

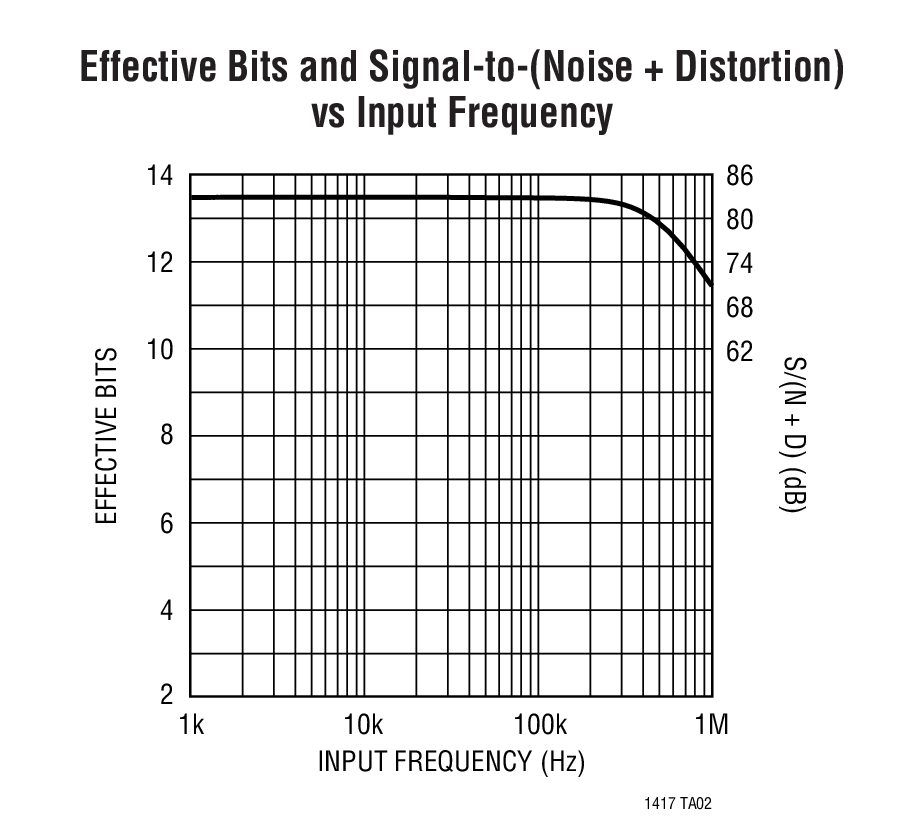

The LTC1417 converts 0V to 4.096V unipolar inputs when using a 5V supply and ±2.048V bipolar inputs when using ±5V supplies. DC specs include ±1.25LSB INL, ±1LSB DNL and no missing codes over temperature. Outstanding AC performance includes 81dB S/(N + D) and −95dB THD at a Nyquist input frequency of 200kHz.

The internal clock is trimmed for 2µs maximum conversion time. A separate convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.

Applications

• High Speed Data Acquisition
• Digital Signal Processing
• Isolated Data Acquisition Systems
• Audio and Telecom Processing
• Spectrum Instrumentation
