Analog Devices LTC2655 Product Info

• Integrated Reference 10ppm/°C Max

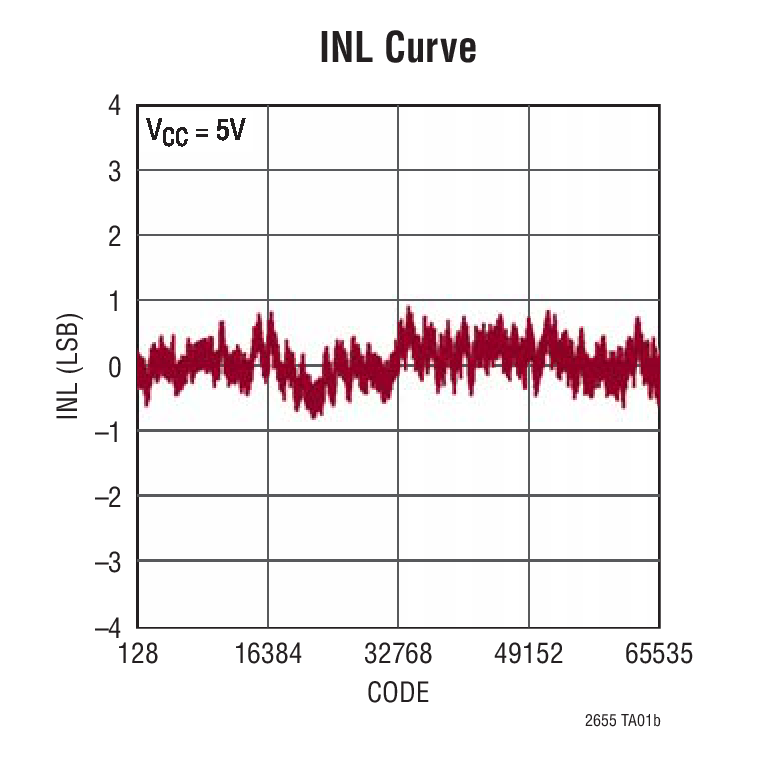

• Maximum INL Error: ±4LSB at 16 Bits
• Guaranteed Monotonic Over Temperature
• Selectable Internal or External Reference
• 2.7V to 5.5V Supply Range (LTC2655-L)
• Integrated Reference Buffers
• Ultralow Crosstalk Between DACs (<1nV•s)
• Power-On-Reset to Zero-Scale/Mid-Scale
• Asynchronous DAC Update Pin

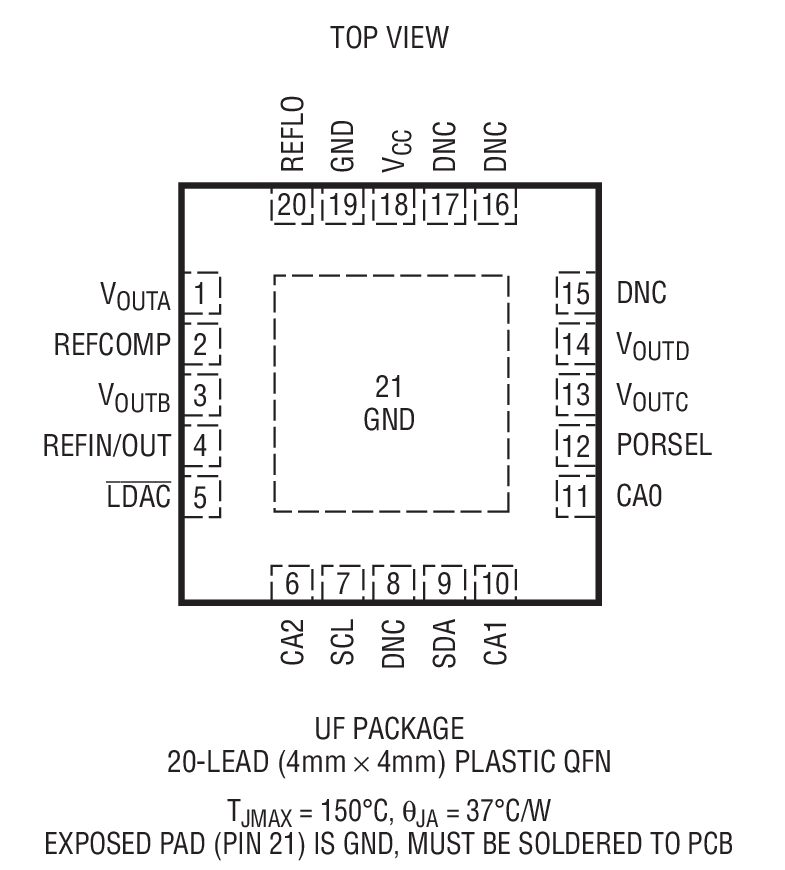

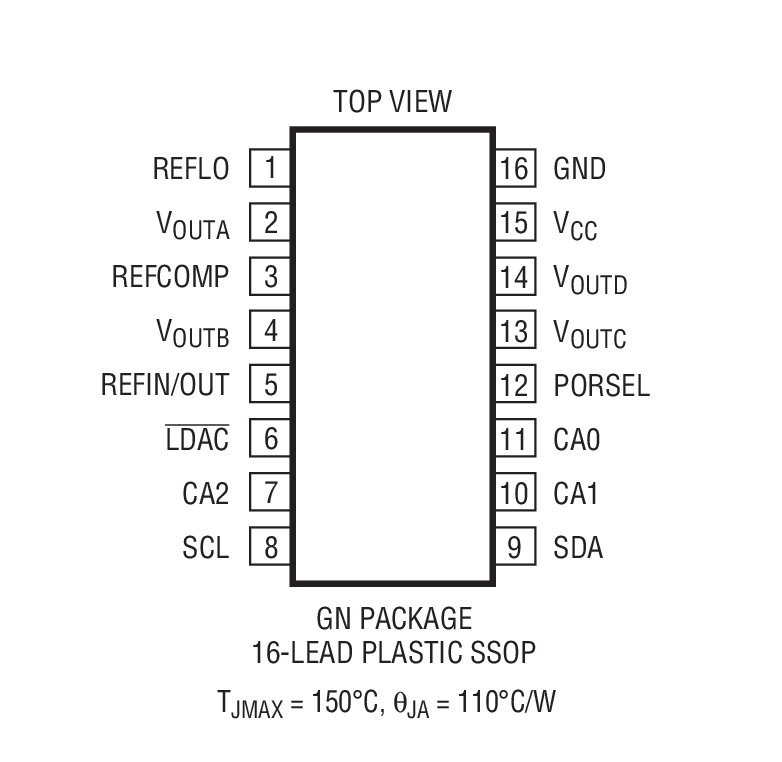

• Tiny 20-Lead 4mm × 4mm QFN and 16-Lead Narrow SSOP packages

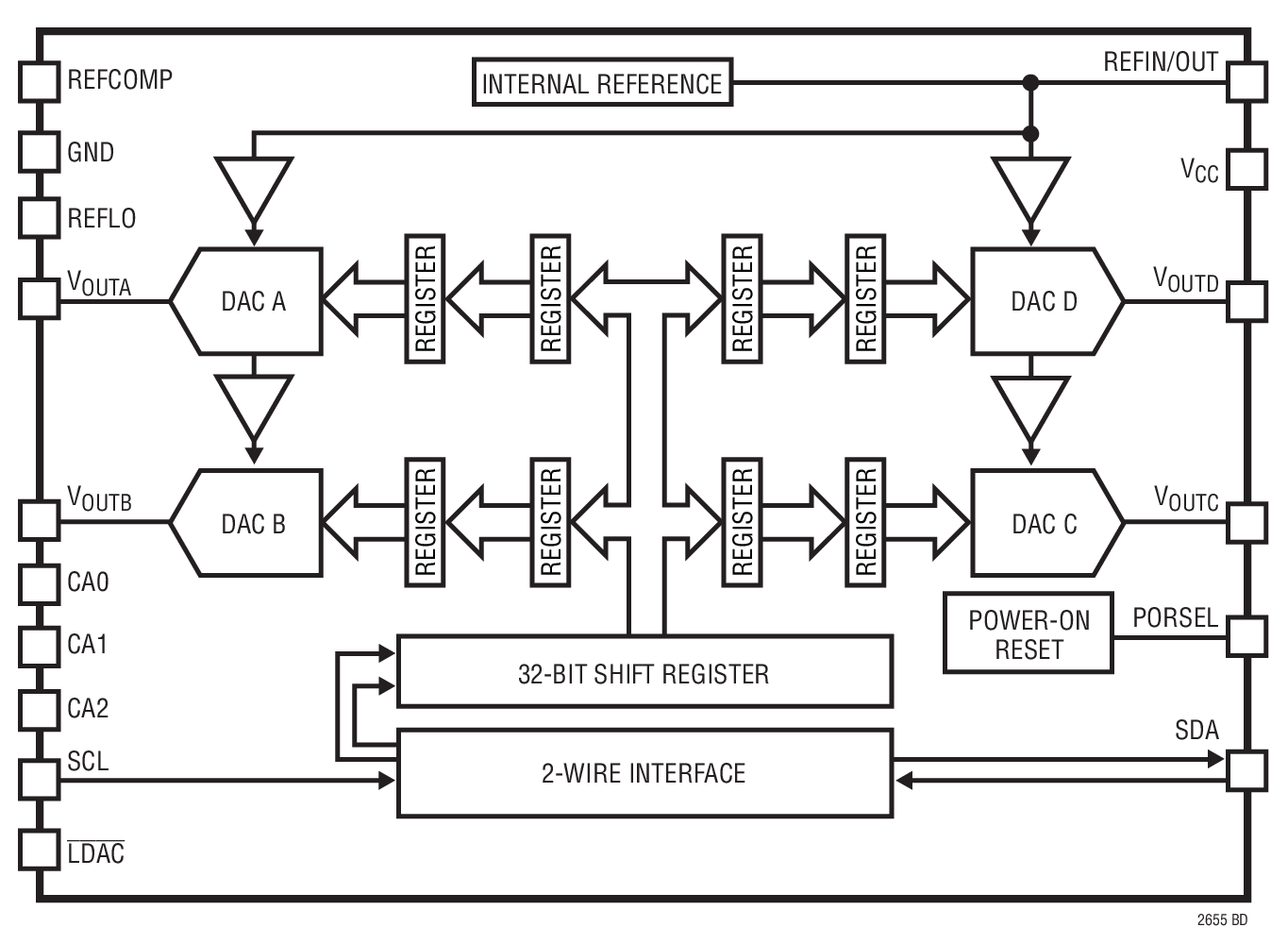

The LTC2655 is a family of Quad I²C 16-/12-Bit Rail-to-Rail DACs with integrated 10ppm/°C max reference. The DACs have built-in high performance, rail-to-rail, output buffers and are guaranteed monotonic. The LTC2655-L has a full-scale output of 2.5V with the integrated reference and operates from a single 2.7V to 5.5V supply. The LTC2655-H has a full-scale output of 4.096V with the integrated reference and operates from a 4.5V to 5.5V supply. Each DAC can also operate with an external reference, which sets the full-scale output to 2 times the external reference voltage.

The parts use the 2-wire I²C compatible serial interface. The LTC2655 operates in both the standard mode (maximum clock rate of 100kHz) and the fast mode (maximum clock rate of 400kHz). The LTC2655 incorporates a power-on reset circuit that is controlled by the PORSEL pin. If PORSEL is tied to GND the DACs power-on reset to zero-scale. If PORSEL is tied to V_CC, the DACs power-on reset to mid-scale.

Applications

• Mobile Communications
• Process Control and Industrial Automation
• Instrumentation
• Automatic Test Equipment
• Automotive
