AD9755
  • AD9755

AD9755

PRODUCTION

14-Bit, 300 MSPS High Speed TxDAC+® D/A Converter

Analog Devices AD9755 Product Info

10 February 2026 6

Features

  • 14-Bit Dual Muxed Port DAC
  • 300 MSPS Output Update Rate
  • Excellent SFDR and IMD Performance
  • SFDR to Nyquist @ 25 MHz Output: 71 dB
  • Internal Clock Doubling PLL
  • Differential or Single-Ended Clock Input
  • On-Chip 1.2 V Reference
  • Single 3.3 V Supply Operation
  • Power Dissipation: 155 mW @ 3.3 V
  • 48-Lead LQFP

Part details & applications

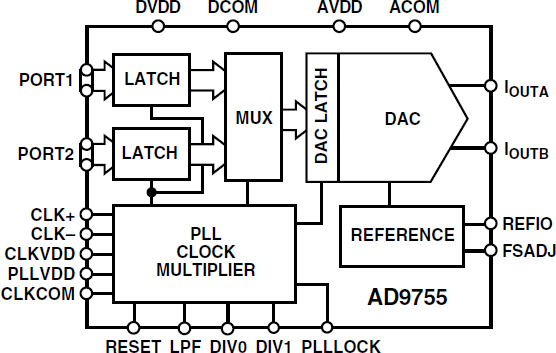

The AD9755 is a dual muxed port, ultra high-speed, single channel,14-bit CMOS DAC. It integrates a high-quality 14-bit TxDAC core, a voltage reference, and digital interface circuitry into a small 48-lead LQFP package. The AD9755 offers exceptional AC and DC performance while supporting update rates up to 300 MSPS.
