Analog Devices LTC1450 Product Info

• Guaranteed Monotonic
• Buffered True Rail-to-Rail Voltage Output
• 12-Bit Resolution
• 3V Operation (LTC1450L) I_CC: 250µA Typ
• 5V Operation (LTC1450) I_CC: 400µA Typ
• Parallel 12-Bit or 8 + 4-Bit Double Buffered Digital Input
• Internal Reference
• Output Buffer Configurable to Gain of 1 or 2
• Configurable as a Multiplying DAC
• Internal Power-On Reset

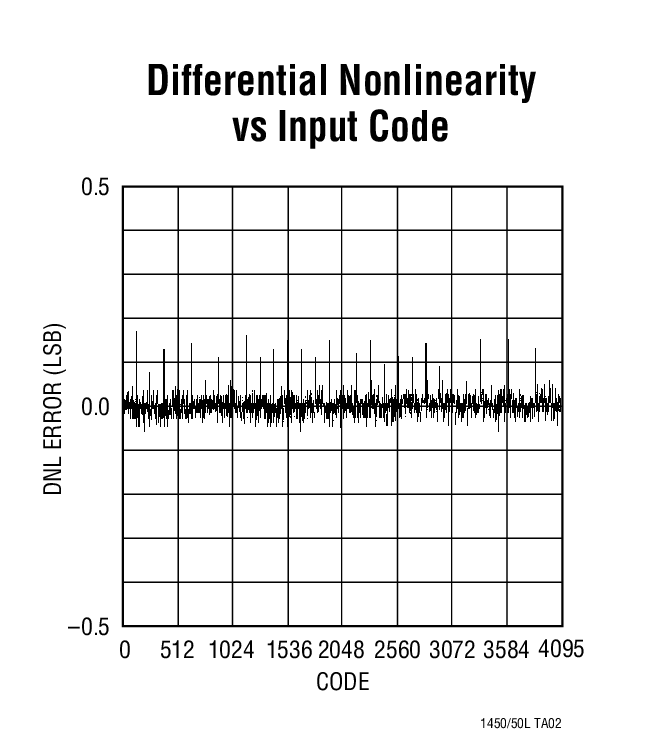

• Maximum DNL Error: 0.5LSB

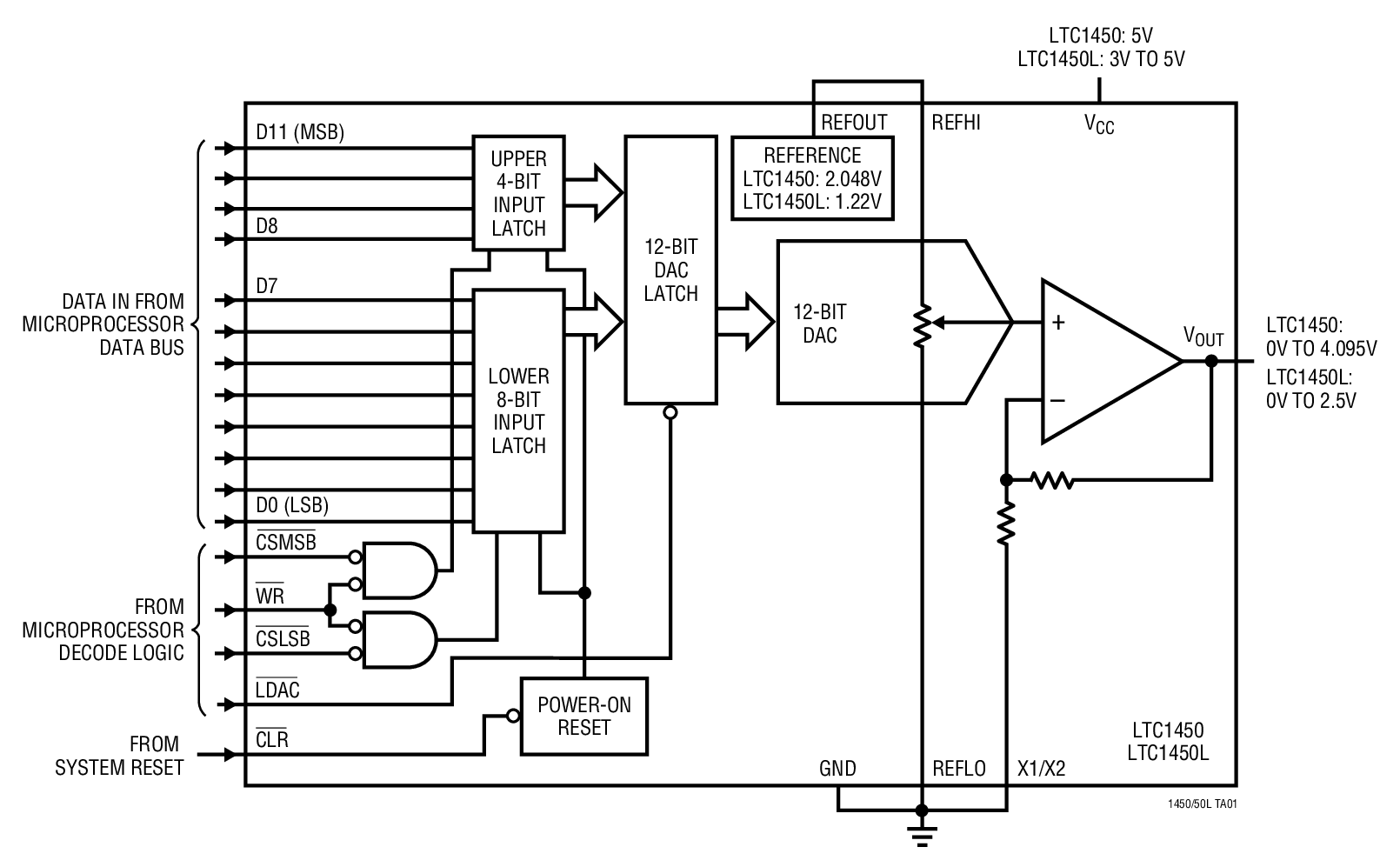

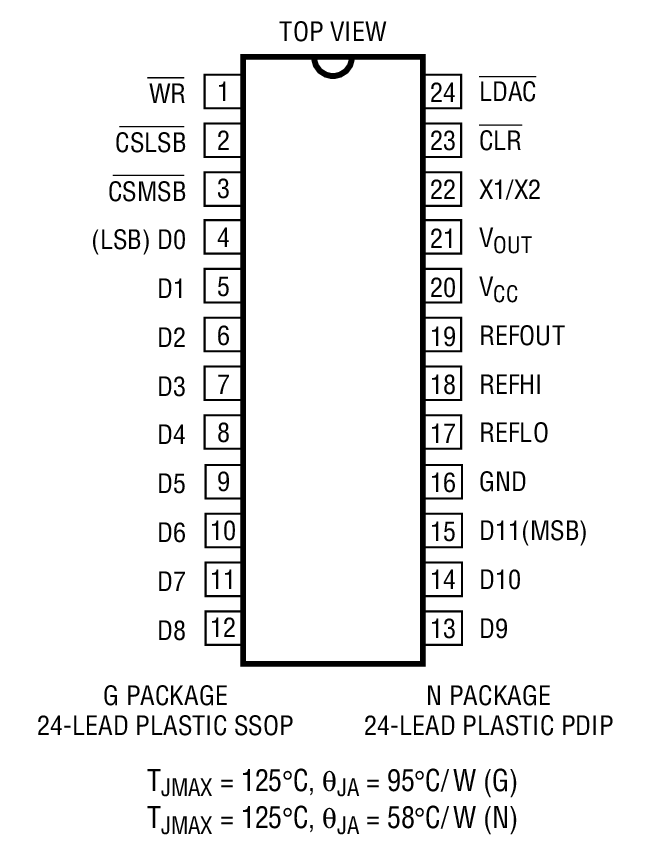

The LTC1450/LTC1450L are complete single supply, rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in a 24-pin SSOP or PDIP package. They include an output buffer amplifier, reference and a double buffered parallel digital interface.

The LTC1450 operates from a 4.5V to 5.5V supply. The output can be pin strapped for 4.095V or 2.048V full-scale. It has a 2.048V internal reference.

The LTC1450L operates from a 2.7V to 5.5V supply. The output can be pin strapped for 2.5V or 1.22V full-scale. It has a 1.22V internal reference.

The LTC1450/LTC1450L offer true stand-alone performance. In addition, the reference output, high and low reference inputs and gain setting resistor are brought to pins for maximum flexibility.

Applications

• Digital Calibration
• Industrial Process Control
• Automatic Test Equipment
• Arbitrary Function Generators
• Battery-Powered Data Conversion Products
• Feedback Control Loops and Gain Control
