Analog Devices DS2413 Product Info

• Controls Dual Programmable High Voltage, High Current I/O Port Pins from a Single Micro Port Pin
  • Open-Drain Programmable I/O Pins Support 20mA max Continuous Current Sink
  • 28V (max) PIO Pin Operating Voltage
  • On-Resistance of PIO Pulldown Transistor 20Ω max; OFF Resistance 1MΩ min
  • Parasitic Power Supply Through 1-Wire
• Minimalist 1-Wire Interface Lowers Cost and Interface Complexity
  • Communicates to Host with a Single Digital Signal at 14.9kb or 100kbps
  • Switchpoint Hysteresis and Filtering to Optimize Performance in the Presence of Noise
  • 1-Wire IO Pin Supports 28V Absolute Maximum DC Level for Fault Conditions
  • Unique 64-bit ROM Serial Number Factory Lasered Into Each Device
  • High ESD Immunity of 1-Wire IO Pin: 8kV HBM Typical
  • TSOC and TDFN Packages Available
• Wide Voltage and Temperature Operating Ranges Enables Robust System Performance
  • 2.8V to 5.25V
  • 0°C to +70°C

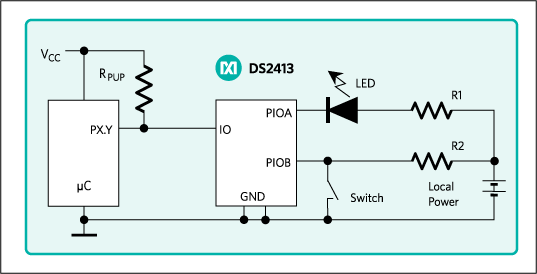

The DS2413 is a dual-channel programmable I/O 1-Wire® chip. The PIO outputs are configured as open-drain and provide up to 20mA continuous sink capability and off-state operating voltage up to 28V. Control and sensing of the PIO pins is performed with a dedicated device-level command protocol. To provide a high level of fault tolerance in the end application, the 1-Wire I/O and PIO pins are all capable of withstanding continuous application of voltages up to 28V max. Communication and operation of the DS2413 is performed with the single contact Maxim 1-Wire serial interface.

Applications

• Accessory Identification and Control
• General Purpose Input/Output
• Industrial Controllers
• Key-Pick Systems
• LED Control
• System Monitoring
