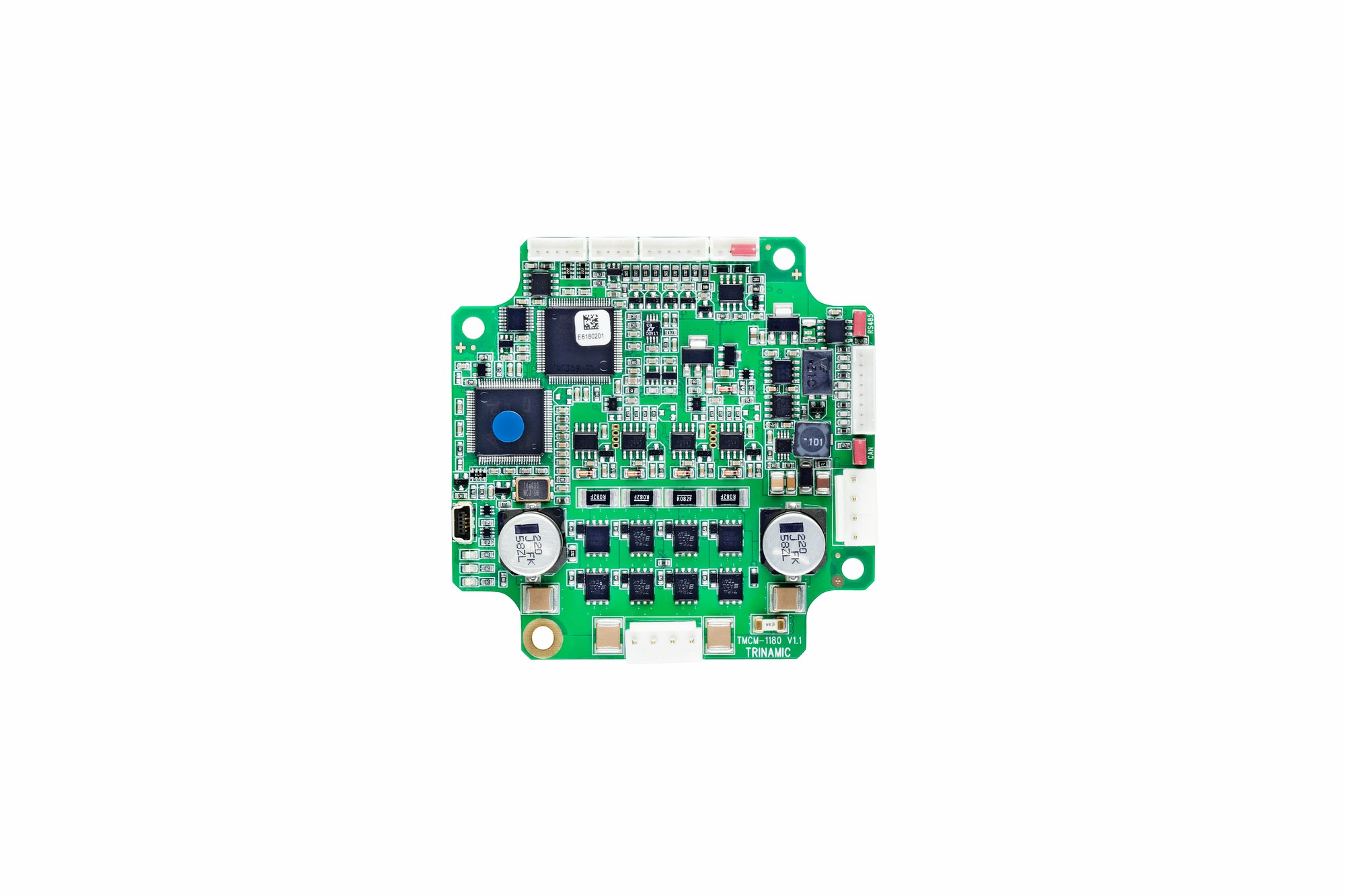

TMCM-1180

RECOMMENDED FOR NEW DESIGNS

Motor mountable stepper motor controller/driver module 18 to 55V, 5.5A, 256 µSteps, with USB, S/D, RS232 and RS485 Interface, StallGuard, CoolStep

Analog Devices TMCM-1180 Product Info

10 February 2026 5

Features

Electrical data

Supply voltage: +24V DC or +48V DC nominal
Motor current: up to 5.5A RMS (programmable)

PANdrive motor

Two phase bipolar stepper motor with up to 5.5A RMS nom. coil current
Holding torque: 7Nm

Encoder

Integrated sensOstep^™ mmagnetic encoder (max. 256 increments per rotation) e.g. for step-loss detection under all operating conditions and positioning

Integrated motion controller

Motion profile calculation in real-time (TMC428/429 motion controller)
On the fly alteration of motor parameters (e.g. position, velocity, acceleration)
High performance microcontroller for overall system control and serial communication protocol handling

Interfaces

Inputs for stop switches (left and right) and home switch
General purpose inputs and 2 general purpose outputs
USB, RS232, RS485 and CAN (2.0B up to 1Mbit/s) communication interfaces

Bipolar stepper motor driver

Up to 256 microsteps per full step
High-efficient operation, low power dissipation
Dynamic current control
Integrated protection
stallGuard2^™ feature for stall detection
coolStep^™ feature for reduced power consumption and heat dissipation

Safety features

Shutdown input. The driver will be disabled in hardware as long as this pin is left open or shorted to ground
Separate supply voltage inputs for driver and digital logic – driver supply voltage may be switched off externally while supply for digital logic and therefore digital logic remains activ

Part details & applications

The TMCM-1180 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic StallGuard2^™, CoolStep^™ and SpreadCycle^™ chopper technology and has a trapezoidal ramp generator. The TMCM-1180 is capable of driving up to 7.8A of current from each output (with proper heatsinking). It is designed for an operating voltage of 18 to 55V. The device provides a RS485, CAN, USB, S/D and encoder interface. An integrated protocol processor supplies a high level TMCL/ CANopen communication.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE
