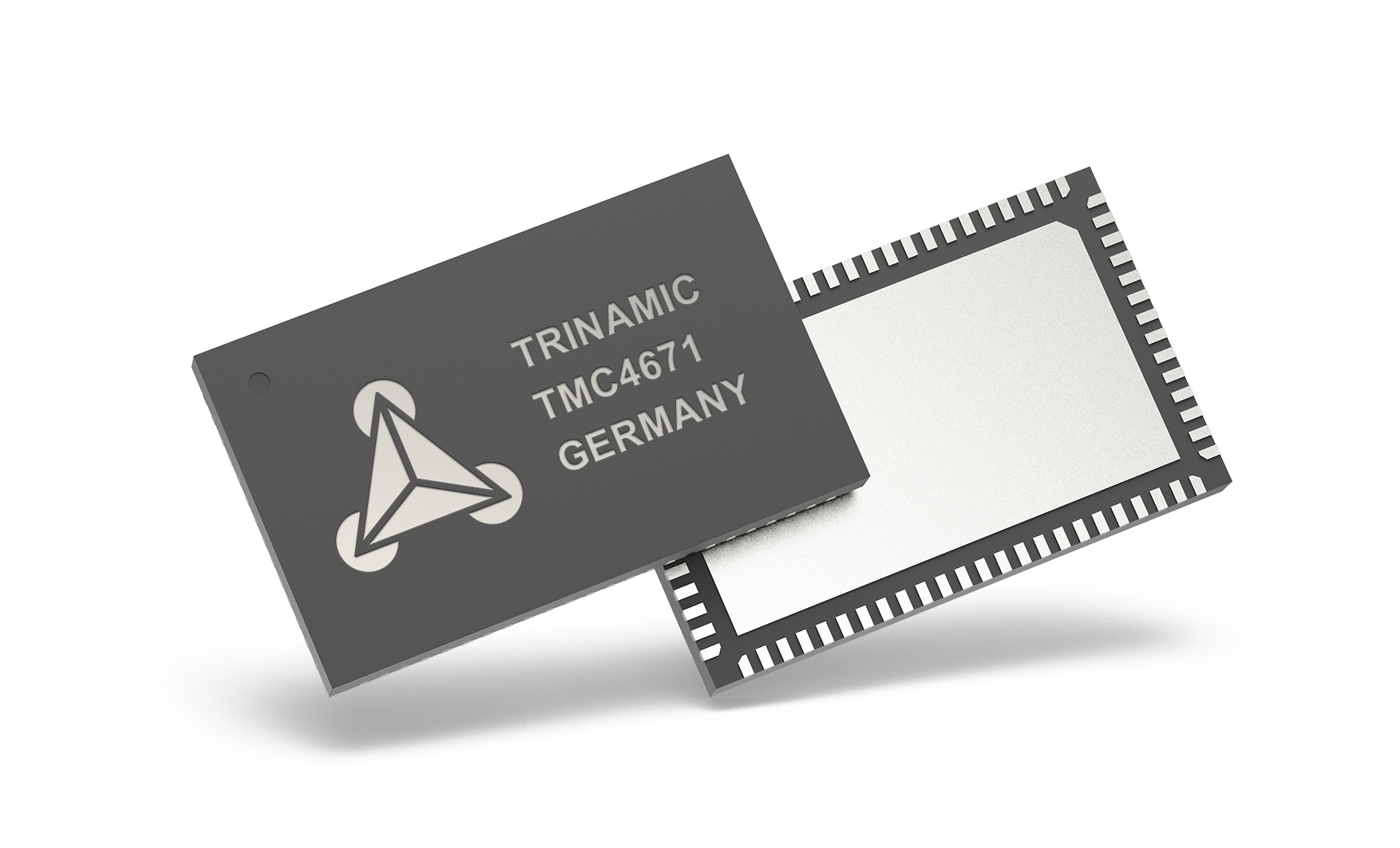

TMC4671

RECOMMENDED FOR NEW DESIGNS

Fully integrated servo controller, providing Field Oriented Control for BLDC/PMSM and 2-phase Stepper Motors as well as DC motors and voice coils.

Analog Devices TMC4671 Product Info

10 February 2026 4

Features

Servo Controller w/ Field Oriented Control (FOC)
Torque Control (FOC) Velocity Control, Position Control
Integrated ADCs, ∆Σ-ADC front-end
Encoder Engine: Hall analog/digital, Encoder analog/digital

Supports 3-Phase PMSM/BLDC, 2-Phase Stepper Motors, and 1-Phase DC Motors
Fast PWM Engine (25kHz to 100kHz)
Application SPI + Debug (UART, SPI)
Step-Direction Interface (S/D)

Part details & applications

The TMC4671 is a fully integrated servo controller, providing Field Oriented Control (FOC) for BLDC/PMSM and 2-phase stepper motors as well as DC motors and voice coils. All control functions are implemented in hardware. Integrated ADCs, position sensor interfaces, position interpolators, enable a fully functional servo controller for a wide range of servo applications.

If you like to see a step by step guide on driving a linear stage with the TMC4671, please visit the blog post where one of ADI Trinamic's Engineers explains in 3 posts how to set up your linear stage, how to tune the controller using the TMCL-IDE, and how to adapt the firmware to your own project.

Quick Setup Guide

APPLICATIONS:

Robotics
Pick and Place Machines
Factory Automation
E-Mobility
Laboratory Automation
Blowers
Pumps
