ADPL44001

RECOMMENDED FOR NEW DESIGNS

4V to 40V, 100mA, Ultra-Low Quiescent Current, Linear Regulator

Analog Devices ADPL44001 Product Info

10 February 2026 8

Features

Easy to Use

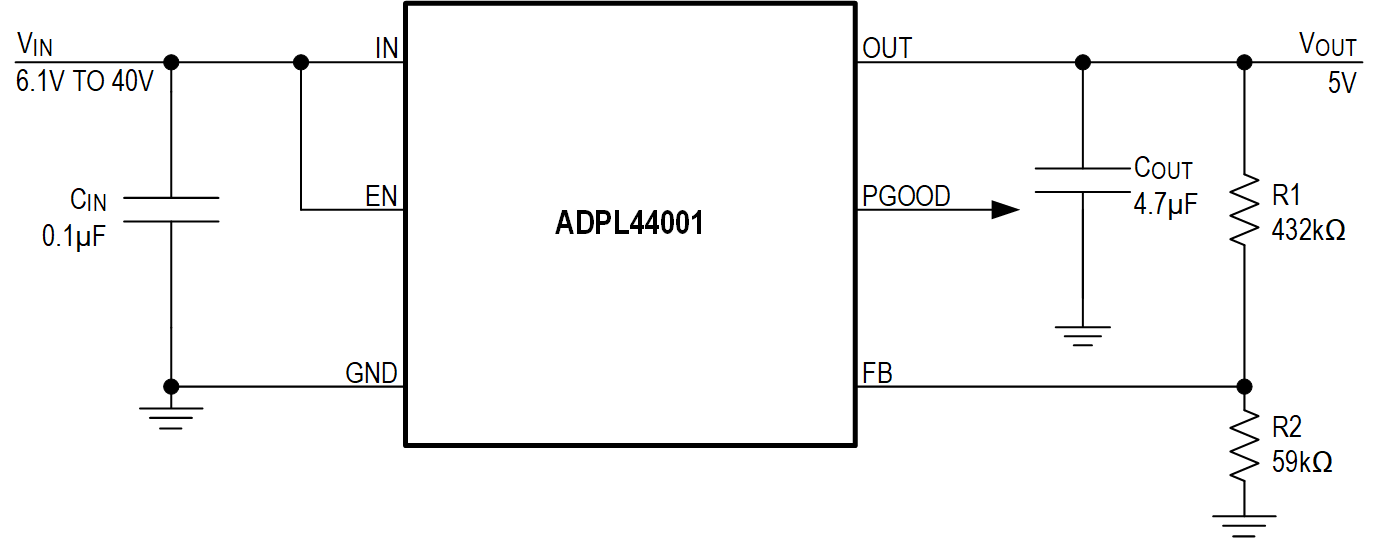

- Only 4 External Components Required
- Stable with Tiny 4.7μF, 0805 Output Capacitor
- All Ceramic Capacitors, Compact Layout
Reduces Number of Linear Regulators to Stock
- Wide 4V to 40V Input Voltage Range
- Adjustable 0.6V to 38V Output
- Up to 100mA Load Current Capability

Operates Reliably in Adverse Industrial Environments
- Built-In Output Voltage Monitoring with PGOOD Pin
- High-Voltage ENABLE Input
- Low 8μA Quiescent Current
- Low Dropout Voltage of 560mV at 100mA
- Overload Protection
- Overtemperature Protection
- Wide -40°C to +125°C Ambient Operating Temperature Range/-40°C to +150°C Junction Temperature Range

Part details & applications

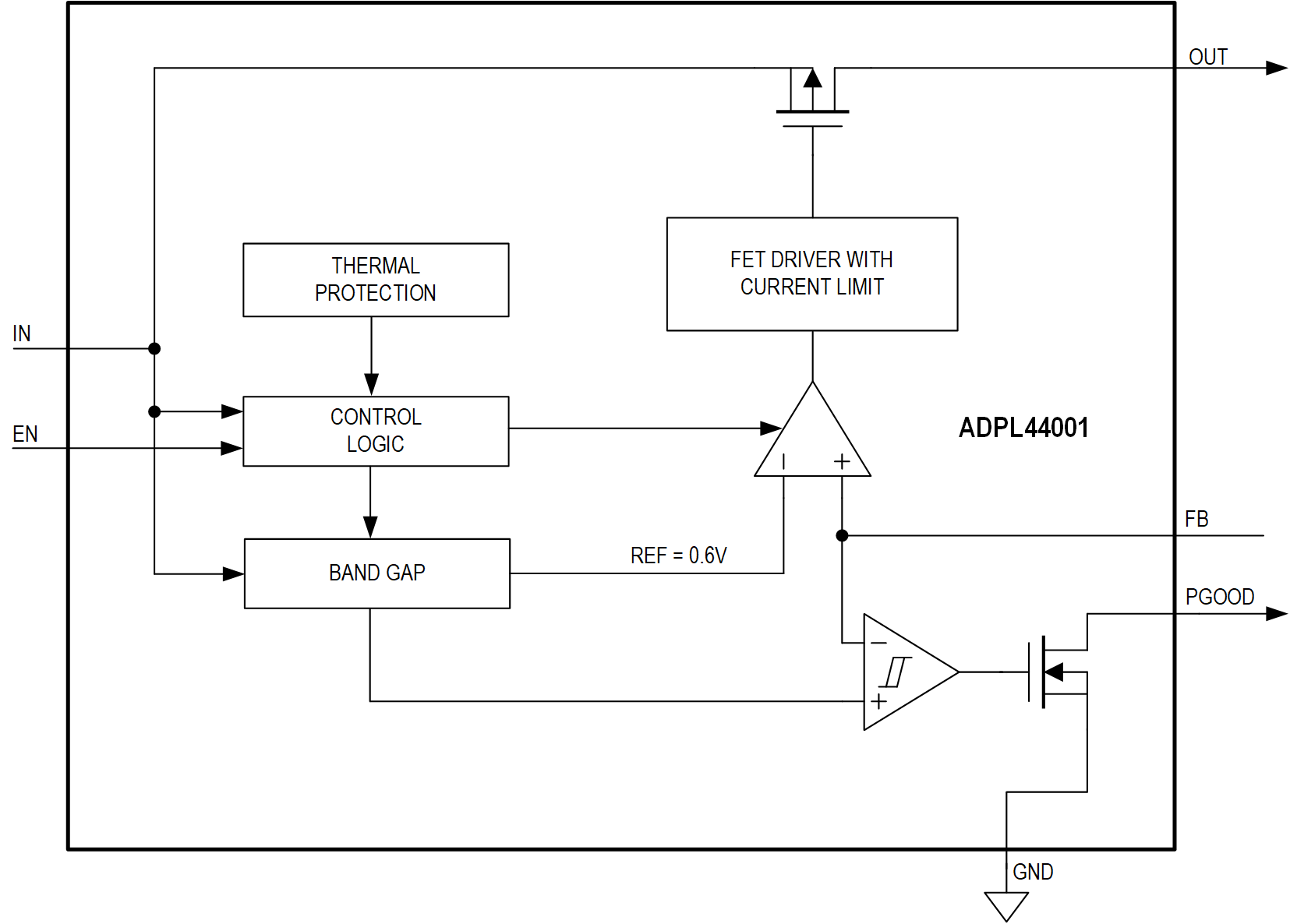

The ADPL44001 ultra-low quiescent current, highvoltage linear regulator is ideal for use in industrial and battery-operated systems. The device operates from a 4V to 40V input voltage, delivers up to 100mA of load current, and consumes only 8μA of quiescent current at no load. The device consumes only 0.9μA current when in shutdown. Output voltage is adjustable in the 0.6V to 38V voltage range. Feedback voltage accuracy is ±2% over temperature.

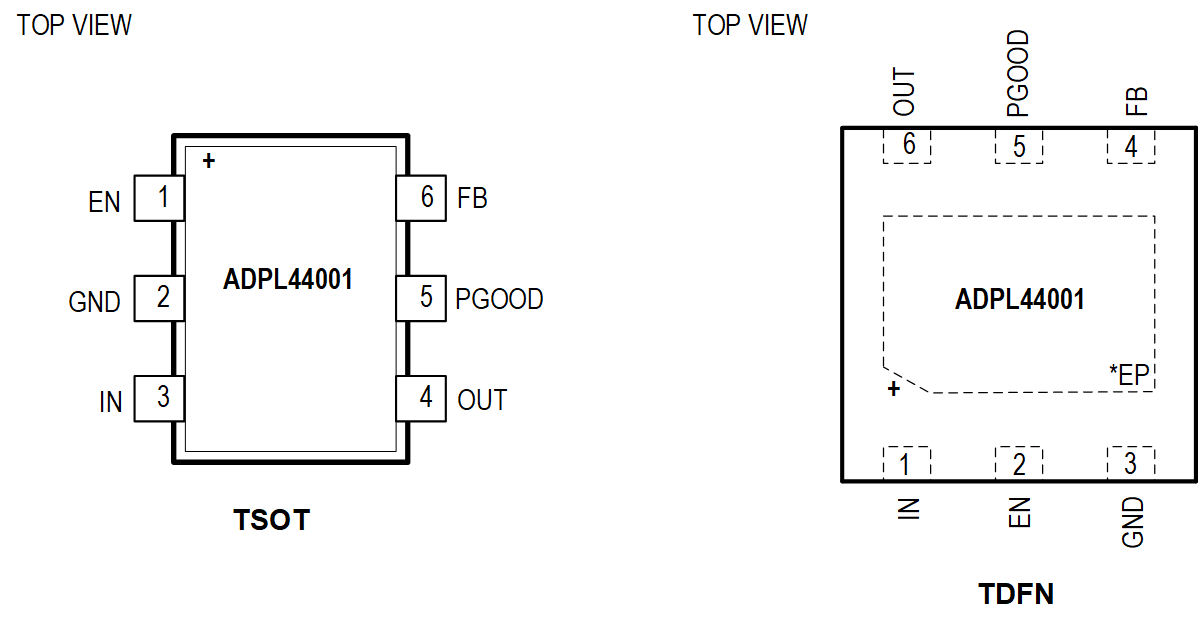

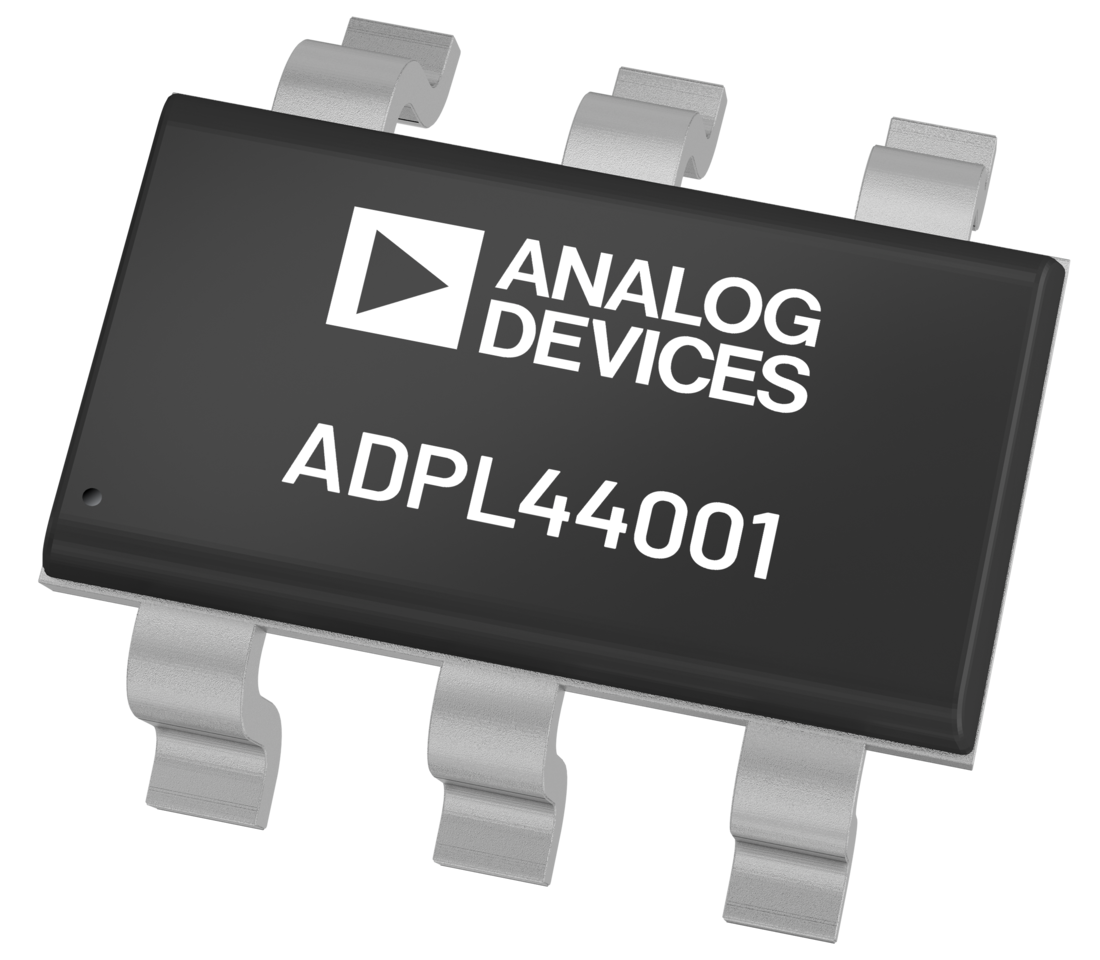

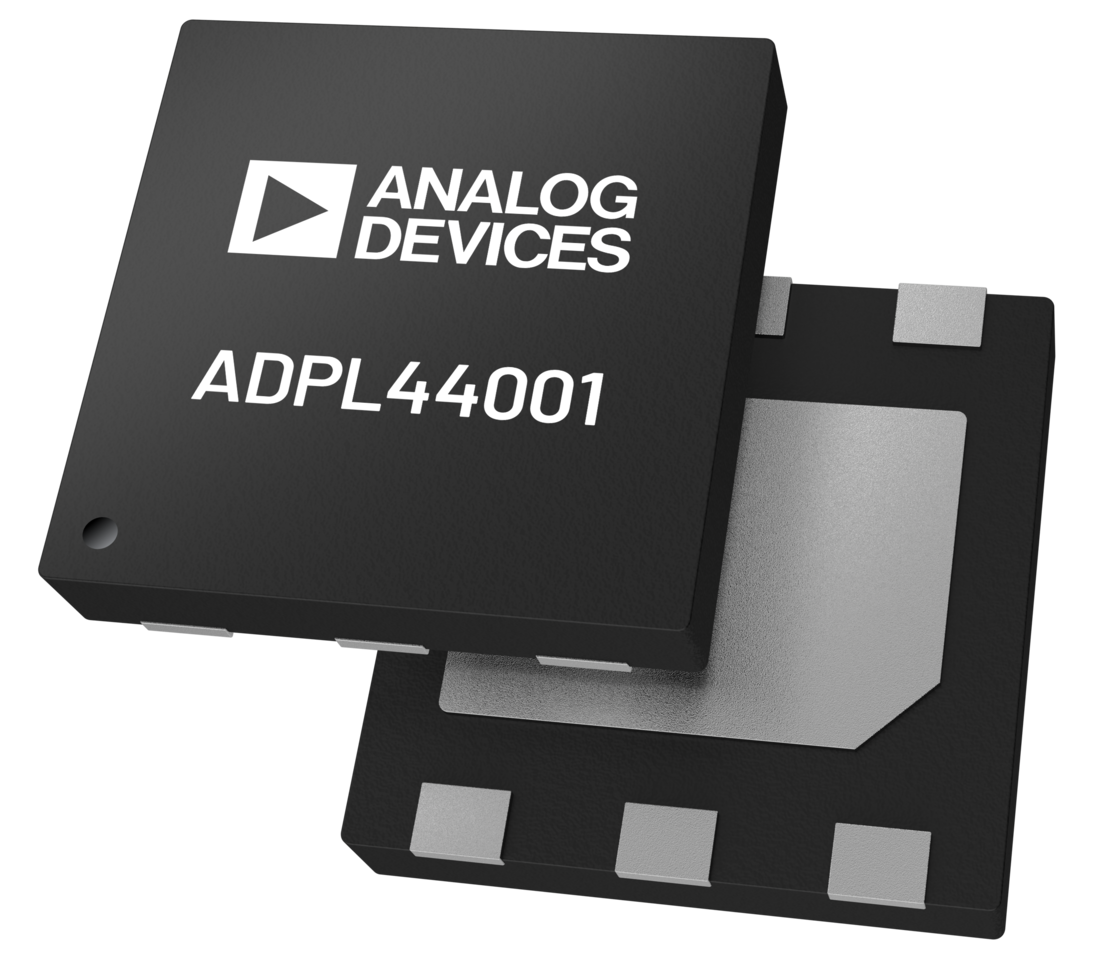

An open-drain PGOOD pin provides a power-good signal to the system, achieving successful regulation of the output voltage. The device also incorporates an enable pin (EN) that allows the user to turn the part on or off. The device has a thermal shutdown feature that shuts down the part when the die temperature exceeds 165°C. The ADPL44001 operates over the -40°C to +125°C industrial temperature range and is available in a 6-lead, compact TSOT and a 6-pin (3mm x 3mm) TDFN packages.

APPLICATIONS

Medical and Healthcare
Battery-Powered Equipment
Post Regulator for Switching Power Supplies
Home and Building Automation
Appliances and White Goods
