• Upconversion or Downconversion

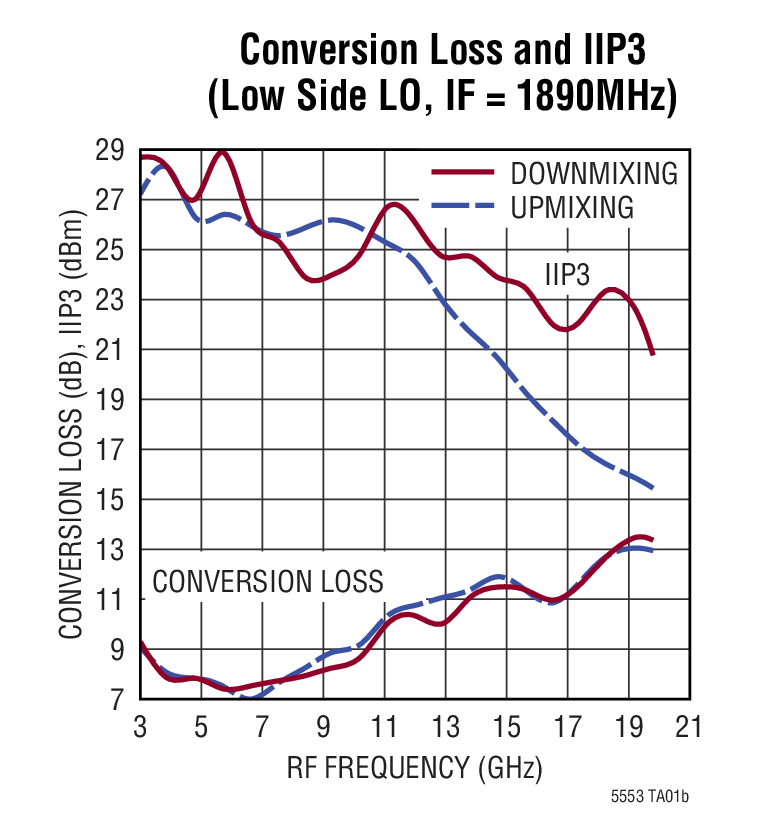

• High IIP3:
  • +24.3dBm at 10GHz
  • +21.5dBm at 17GHz
• 9dB Conversion Loss at 10GHz
• +16dBm Input P1dB at 10GHz
• Integrated LO Buffer: 0dBm LO Drive
• Low LO-RF Leakage: <–25dBm
• 50Ω Wideband Matched RF, LO and IF Ports
• 3.3V/132mA Supply
• Fast Turn ON/OFF for TDD Operation

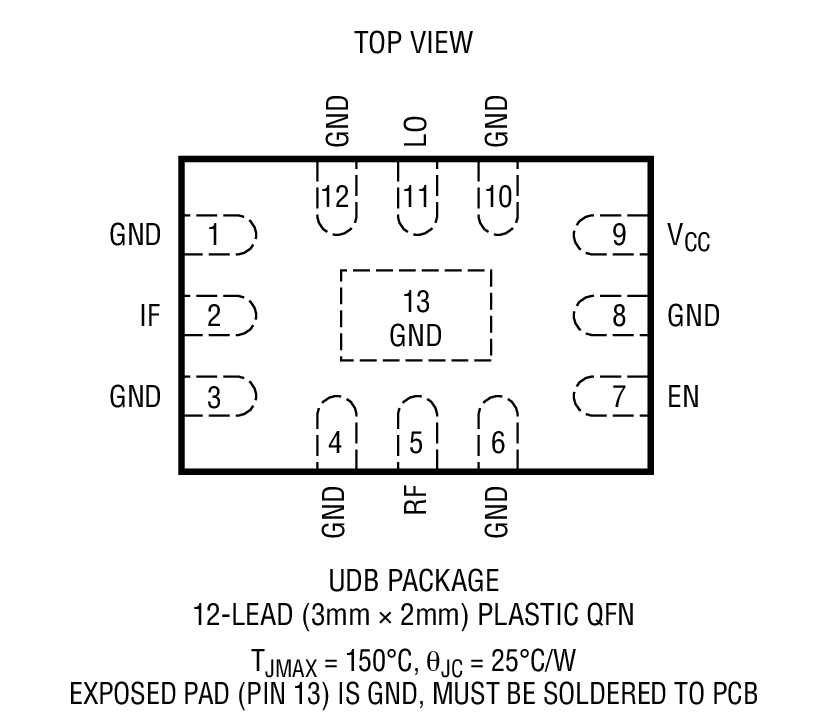

• 3mm × 2mm, 12-Lead QFN Package

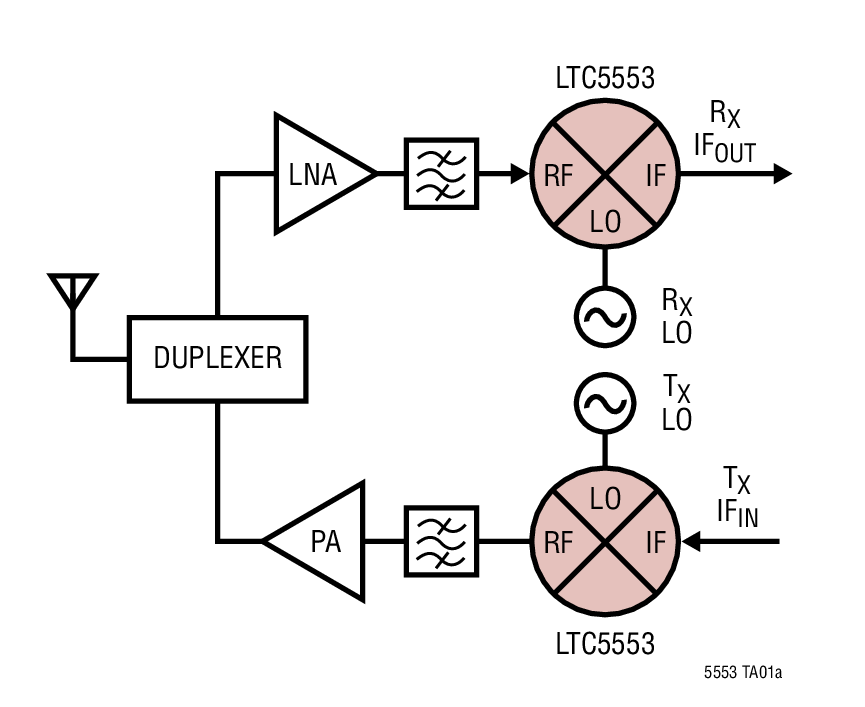

The LTC5553 is a high performance, microwave double balanced passive mixer that can be used for frequency upconversion or downconversion.

The LTC5553’s mixer and integrated RF balun are optimized to cover the 3GHz to 20GHz RF frequency range. The device includes an integrated LO amplifier optimized for the 1GHz to 20GHz frequency range, requiring only 0dBm drive. The integrated IF balun is optimized to cover a very wide, 500MHz to 9GHz, frequency range while providing a single-ended 50Ω interface.

The LTC5553 delivers exceptionally high IIP3 and P1dB, in addition to low LO to RF and LO to IF leakages. The part also offers a high level of integration in a small package.

Applications

• 5G Broadband Wireless Access
• Microwave Transceivers
• Wireless Backhaul
• Point-to-Point Microwave
• Phased-Array Antennas
• C, X and Ku Band RADAR
• Test Equipment
• Satellite Modems
