ADMV1555

RECOMMENDED FOR NEW DESIGNS

15 GHz to 55 GHz, GaAs, MMIC, Wideband I/Q Mixer

Analog Devices ADMV1555 Product Info

10 February 2026 7

Features

Passive: no DC bias required
Conversion loss: 8 dB typical
Input IP3: 20 dBm typical
Image rejection: 25 dBc typical
LO to IF isolation: 30 dB typical

LO to RF isolation: 40 dB typical
Input P1dB: 15 dBm typical
IF pin frequency: DC to 18 GHz
20-terminal, RoHS compliant, 5 mm × 5 mm, LGA package

Part details & applications

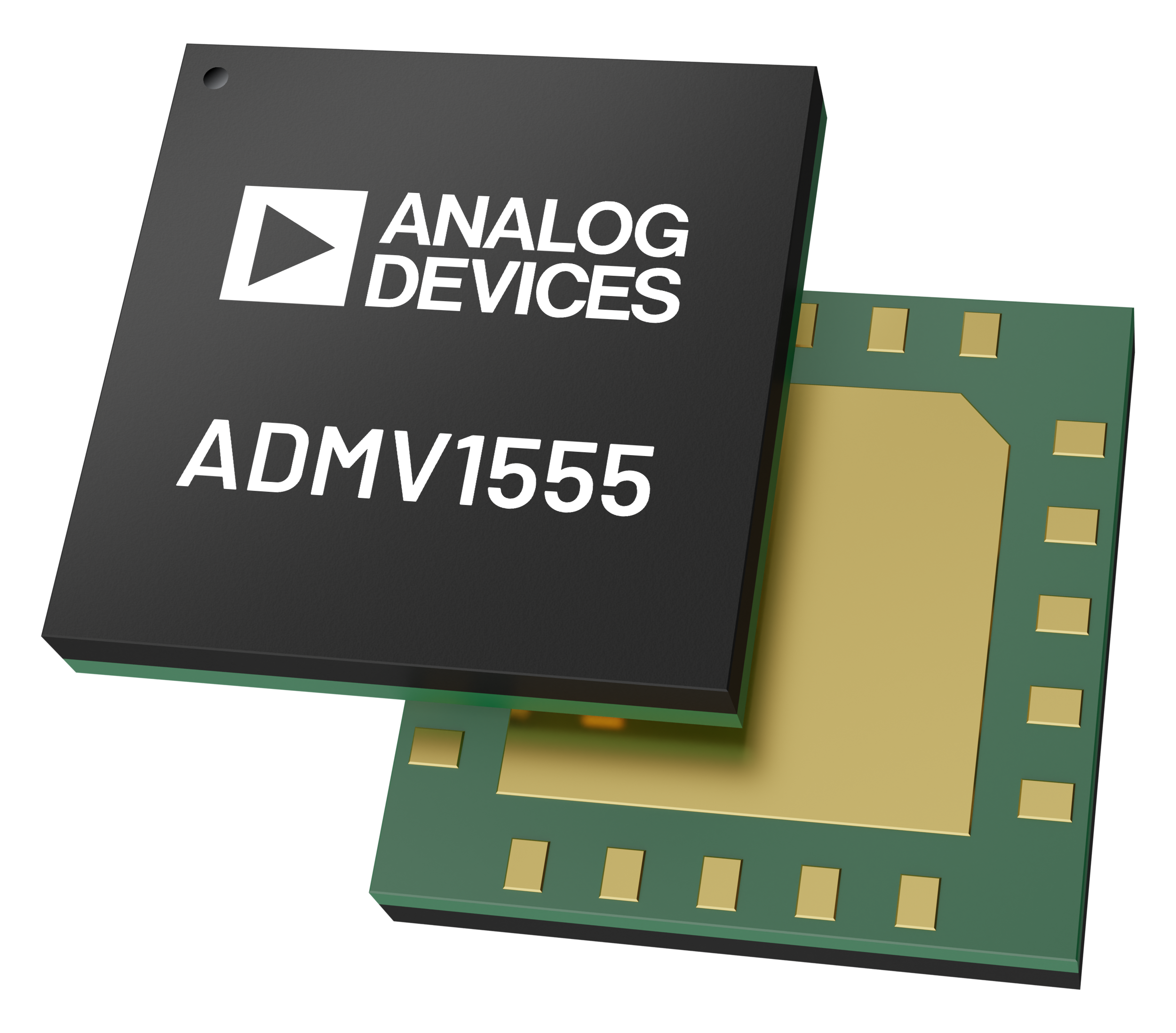

The ADMV1555 is a compact, in phase quadrature (I/Q) mixer in a leadless, RoHS compliant, surface-mount technology (SMT), land grid array (LGA) package. The device can be used as either an image reject mixer or a single sideband upconverter. The ADMV1555 uses two standard double balanced mixer cells and a 90° hybrid fabricated in a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC) process and requires no external components or matching circuitry. It is a much smaller alternative to a hybrid style image reject mixer and an SSB upconverter assembly. The RoHS compliant ADMV1555 eliminates the need for wire bonding, allowing the use of surface-mount manufacturing techniques.

APPLICATIONS

Microwave and very small aperture terminal (VSAT) radios

Test equipment

Military electronic warfare (EW)

Electronic countermeasure (ECM)

Command, control, communications, and intelligence (C3I)
