ADH557AS

RECOMMENDED FOR NEW DESIGNS

Aerospace, GaAs, MMIC, Fundamental Mixer, 2.5 GHz to 7 GHz

Analog Devices ADH557AS Product Info

10 February 2026 5

Features

Conversion Loss:
- 8 dB Typ. from 2.5 GHz to 5 GHz
- 8.5 dB Typ. from 5 GHz to 7 GHz
LO to RF Isolation:
- 50 dB Typ. from 2.5 GHz to 5 GHz
- 43 dB Typ. from 5 GHz to 7 GHz
LO to IF Isolation:
- 35 dB Typ. from 2.5 GHz to 5 GHz
- 33 dB Typ. from 5 GHz to 7 GHz
Input Third-Order Intercept (IIP3): 18 dBm Typ. from 2.5 GHz to 7 GHz
Input Second-Order Intercept (IIP2): 55 dBm Typ. from 2.5 GHz to 7 GHz

LO Port Return Loss:
- 8 dB Typ. from 2.5 GHz to 5 GHz
- 12 dB Typ. from 5 GHz to 7 GHz
RF Port Return Loss:
- 10 dB Typ. from 2.5 GHz to 5 GHz
- 12 dB Typ. from 5 GHz to 7 GHz
Passive double-balanced topology
Wide IF frequency range: DC to 3 GHz

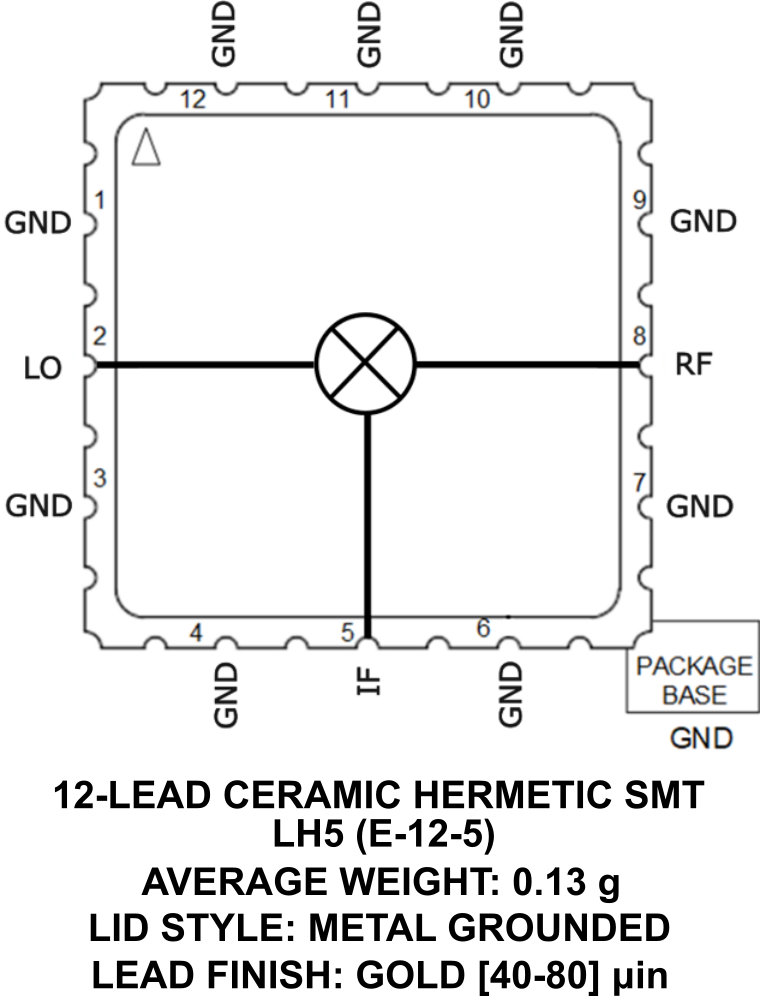

12-Lead Hermetic SMT Package
Screened in accordance with MIL-PRF-38535, Class Level S

Part details & applications

The ADH557AS is a general-purpose, double balanced mixer in a 12-lead hermetic SMT package that can be used as an upconverter or downconverter from 2.5 GHz to 7 GHz. This mixer is fabricated in a gallium arsenide (GaAs) metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry. The ADH557AS provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) isolation due to optimized balun structures and operates with a LO drive level of 15 dBm Typ.

Applications

Point-to-point Radios
S & C-Band Communications
Instrumentation
Sensors
Military & Space
