Analog Devices MAX2051 Product Info

• 850MHz to 1550MHz RF Frequency Range
• 1200MHz to 2250MHz LO Frequency Range
• 50MHz to 1000MHz IF Frequency Range
• DOCSIS 3.0 and Euro DOCSIS Compatible
• 7.4dB Typical Conversion Loss
• 7.8dB Typical Noise Figure
• +24dBm Typical Input 1dB Compression Point
• +35dBm Typical Input IP3
• 88dBc Typical 2RF-LO Rejection at P_RF = -14dBm
• Integrated LO Buffer
• Integrated RF and LO Baluns for Single-Ended Inputs
• Low LO Drive (0dBm Nominal)
• External Current-Setting Resistor Provides Option for Operating Device in Reduced-Power/Reduced-Performance Mode

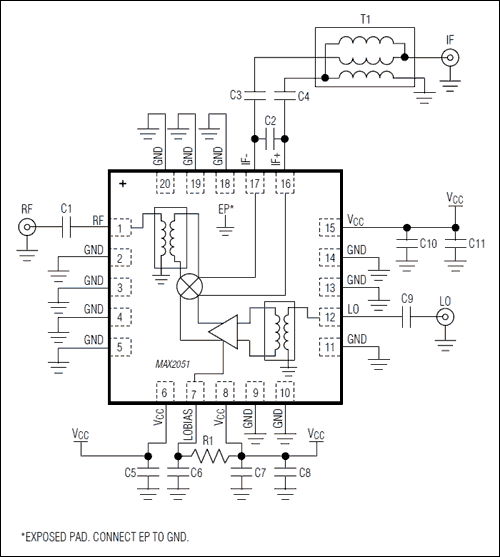

The MAX2051 high-linearity, up/downconversion mixer provides +35dBm input IP3, 7.8dB noise figure (NF), and 7.4dB conversion loss for 850MHz to 1550MHz wireless infrastructure and multicarrier cable head-end down-stream video, video-on-demand (VOD), and cable modem termination systems (CMTS) applications. The MAX2051 also provides excellent suppression of spurious intermodulation products (> 77dBc at an RF level of -14dBm), making it an ideal downconverter for DOCSIS® 3.0 and Euro DOCSIS cable head-end systems. With an LO circuit tuned to support frequencies ranging from 1200MHz to 2250MHz, the MAX2051 is ideal for high-side LO injection applications over an IF frequency range of 50MHz to 1000MHz.

In addition to offering excellent linearity and noise performance, the MAX2051 also yields a high level of component integration. The device integrates baluns in the RF and LO ports, which allow for a single-ended RF input and a single-ended LO input. The MAX2051 requires a typical LO drive of 0dBm and a supply current guaranteed to below 130mA.

The MAX2051 is available in a compact 5mm x 5mm, 20-pin thin QFN package with an exposed pad. Electrical performance is guaranteed over the extended temperature range, from T_C = -40°C to +85°C.

Applications

• Cable Modem Termination Systems
• Integrated Digital Enhanced Network (iDEN®) Base Stations
• Microwave and Fixed Broadband Wireless Access
• Microwave Links
• Military Systems
• Predistortion Receivers
• Private Mobile Radios
• Video-on-Demand and DOCSIS-Compliant Edge QAM Modulation
• WiMAX™ Base Stations and Customer Premise Equipment
• Wireless Local Loop
