ADG2128

PRODUCTION

I2C CMOS 8 X 12 Analog Switch Array with Dual/Single Supplies

Analog Devices ADG2128 Product Info

10 February 2026 5

Features

I²C compatible interface
- 3.4 MHz high speed I²C option

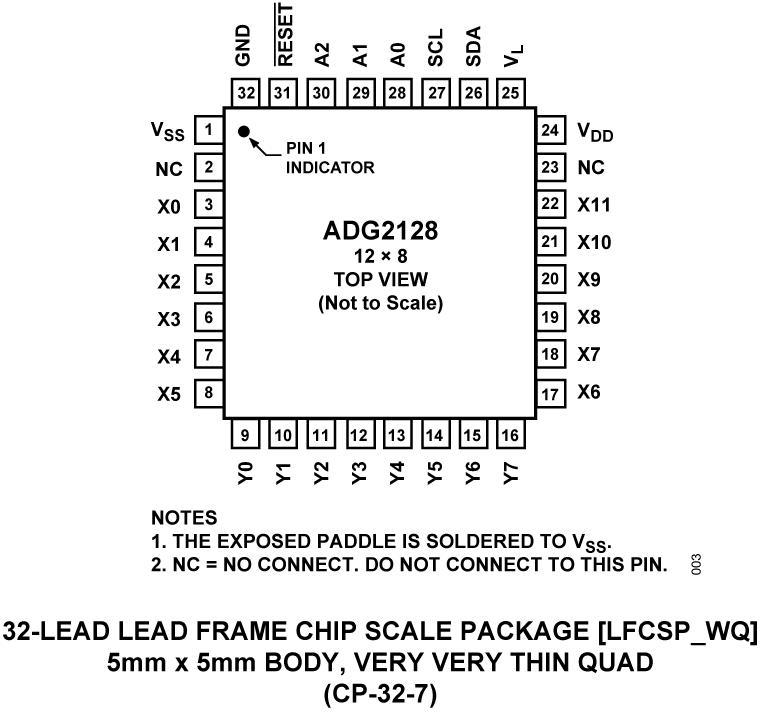

32-lead LFCSP (5 mm × 5 mm)
Double-buffered input logic
Simultaneous update of multiple switches

Up to 300 MHz bandwidth
Fully specified at dual ±5 V/single +12 V operation
On resistance 35 Ω maximum
Low quiescent current < 20 μA
Qualified for automotive applications

Part details & applications

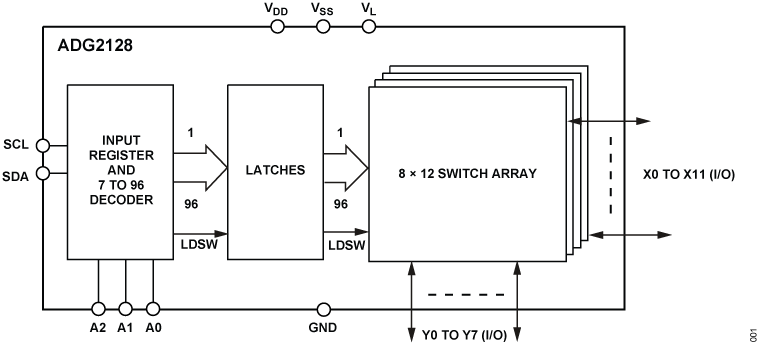

The ADG2128 is an analog cross point switch with an array size of 8 × 12. The switch array is arranged so that there are eight columns by 12 rows, for a total of 96 switch channels. The array is bidirectional, and the rows and columns can be configured as either inputs or outputs. Each of the 96 switches can be addressed and configured through the I²C compatible interface. Standard, full speed, and high speed (3.4 MHz) I²C interfaces are supported. Any simultaneous switch combination is allowed. An additional feature of the ADG2128 is that switches can be updated simultaneously, using the LDSW command. In addition, a RESET option allows all of the switch channels to be reset/off. At power-on, all switches are in the off condition. The device is packaged in a 32-lead, 5 mm × 5 mm LFCSP.

APPLICATIONS

AV switching in TV
Automotive infotainment
AV receivers
CCTV
Ultrasound applications
KVM switching
Telecom applications
Test equipment/instrumentation
PBX systems
