ADPL13602

RECOMMENDED FOR NEW DESIGNS

3.5V to 36V, 2.4A, High-Efficiency, Synchronous Step-Down DC-DC Converter

Analog Devices ADPL13602 Product Info

10 February 2026 5

Features

Reduces External Components and Total Cost
- No Schottky—Synchronous Operation
- Internal Compensation Components
- All-Ceramic Capacitors, Compact Layout
Reduces the Number of DC-DC Regulators to Stock

Wide 3.5V to 36V Input
Adjustable Output Voltage Range from 1V up to 90% of V_IN
Delivers Up to 2.4A Over the Temperature Range
400kHz to 1.5MHz Adjustable Frequency

Reduces Power Dissipation
- Peak Efficiency of 95%
- Wide 2.4V to 12V Bootstrap Bias Input (EXTVCC) for Improved Efficiency

Operates Reliably in Adverse Industrial Environments
- Hiccup-Mode Overload Protection
- Adjustable and Monotonic Startup with Prebiased Output Voltage
- Built-in Output-Voltage Monitoring with RESET
- Programmable EN/UVLO Threshold
- Wide Industrial -40°C to +125°C
- Ambient Operating Temperature Range or -40°C to +150°C Junction Temperature Range

Part details & applications

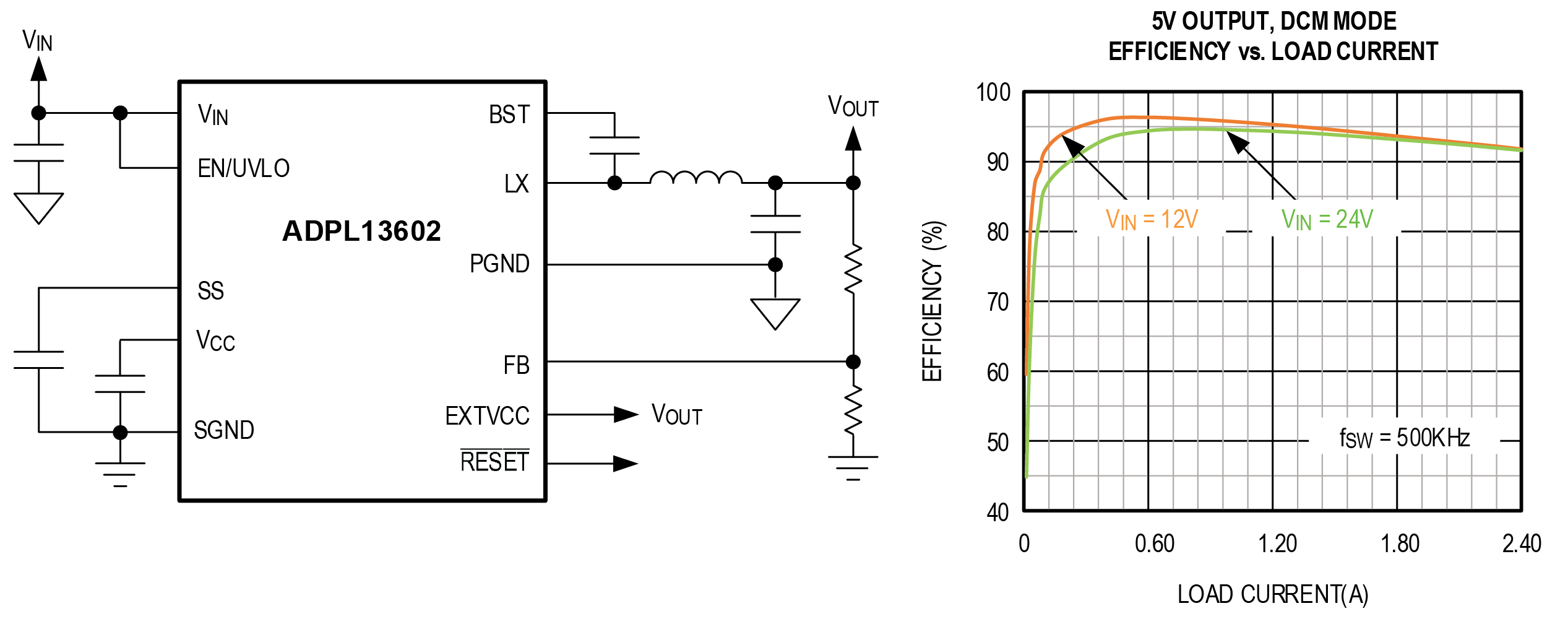

The ADPL13602 is a high-efficiency, synchronous stepdown DC-DC converter with integrated MOSFETs operating over an input-voltage range of 3.5V to 36V. It can deliver up to 2.4A current. Output voltage is programmable from 1V up to 90% of V_IN. Built-in compensation across the output-voltage range eliminates the need for external compensation components.

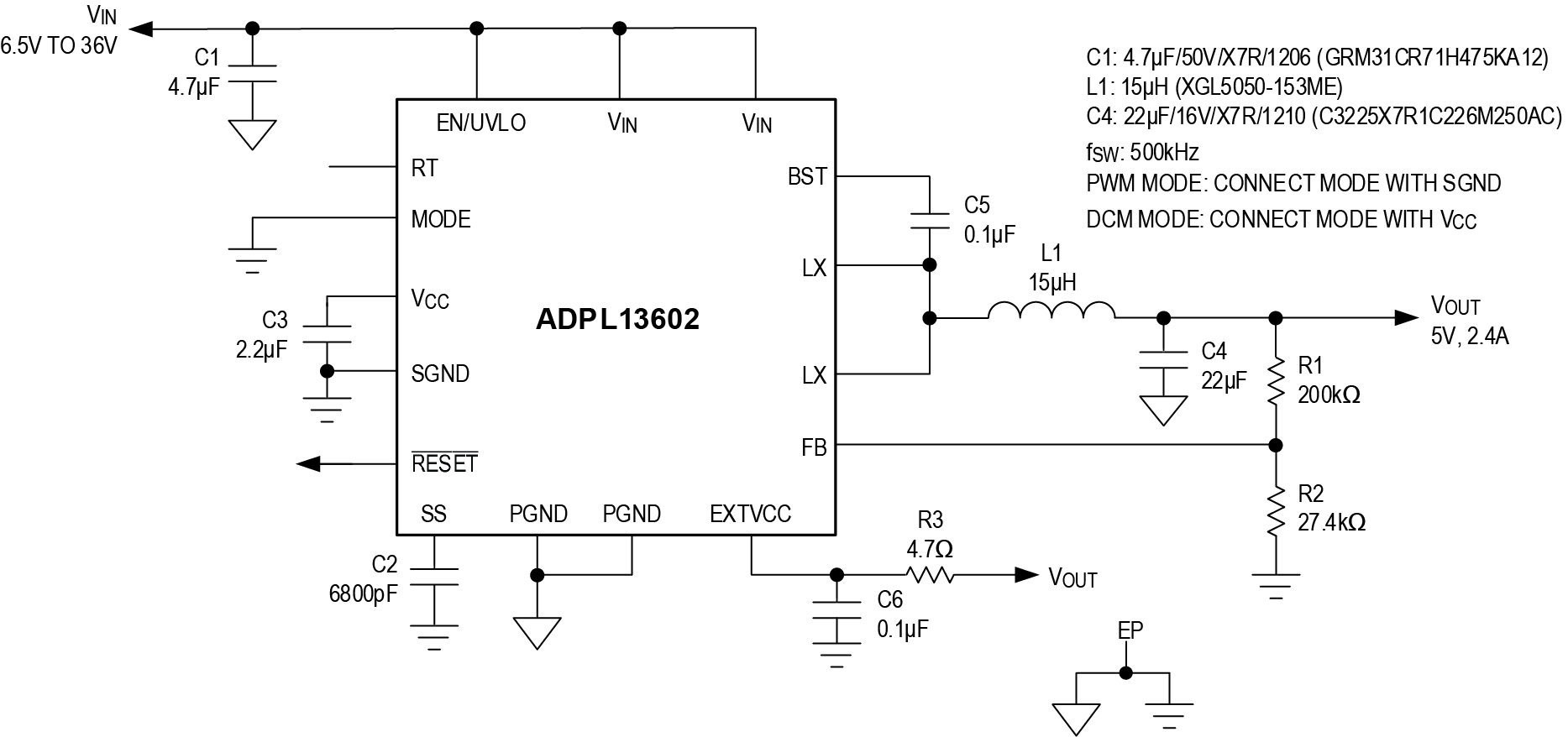

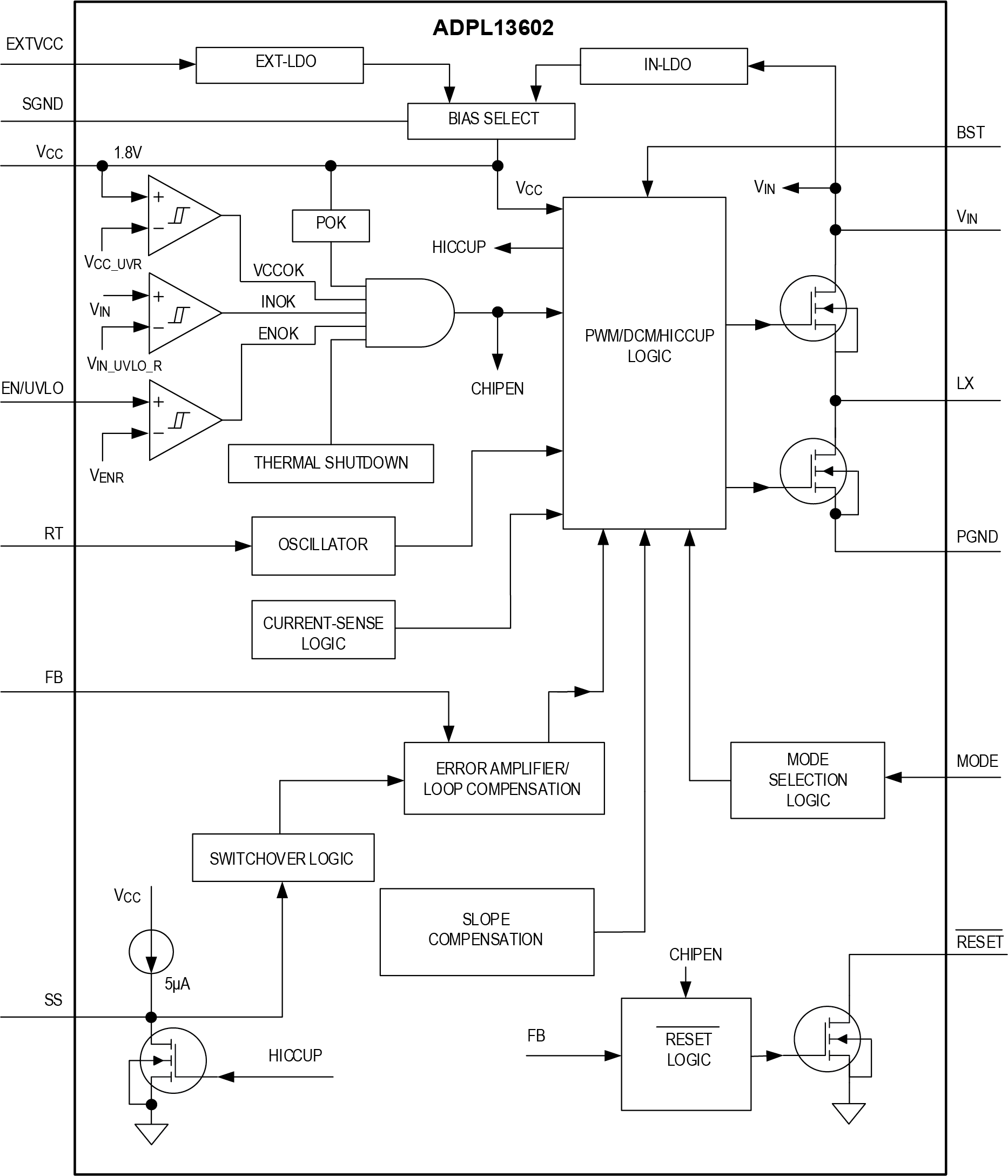

The ADPL13602 features a peak-current-mode control architecture. The ADPL13602 can be operated in forced pulse-width modulation (PWM) or discontinuousconduction mode (DCM) to enable high efficiency under full-load and light-load conditions. The ADPL13602 offers a low minimum on-time that allows high switching frequencies and a smaller solution size.

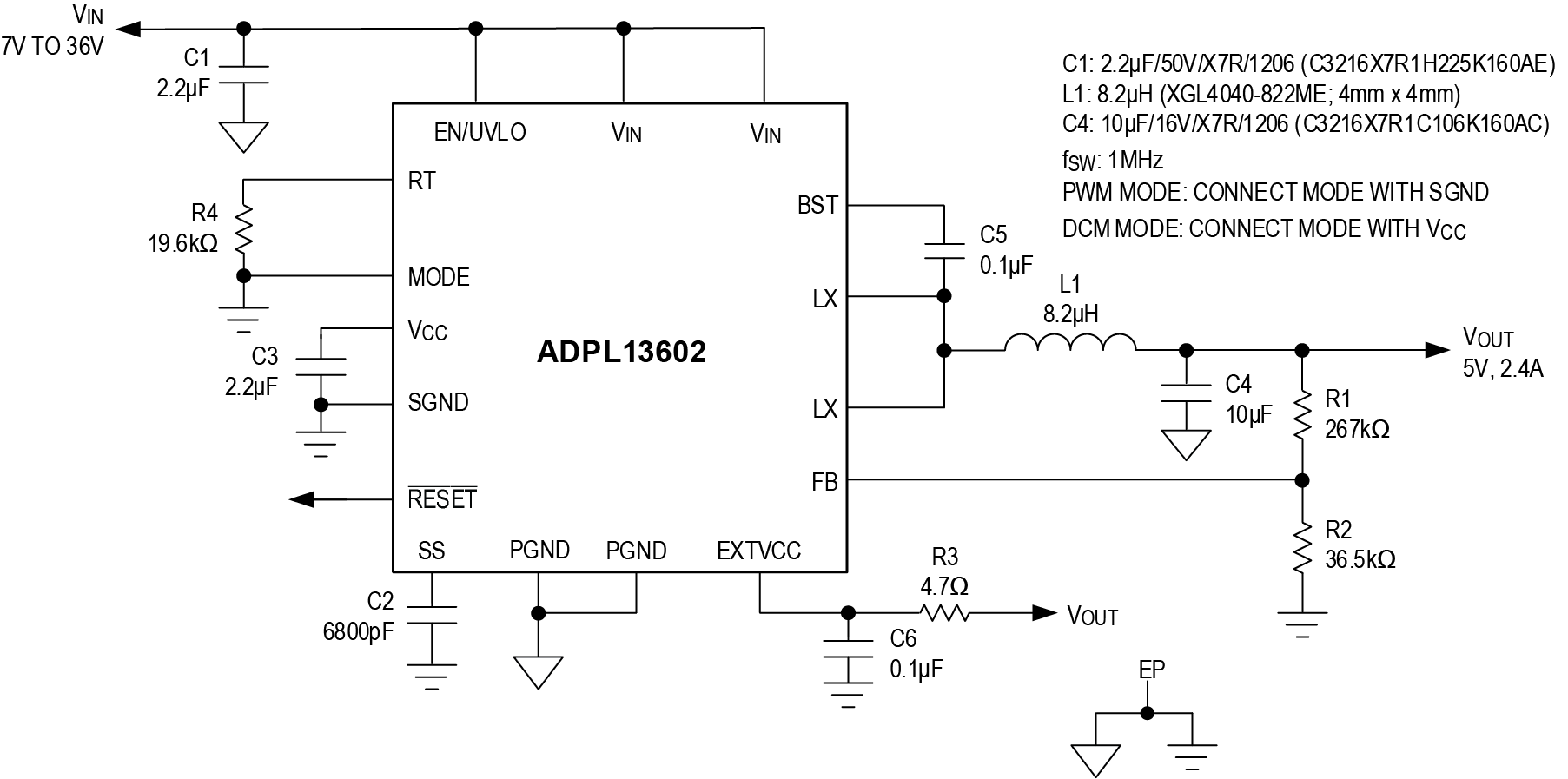

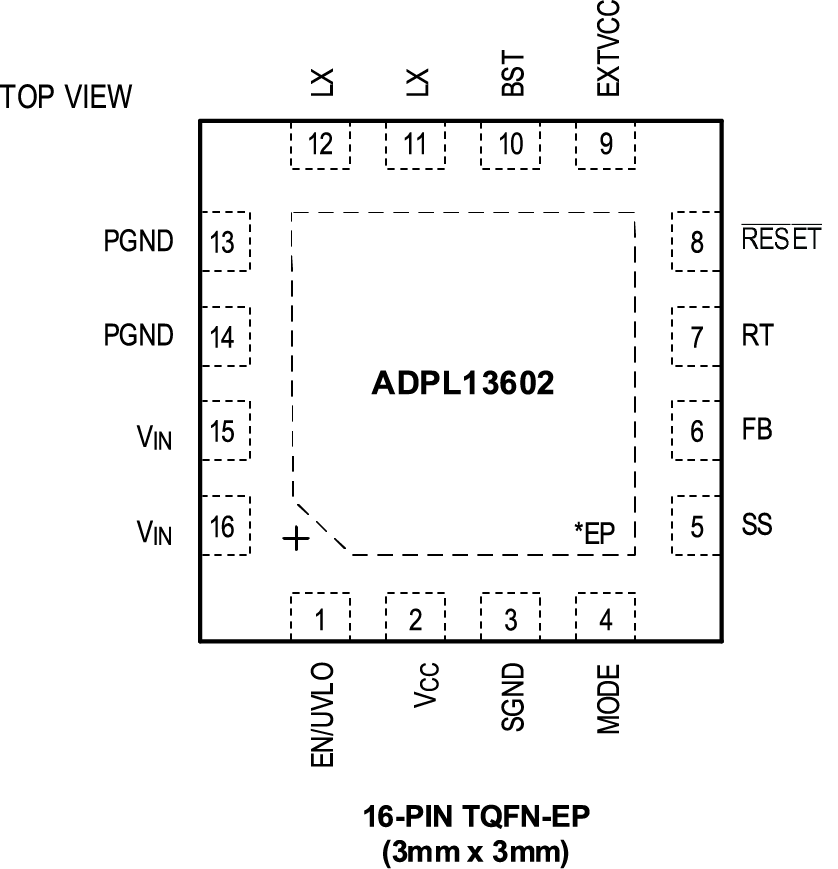

The feedback-voltage regulation accuracy over -40°C to +125°C is ±1.5%. The device is available in a 16-pin (3mm x 3mm) TQFN-EP package. Simulation models are available.

APPLICATIONS

Industrial Control Power Supplies
 Distributed Supply Regulation
 Wall Transformer Regulation
 High-Voltage, Single-Board Systems
