Analog Devices MAX20011G Product Info

• High Efficiency DC-DC Converter
• Up to 16A Peak Output Current
  • MAX20011E: I_MAX = 8A
  • MAX20011F: I_MAX = 12A
  • MAX20011G: I_MAX = 16A
• Differential Remote Voltage Sensing
• 3.0V to 5.5V Operating Supply Voltage
• I²C-Controlled Output Voltage:
  • 0.5V to 1.275V in 6.25mV Steps
• Excellent Load-Transient Performance
• Programmable Compensation
• 2.2MHz or 1.1MHz Operation
• ±1.5% Output Voltage Accuracy (Full Range)
• ±1% Output Voltage Accuracy (Fixed 1V)
• Active-Low RESET Output
• Current-Mode, Forced PWM Operation
• ASIL D Compliant:
  • Redundant Reference
  • BIST Diagnostics
  • PEC on I²C
  • Programmable OV/UV with ±1% Accuracy
• Overtemperature and Short-Circuit Protection
• 3.5mm x 4mm, 17-Pin Side-Wettable FC2QFN
• -40°C to +125°C Grade 1 Automotive Temperature Range

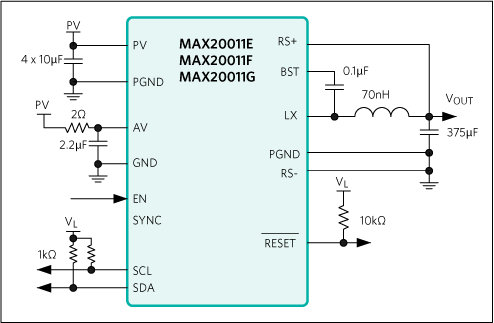

The MAX20011E/MAX20011F/MAX20011G are high-efficiency, synchronous step-down converters that operate with a 3.0V to 5.5V input voltage range and supply a 0.5V to 1.275V output voltage range. The wide input/output voltage range and ability to provide up to 16A peak output current make these devices ideal for on-board point-of-load and post-regulation applications. The MAX20011E/MAX20011F/MAX20011G achieve ±1.5% output error over load, line, and temperature ranges.

The MAX20011E/MAX20011F/MAX20011G feature a 2.2MHz fixed-frequency PWM mode for better noise immunity and load-transient response. The 2.2MHz frequency operation allows for the use of all ceramic capacitors and minimizes external components. The spread-spectrum frequency modulation option minimizes radiated electromagnetic emissions. Integrated low R_DS(on) switches improve efficiency at heavy loads and make layout simpler than discrete solutions.

The MAX20011E/MAX20011F/MAX20011G are offered with factory-preset output voltage. The I²C interface supports dynamic voltage adjustment with programmable slew rates. Other features include programmable soft-start, overcurrent, and overtemperature protections.

Applications

• Automotive ADAS Systems
• SoC Core Power
