LT1303

PRODUCTION

Micropower High Efficiency DC/DC Converters with Low-Battery Detector Adjustable and Fixed 5V

Analog Devices LT1303 Product Info

10 February 2026 7

Features

5V at 200mA from a 2V Input
Supply Voltage As Low As 1.8V

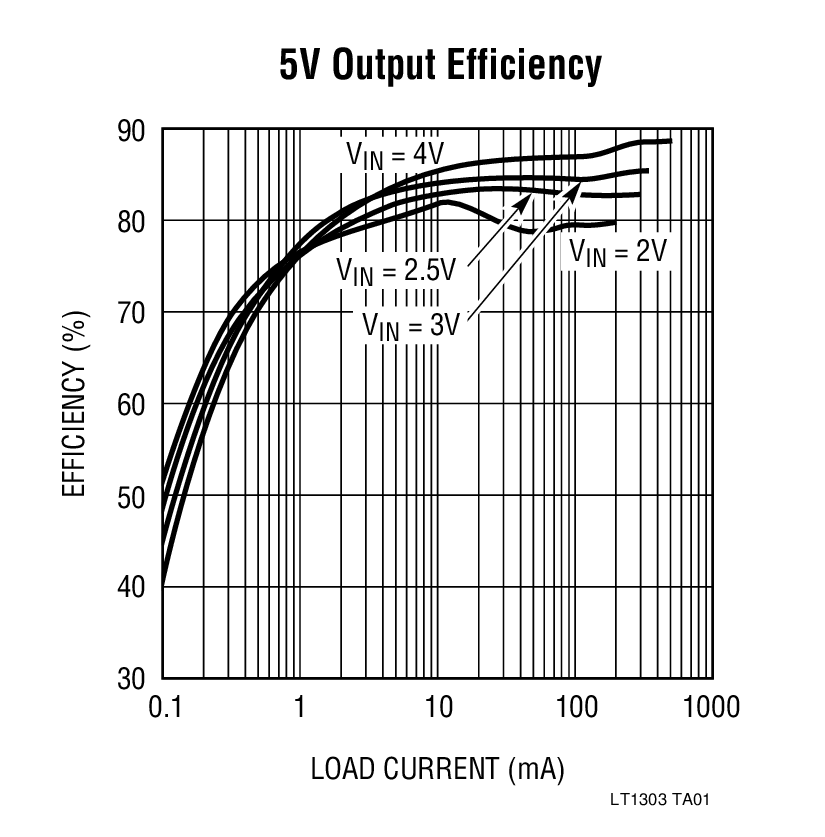

Up to 88% Efficiency
120µA Quiescent Current
Low-Battery Detector

Low V_CESAT Switch: 170mV at 1A Typ
Uses Inexpensive Surface Mount Inductors

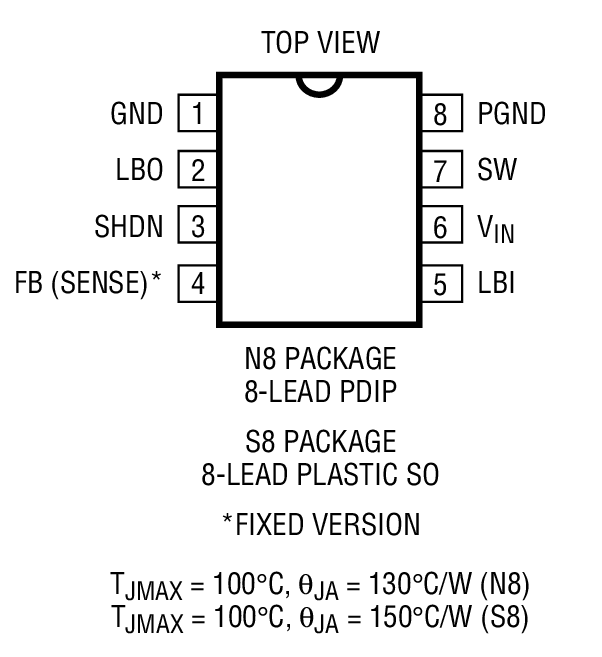

8-Lead PDIP or SO Package

Part details & applications

The LT1303/LT1303-5 are micropower step-up high efficiency DC/DC converters using Burst Mode^™ operation. They are ideal for use in small, low-voltage battery-operated systems. The LT1303-5 accepts an input voltage between 1.8V and 5V and converts it to a regulated 5V. The LT1303 is an adjustable version that can supply an output voltage up to 25V. Quiescent current is only 120µA from the battery and the shutdown pin further reduces current to 10µA. The low-battery detector provides an open-collector output that goes low when the input voltage drops below a preset level. The on-chip NPN power switch has a low 170mV saturation voltage at a switch current of 1A. The LT1303/1303-5 are available in 8-lead PDIP or SO packages, easing board space requirements.

For higher output current, please see the LT1305 or LT1302.

Applications

EL Panel Drivers

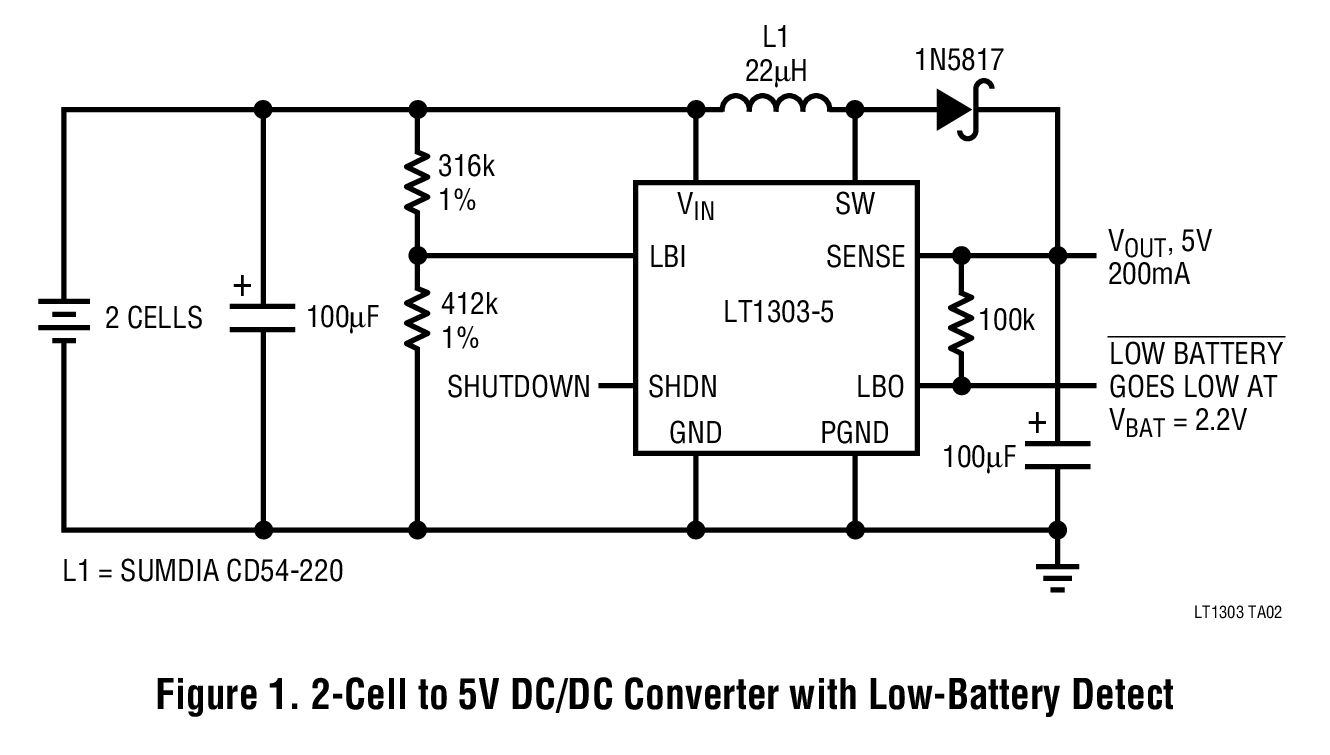

2-Cell and 3-Cell to 5V Conversion
Palmtop Computers
Portable Instruments
Bar-Code Scanners
Wireless Systems
